PP4051 CMD PP4051 CMD, 96141012801, 2007-04

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PP4051 CMD, 96141012801, 2007-04

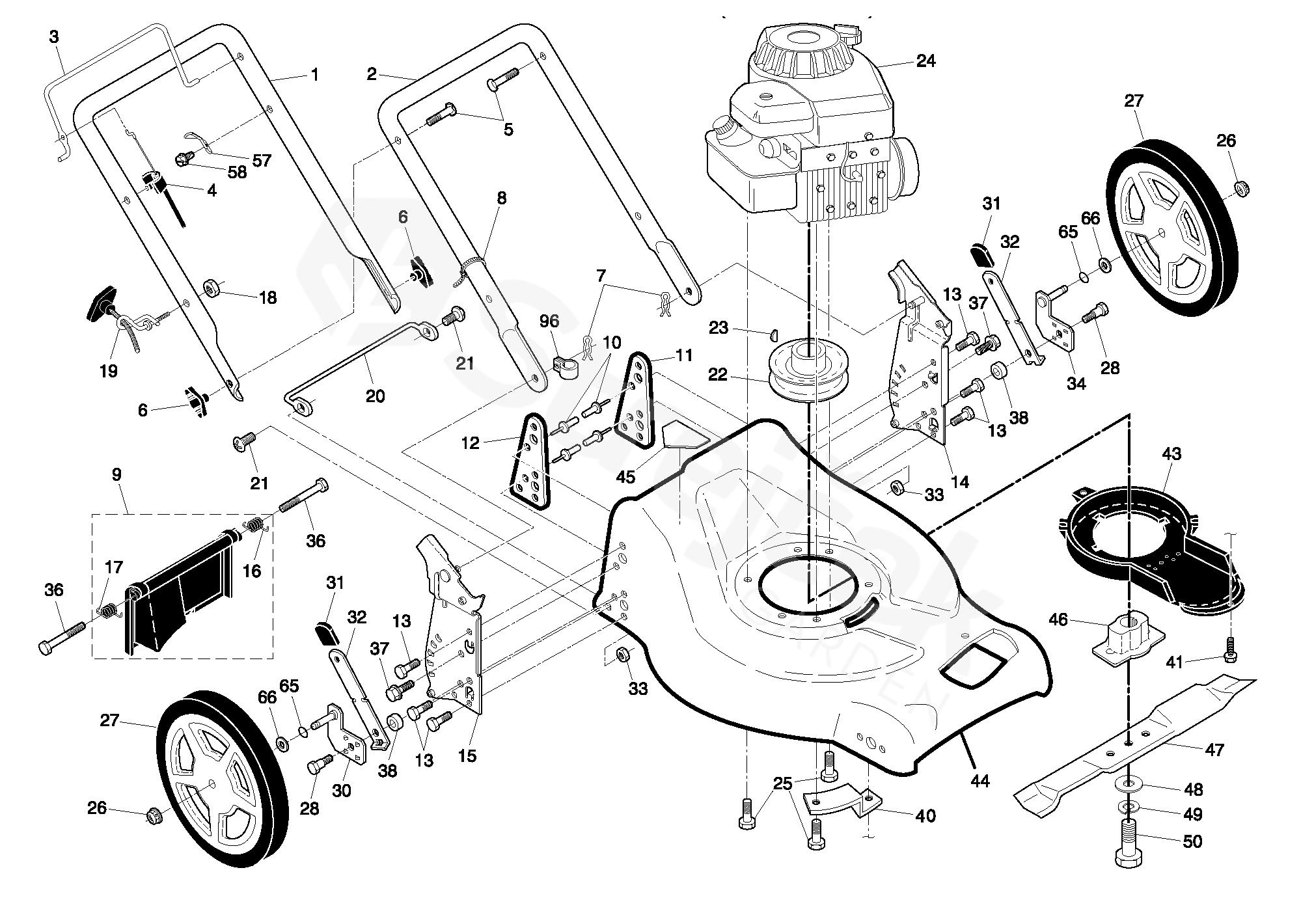

1	HANDLE	532198459
2	HANDLE	532153605
3	CONTROL	532198464
4	CABLE	532183567
5	HANDLE BOLT	532191574
6	KNOB	532191938
7	PIN RETAINING SCREW	532051793
8	HOOP	532066426
9	REAR DOOR KIT (INCL. KE (Includes Key Numbers 16 and 17)	532180479
10	NÝT	532128415
11	SUPPORT BRACKET LH	532182538
12	SUPPORT BRACKET RH	532182539
13	SCREW	817060410
14	HANDLE BRACKET	532182543
15	HANDLE BRACKET	532182545
16	SPRING	532180071
17	SPRING	532180072
18	MATICE	532132004
19	GUIDE	532194788
20	FOOT GUARD	532179205
21	SCREW	532054583
22	PULLEY	532084596
23	KEY	532087677
25	BOLT	532150406
26	MATICE	532145212
27	WHEEL	532403122
28	BOLT	532160828
30	BRACKET	532402571
31	KNOB	532087877
32	SELECT*RPL.PAR 532175060004	532190157
33	BRACKET	873800500
34	BRACKET	532402572
36	BOLT	532184193
37	SCREW	532150078
38	BOLT	819112206
40	MOUNTING BRACKET, DEBRI	532190939
41	SCREW	532192325
43	COVER	532188784
44	HOUSING (Includes Key Numbers 10, 11, 12 and 45)	532400705
45	DECAL	532182166
46	BLADE ADAPTER	532180069
47	MOWER BLADE	532199377
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
57	DESKA	532125162
58	SCREW	532750634
65	O-KROUŽEK	532197480
66	PODLOŽKA	532088348
96	CLIP	532197991
	OPERATOR´S MANUAL	532404692
