P4056 SM P4056 SM, 96111000603, 2006-04

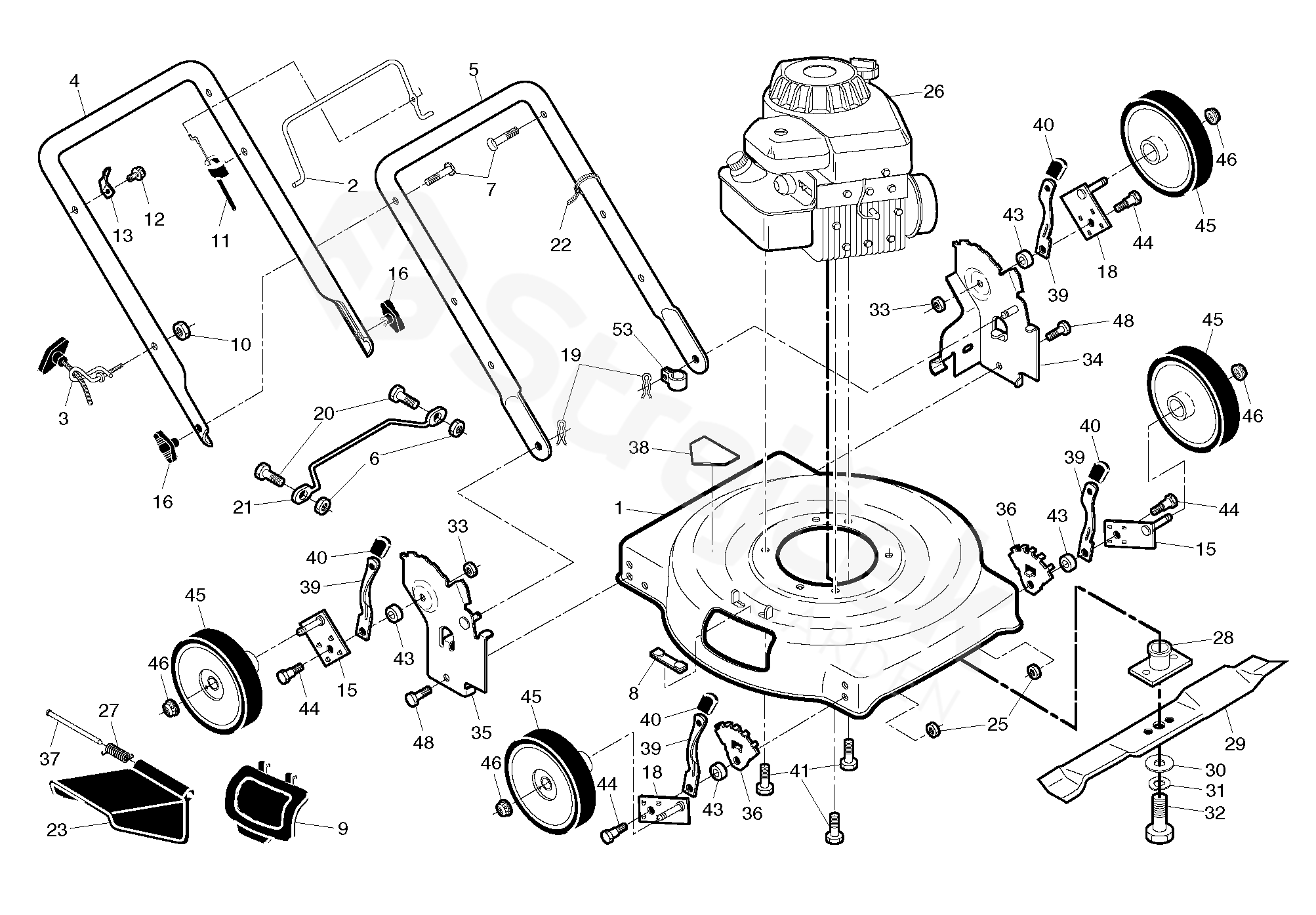

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For P4056 SM, 96111000603, 2006-04

1	DECK SHELL	532400726
2	BAIL	532195574
3	GUIDE	532194788
4	HANDLE	532195547
5	HANDLE	532174291
6	NUT	532069180
7	HANDLE BOLT	532191574
8	CLIP	532161622
9	PLATE, MULCHER	532160830
10	MATICE	532132004
11	CABLE	532158152
12	SCREW	532750634
13	BRACKET	532125203
15	AXLE ARM ASSEMBLY, LF	532189277
16	KNOB	532191856
18	AXLE ARM ASSEMBLY, RF	532189278
19	PIN RETAINING SCREW	532051793
20	SCREW	532085825
21	PROTECTOR	532154147
22	HOOP	532066426
23	DISCHARGE GUARD	532160831
25	NUT	532166785
26	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 10A902-2007-B1 FOR SERVICE & PARTS 1-800-233-3723	000000000
27	TORSION SPRING	532193436
28	ADAPTER	532193825
29	MOWER BLADE	532199379
30	PODLOŽKA	532851074
31	PODLOŽKA	532850263
32	SCREW	532851084
33	MATICE	873930500
34	BRACKET LH	532403456
35	BRACKET RH	532403457
36	ADJUSTING BRACKET	532165704
37	HINGE	532160833
38	DECAL	532182166
39	SPRING	532168599
40	KNOB	532087877
41	BOLT	532150406
43	WASHER	532183901
44	BOLT	532160828
45	WHEEL	532406149
46	MATICE	532083923
48	SCREW	817600406
53	CLIP	532197991
	LABEL WARNING NOT SHOWN	532182191
