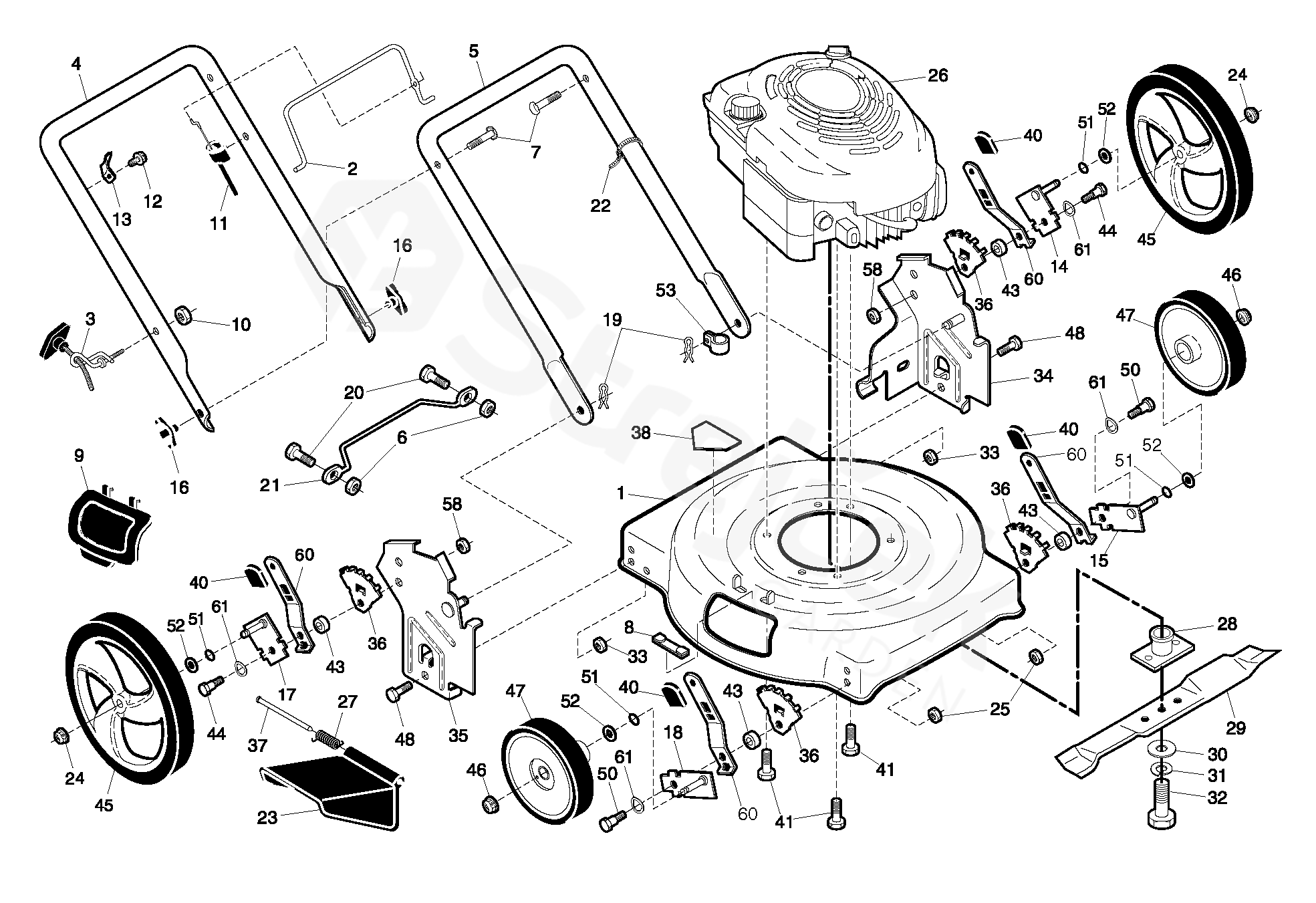

Spare parts - Partlist - P5056 SM P5056 SM, 96111002001, 2007-04 - PRODUCT COMPLETE

Everything for your machines

P5056 SM P5056 SM, 96111002001, 2007-04

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For P5056 SM, 96111002001, 2007-04

1	DECK SHELL (Includes Key Number 38)	532400726
2	BAIL	532195574
3	GUIDE	532194788
4	HANDLE	532195547
5	HANDLE	532174291
6	NUT	532069180
7	HANDLE BOLT	532191574
8	CLIP	532161622
9	PLATE, MULCHER	532160830
10	MATICE	532132004
11	CABLE	532158152
12	SCREW	532750634
13	BRACKET	532125203
14	AXLE	532410600
15	AXLE	532406689
16	KNOB	532191938
17	AXLE	532410601
18	AXLE	532406690
19	PIN RETAINING SCREW	532051793
20	SCREW	532085825
21	PROTECTOR	532154147
22	HOOP	532066426
23	DISCHARGE GUARD	532160831
24	MATICE	532145212
25	NUT	532166785
27	TORSION SPRING	532408585
28	ADAPTER	532193707
29	MOWER BLADE	532199379
30	PODLOŽKA	532851074
31	PODLOŽKA	532850263
32	SCREW	532851084
33	BRACKET	873800500
34	BRACKET	532403508
35	BRACKET	532403507
36	WHEEL ADJ BRACKET FRONT	532410594
37	HINGE	532160833
38	DECAL	532182166
39	SPRING	532410595
40	KNOB	532087877
41	BOLT	532150406
43	SPACER	532401629
44	BOLT	532401638
45	WHEEL	532403509
46	MATICE	532409148
47	WHEEL	532403495
48	BOLT	874760514
51	O-KROUŽEK	532197480
52	PODLOŽKA	532088348
53	CLIP	532197991
58	BOLT	532751153
60	SPRING	532406428
61	WASHER	532401630
	LABEL WARNING	532182191
