Spare parts > Partner > LAWN MOWERS: CONSUMER WALK-BEHINDS > P56-190DWA P56-190DWA, 96141020401, 2009-12 > DRIVE
Back to

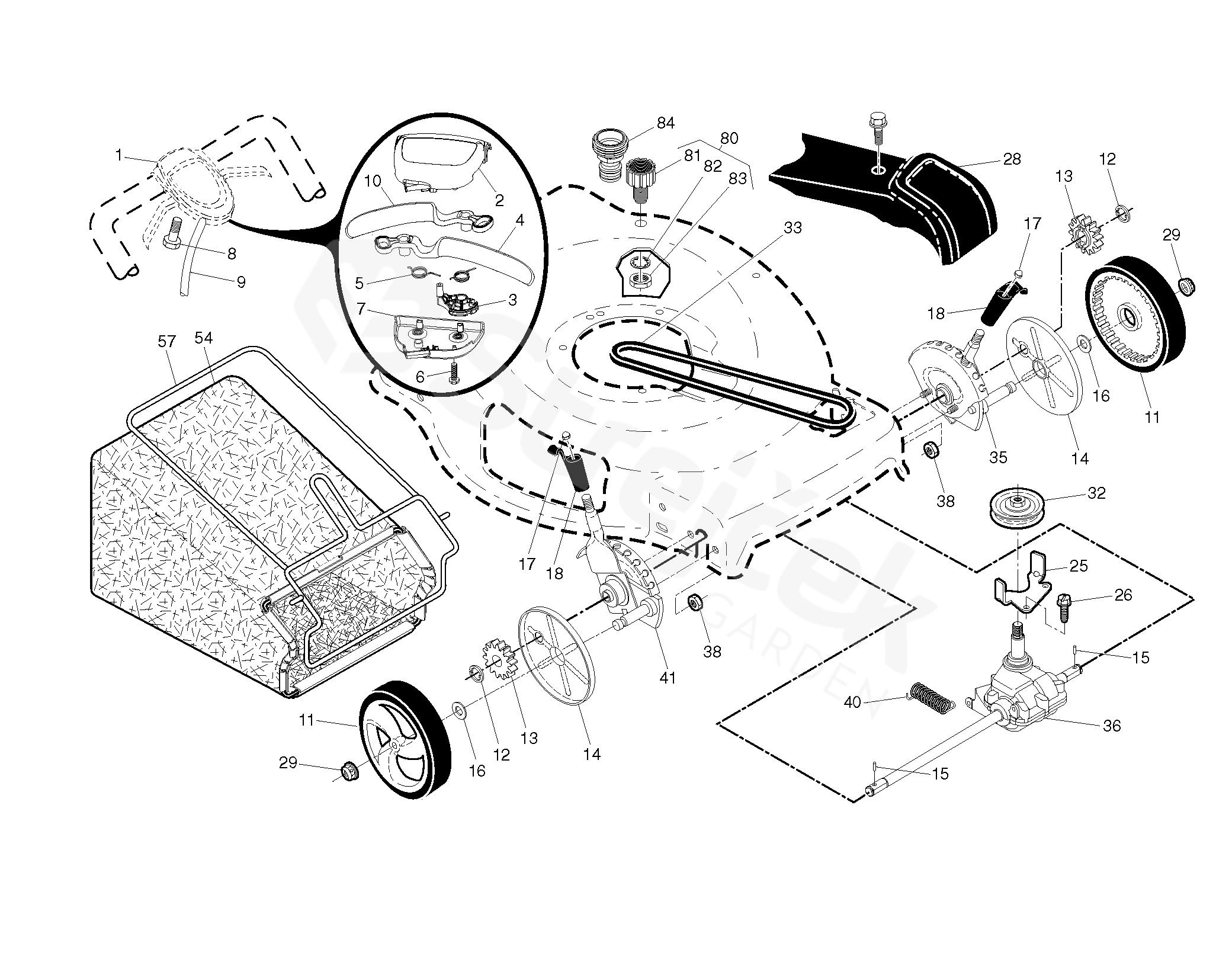

DRIVE
P56-190DWA P56-190DWA, 96141020401, 2009-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P56-190DWA, 96141020401, 2009-12
1 DRIVE CONTROL 532427434
2 COVER
UPPER 		532424631
3 BRACKET 532420378
4 LEVER
LH 		532426135
5 SPRING 532420381
6 SCREW 532181698
7 COVER
LOWER 		532426134
8 SCREW 532178848
9 CABLE 532427426
10 LEVER
RH 		532426136
11 WHEEL 532402936
12 E-CLIP 812000058
13 PASTOREK 532403849
14 DUST COVER 532189403
15 PAWL, DRIVE 532404845
16 PODLOŽKA 532067725
17 NUT 532413808
18 KNOB 532426212
25 BRACKET 532431711
26 SCREW 532163409
28 COVER
INCLUDES SCREW & PALNUT 		532432674
29 MATICE 532409148
32 PULLEY 532194018
33 V-BELT 532426609
35 ADJUSTER
LH 		532427469
36 GEARBOX ASSY 532424657
38 MATICE 532191730
40 PRUŽINA 532406558
41 ADJUSTER
RH 		532427468
54 GRASSBAG 532422505
57 GRASSBAG 532419951
80 WATER CONNECTOR 532421114
81 HOSE FITTING 532419735
82 LOCKWASHER 532415585
83 LOCKING NUT 532415586
84 ADAPTER 532432066
