Spare parts > Partner > LAWN MOWERS: CONSUMER WALK-BEHINDS > P56-190DWA P56-190DWA, 96141020400, 2009-06 > DRIVE
Back to

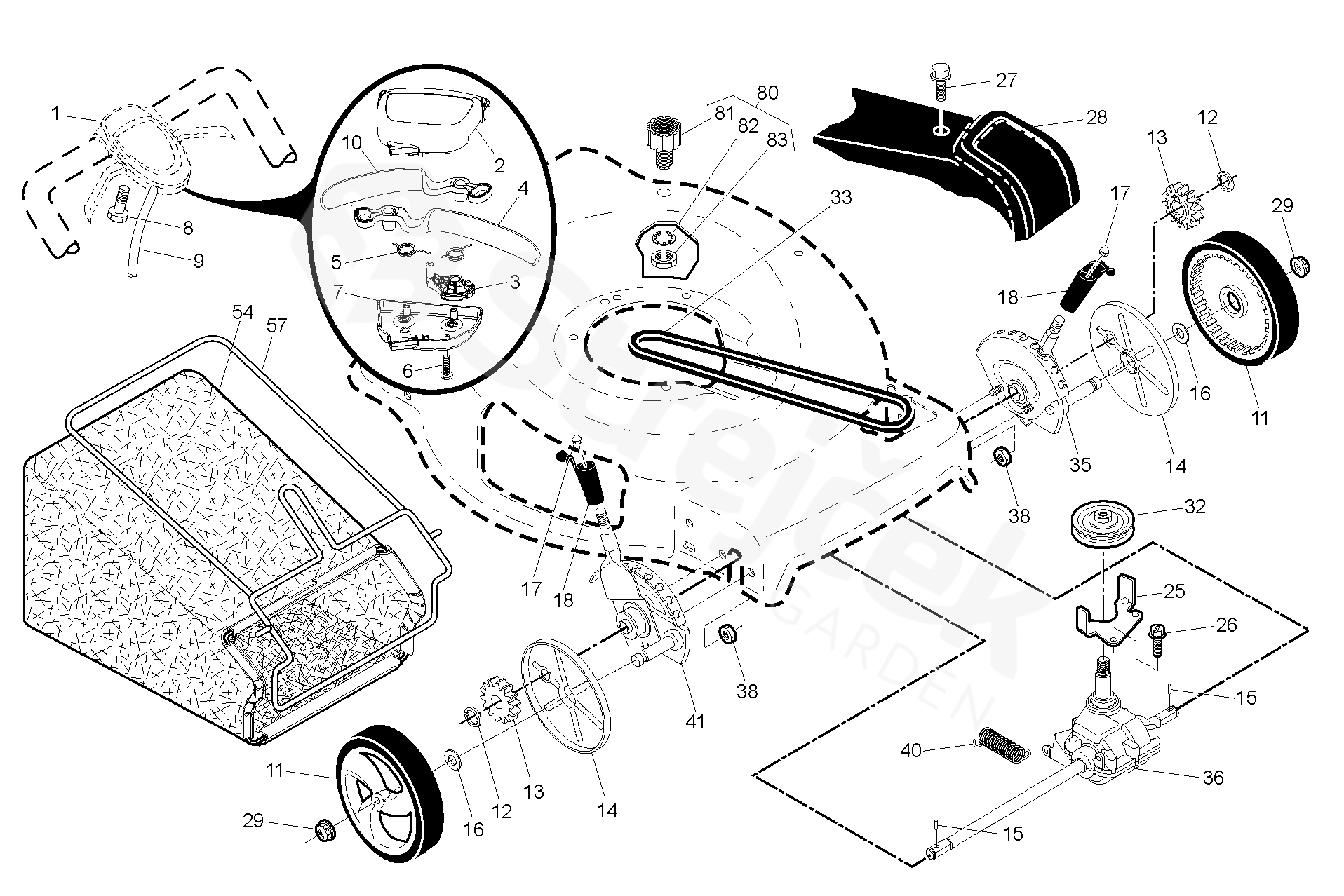

DRIVE
P56-190DWA P56-190DWA, 96141020400, 2009-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P56-190DWA, 96141020400, 2009-06
1 DRIVE CONTROL
(Includes Cable) 		532427434
2 COVER 532424631
3 BRACKET 532420378
4 LEVER 532426135
5 SPRING 532420381
6 SCREW 532181698
7 COVER 532426134
8 SCREW 532178848
9 CABLE 532427426
10 LEVER 532426136
11 WHEEL 532402936
12 E-CLIP 812000058
13 PASTOREK 532403849
14 DUST COVER 532189403
15 PAWL, DRIVE 532404845
16 PODLOŽKA 532067725
17 NUT 532413808
18 KNOB 532426212
25 BELT GUIDE 532426126
26 SCREW 532163409
27 PAN HEAD TAPPING SCREW 532175262
28 DRIVE COVER 532421086
29 MATICE 532409148
32 PULLEY 532194018
33 V-BELT 532426609
35 ADJUSTER
(Includes Black Knob and Pushnut) 		532427469
36 GEARBOX ASSY 532424657
38 MATICE 532191730
40 PRUŽINA 532406558
41 ADJUSTER
(Includes Black Knob and Pushnut) 		532427468
54 GRASSBAG 532422505
57 GRASSBAG 532419951
80 WATER CONNECTOR 532421114
81 HOSE FITTING 532419735
82 LOCKWASHER 532415585
83 LOCKING NUT 532415586
