Spare parts - Partlist - P56-190DWA P56-190DWA, 96141020400, 2009-06 - FRAME & ENGINE

Everything for your machines

P56-190DWA P56-190DWA, 96141020400, 2009-06

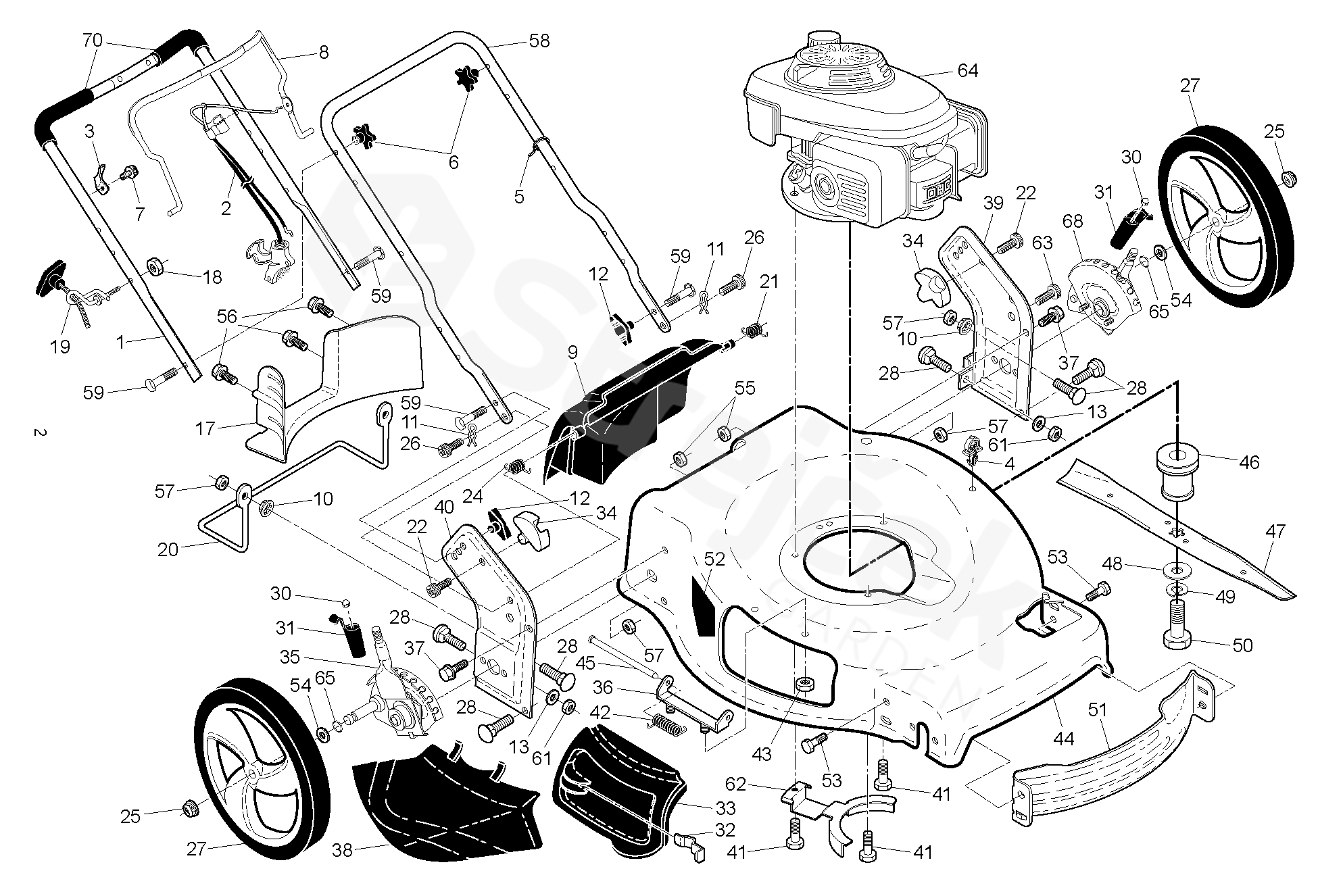

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For P56-190DWA, 96141020400, 2009-06

1	HANDLE HALF (Includes Foam Grip)	532184576
2	CABLE	532425079
3	BRACKET	532125203
4	CLIP	532145006
5	HOOP	532066426
6	KNOB	532182398
7	SCREW	532750634
8	OPERATOR-PRESENCE CONTROL	532426505
9	DOOR ASY	532421084
10	WASHER	532423063
11	HAIR PIN COTTER	532425575
12	KNOB	532191938
13	WASHER	819131610
17	BAFFLE	532427307
18	MATICE	532132004
19	GUIDE	532194788
20	GUARD	532422467
21	SPRING	532419949
22	SCREW	532141841
24	SPRING	532419948
25	NUT	532409149
26	SCREW	532419945
27	WHEEL	532403509
28	BOLT	872250505
30	NUT	532413808
31	KNOB	532426211
32	LATCH	532419944
33	MULCH DOOR	532423356
34	PIVOT	532426125
35	ADJUSTER (Includes Black Knob and Pushnut)	532427470
36	HINGE	532175735
37	SCREW	817000512
38	DEFLECTOR	532426129
39	HANDLE BRACKET	532426061
40	BRACKET	532426062
41	BOLT	532150406
42	HINGE	532193000
43	MATICE	532191730
44	KIT	532424521
45	ROD	532175650
46	ADAPTER	532421248
47	MOWER BLADE	532199379
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
51	BAFFLE	532419943
52	DECAL	532404763
53	SCREW	817060408
54	PODLOŽKA	532088348
55	MATICE	532191730
56	SCREW	817411312
57	MATICE	532155377
58	HANDLE HALF	532426072
59	HANDLE BOLT	532191574
61	MATICE	873930500
62	BELT GUARD	532425711
63	SCREW	532178848
64	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 HONDA GVC190-S3H2	000000000
65	O-KROUŽEK	532197480
68	ADJUSTER (Includes Black Knob and Pushnut)	532427471
70	HANDLE	532182748
