TRACTORS/RIDE MOWERS
>
P66-950SMD P66-950SMD, 96021001300, 2010-12
>
CHASSIS & ENCLOSURES
Back to
P66-950SMD
P66-950SMD, 96021001300, 2010-12
CHASSIS & ENCLOSURES
P66-950SMD
P66-950SMD, 96021001300, 2010-12

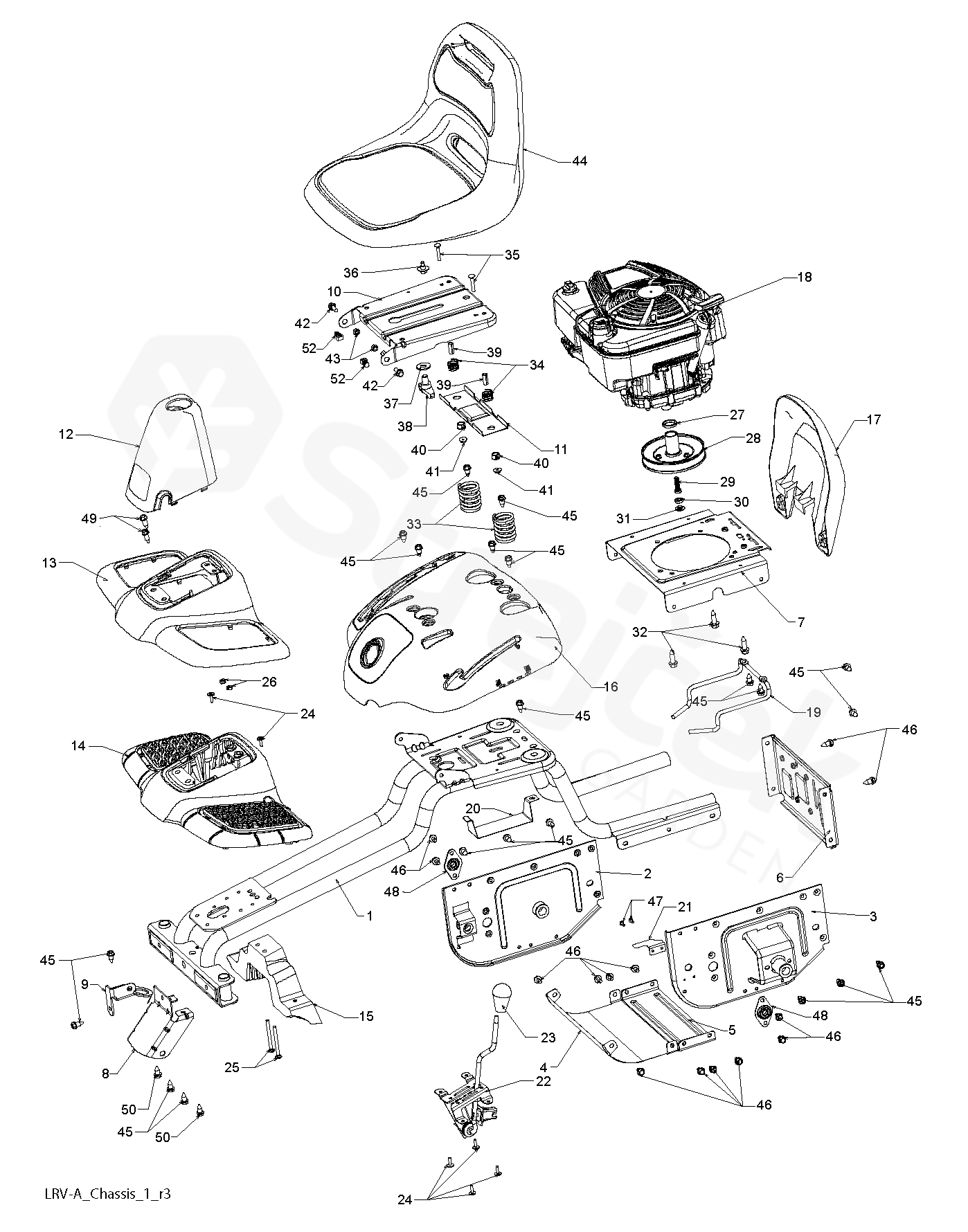

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
P66-950SMD, 96021001300, 2010-12
1
CHASSIS
532428048
2
AXLE
532428247
3
AXLE
532428244
4
SHIELD
532428346
5
BRACES
532428110
6
COVER
532428109
7
PLATE
532428040
8
BRACKET
532428576
9
BRACKET
532428856
10
BERCEAU DE SIEGE CONDUCTEUR
532195530
11
BRACKET
532174648
12
BOOT
532441299
13
COVER
532436913
14
FOOT PLATE
532428250
15
SUPPORT
532428249
16
CONTROL
532436911
17
GUARD
532428348
18
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
ENGINE MODEL NO. 14B907-1552-B1
000000000
19
KEEPER
532428986
20
BRACKET
532428046
21
LEVER SWITCH REAR
532429815
22
CLUTCH
532428826
23
BOULE DE LEVIER 149846
532149846
24
SCREW
532416358
25
BOLT
872140424
26
MATICE
873510400
27
SPACER
532430087
28
DISC
532428301
29
BOLT
532430817
30
BEARING
532430470
31
SPACER
532437322
32
BOLT
532150406
33
SPRING
532124181
34
SPRING
532121250
35
BOLT
872050412
36
BOLT
532127018
37
WASHER
819171912
38
WING NUT
532166369
39
SPACER
532134300
40
BUSHING
532121248
41
LOCKNUT
532123976
42
BOLT
532171852
43
BRACKET
873800500
44
SEAT
532441300
45
SCREW
817000512
46
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
47
SCREW
532086777
48
BEARING
532408981
49
SCREW
817060516
50
BOLT
532165492
52
CLIP
532145006
