Spare parts > Partner > TRIMMERS/EDGERS > Colibri II, Colibri II COLIBRI II, 952715459, 952715699, 2010-07 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE
Colibri II, Colibri II COLIBRI II, 952715459, 952715699, 2010-07

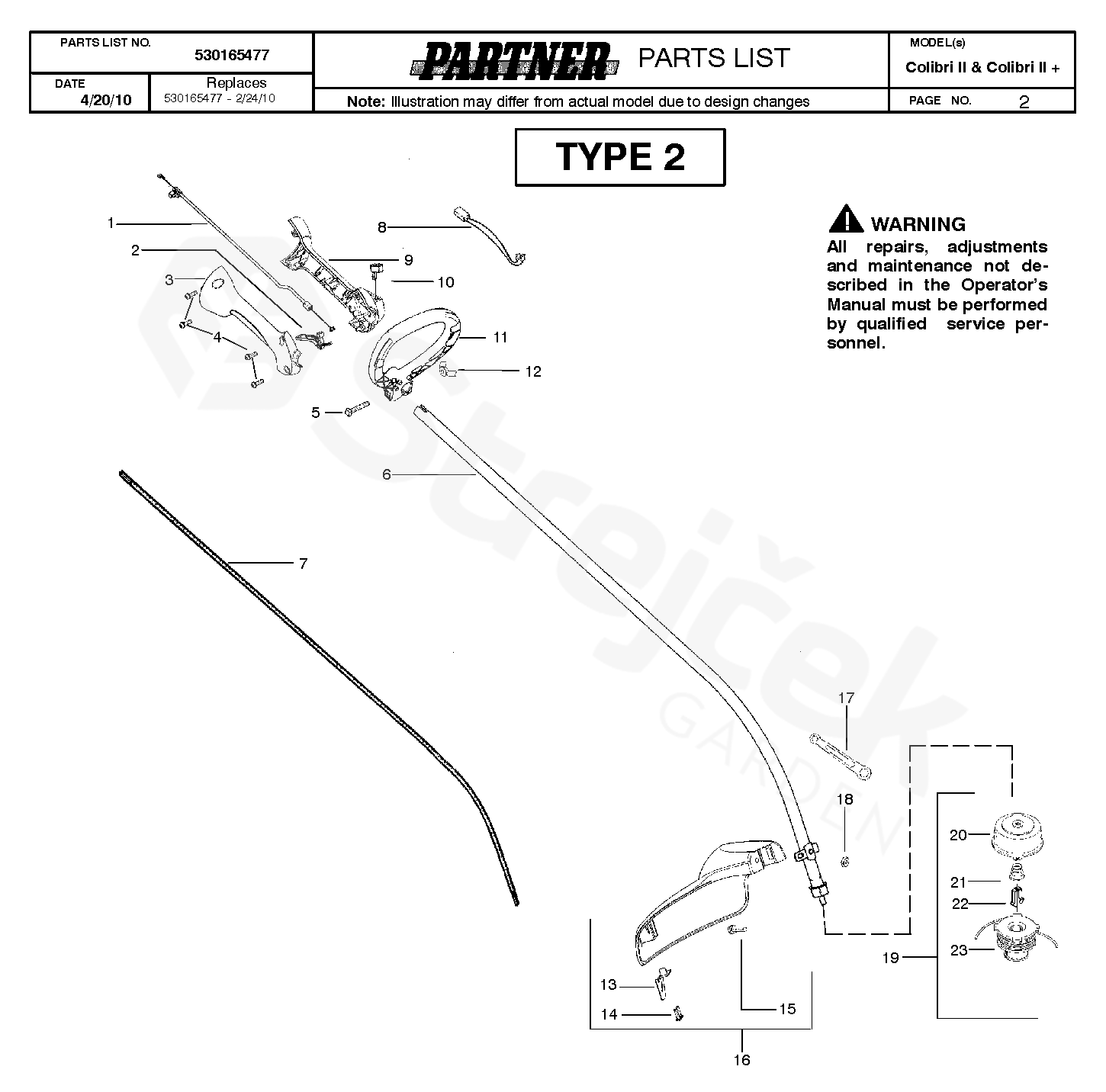

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COLIBRI II, 952715459, 952715699, 2010-07
1 ASSEMBLY 530057991
2 THROTTLE 530049107
3 THROTTLE HSG. (RIGHT) 530057582
4 SCREW 530015880
5 SCREW 530015821
6 SHAFT 545024804
7 DRIVE SHAFT 530096275
8 ASSY THROTTLE WIRE 530054183
9 HANDLE 530059952
10 SWITCH 530069572
11 HANDLE ASSY 530058580
12 KŘÍDLOVÁ MATICE 530016152
13 BLADE 530052287
14 SCREW 530015966
15 SCREW 530015820
16 KIT 530071972
17 WRENCH 530056401
18 MATICE Nut - Blower tube 530015197
19 TRIMMER HEAD 530095846
20 HUB 530095776
21 SPRING 530053241
22 RETAINER 530401957
23 SPOOL 530095845
