Spare parts > Partner > TRIMMERS/EDGERS > XS XS, 966711101, 2011-12 > SHAFT & HANDLE
Back to

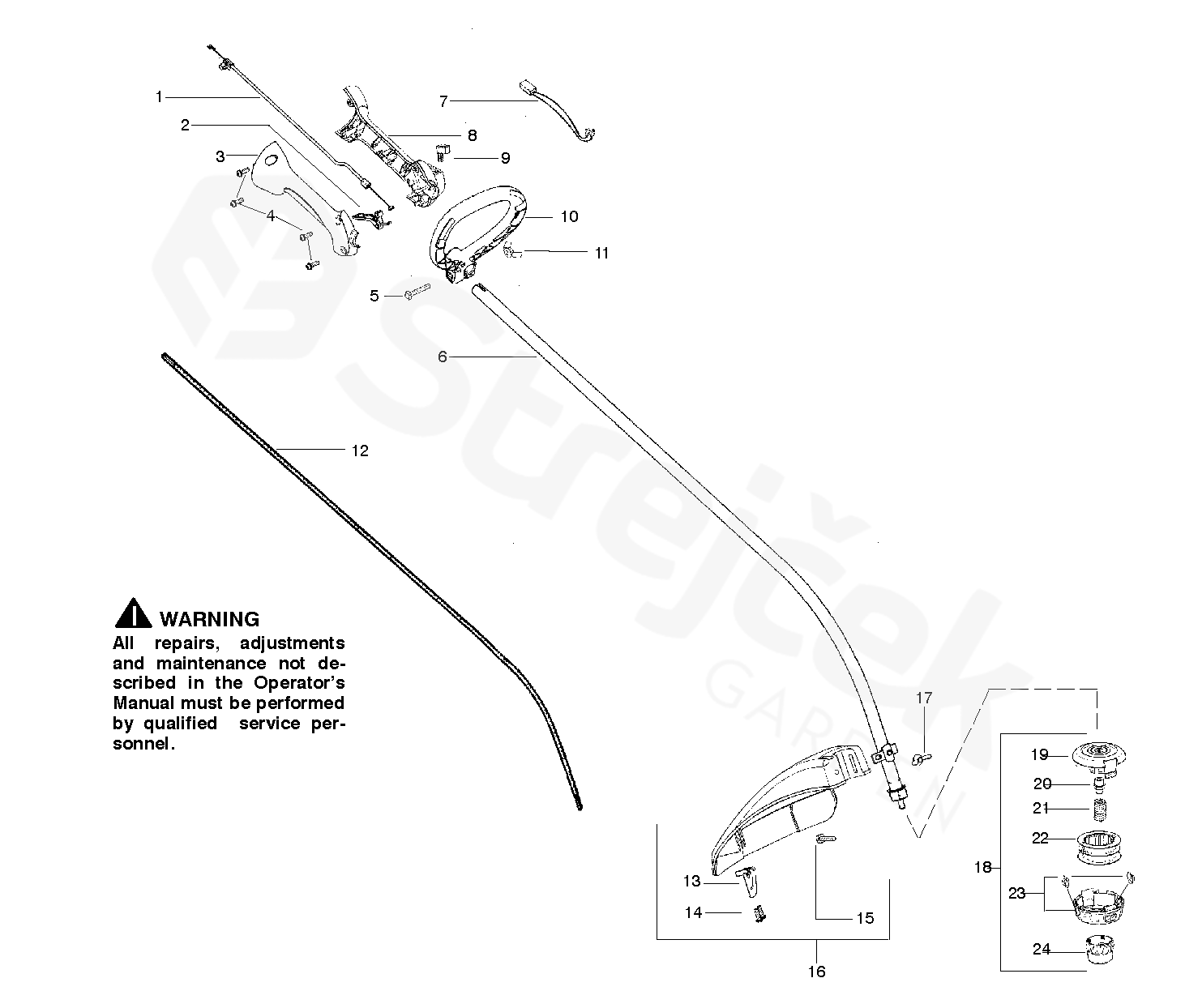

SHAFT & HANDLE
XS XS, 966711101, 2011-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For XS, 966711101, 2011-12
1 ASSEMBLY 530057991
2 THROTTLE 530049107
3 THROTTLE HSG. (RIGHT)
RIGHT 		530057582
4 SCREW 530015880
5 SCREW 530015821
6 KIT
SHAFT 		575887401
7 KIT 579571601
8 HANDLE
LEFT 		530059952
9 SWITCH 530069572
10 HANDLE ASSY 530058580
11 KŘÍDLOVÁ MATICE 530016152
12 DRIVE SHAFT 530096275
13 BLADE 530052287
14 SCREW 530016349
15 SCREW 530015820
16 KIT 530071972
17 KŘÍDLOVÁ MATICE 530016152
18 TRIMMER HEAD 537419214
19 HOUSING 537419303
20 ADAPTER 537419901
21 SPRING 537338801
22 SPOOL 545080801
23 EYELET
KIT - COVER AND EYELET 		545003365
24 KNOB 537419601
