Spare parts > Poulan > ACCESSORIES AND TOOLS > GTB48A GTB48A, 2002-01 > ACCESSORIES
Back to
ACCESSORIES
GTB48A GTB48A, 2002-01

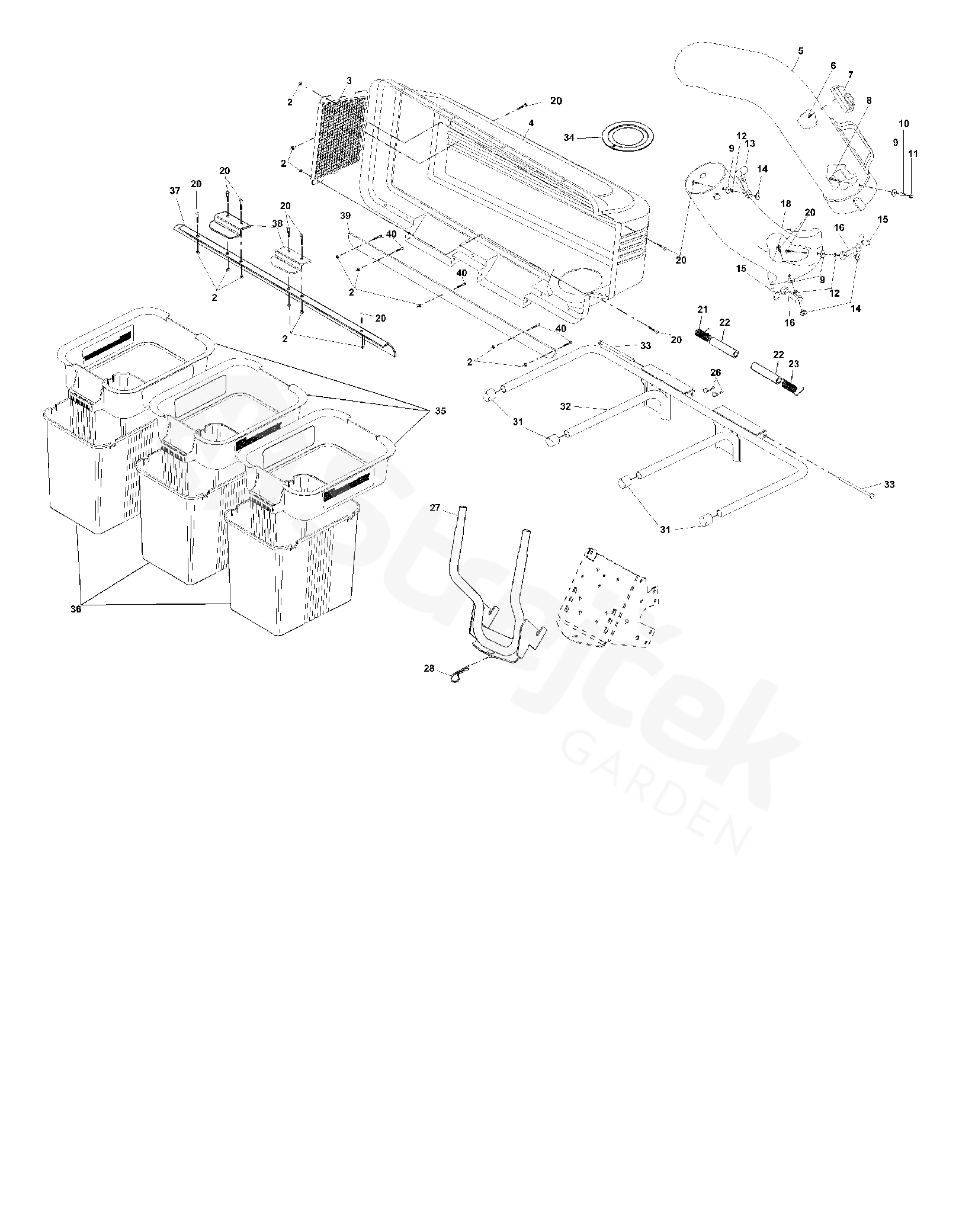

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GTB48A, 2002-01
2 NUT 532069180
3 GRILL 532127533
4 COVER 532139850
5 PIPE 532176741
6 SCREW
818021008 		818021008
7 INDICATOR 532130933
8 SCREW
532087175 		532087175
9 WASHER
819061216 		819061216
10 SPACER
532007206 		532007206
11 ACORN NUT
532060867 		532060867
12 WASHER
810071000 		810071000
13 LATCH, RUBBER
532109808 		532109808
14 NUT
532125004 		532125004
15 HOOK
532130760 		532130760
16 LATCH
532130759 		532130759
18 PIPE
532174345 		532174345
20 SCREW
871161010 		871161010
21 SPRING
532132796 		532132796
22 SPACER
532140809 		532140809
23 SPRING
532132983 		532132983
26 RETAINING RING
532124670 		532124670
27 BAGGER FRAME ASSEMBLY
532176987 		532176987
28 SPRING
532165898 		532165898
31 PLUG
532174083 		532174083
32 FRAME
532176990 		532176990
33 HINGE PIN 532192786
34 GASKET
532127534 		532127534
35 CONTAINER 532183286
36 BOTTOM
532129586 		532129586
37 SEALING
532134637 		532134637
38 LATCH
532130895 		532130895
39 STRIP, REINFORCEMENT 532186601
40 SCREW
871141008 		871141008
BAG
(Not included with bagger) 		532104419
