Spare parts > Poulan > CULTIVATORS/TILLERS > APRT5B APRT5B, 1995-01 > TINE SHIELD
Back to

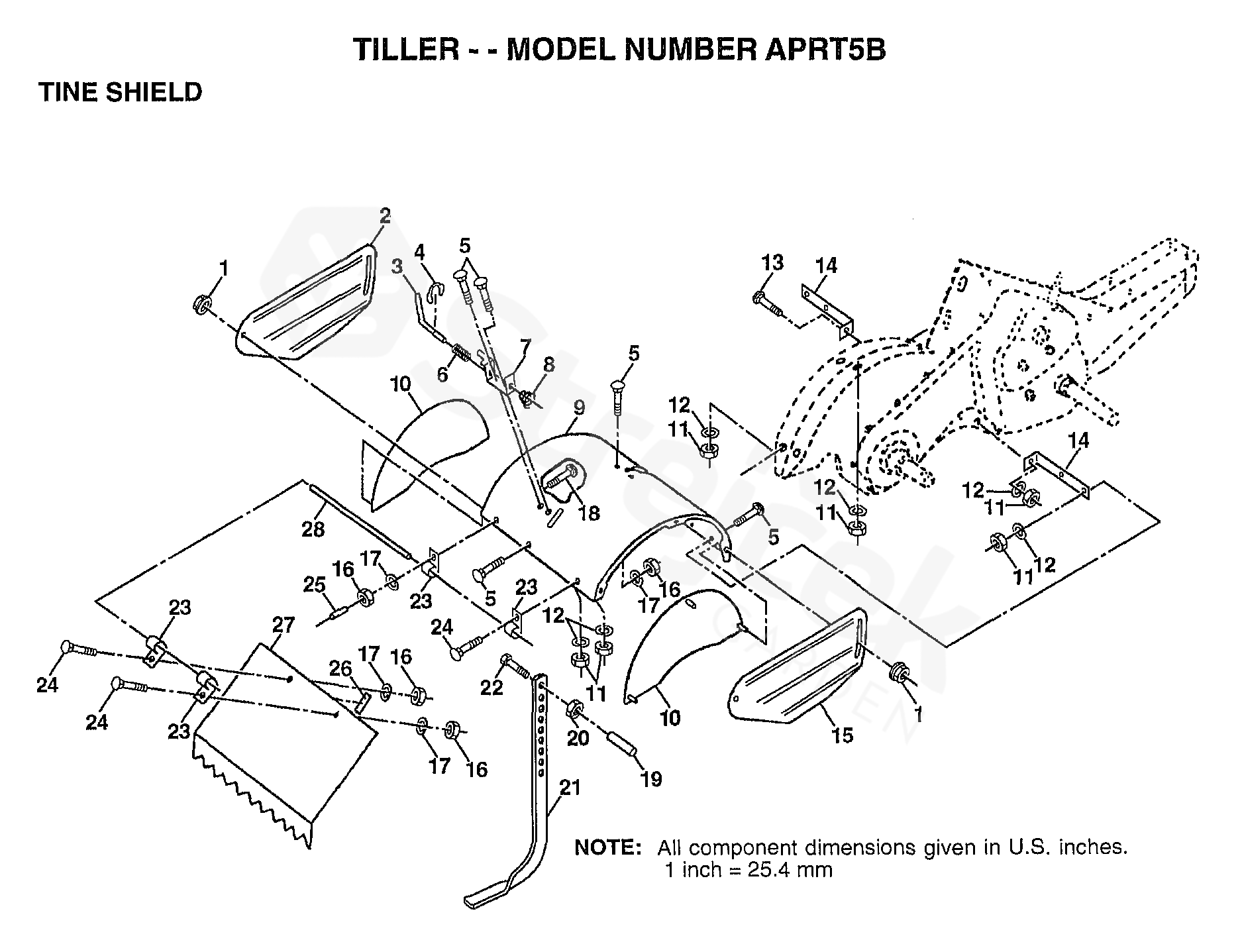

TINE SHIELD
APRT5B APRT5B, 1995-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For APRT5B, 1995-01
1 NUT 898000129
2 PROTECTOR 532104086
3 PIN RETAINING SCREW 532008393
4 RETAINING RING 812000036
5 BOLT 872140506
6 SPRING 532008394
7 HOLDER 532008392
8 SPRING 532109230
9 TINE SHIELD 532102326
10 BRACKET UPSTOP 532125132
11 NUT 873220500
12 PODLOŽKA 810040500
13 BOLT 872110510
14 BRACKET 532124343
15 PLATE 532104101
16 NUT 873220400
17 WASHER 810040400
18 BOLT 872040410
19 SLEEVE 532102701
20 NUT 873220600
21 TAIL-SKID 532144437
22 BOLT 874760632
23 HINGE 532004440
24 BOLT 872140404
25 CAP 532006712
26 PAD 532109227
27 SHIELD LEVELING 532102695
28 SHAFT 532120588
