PO5N22SH PO5N22SH, 96112003100, 2006-01

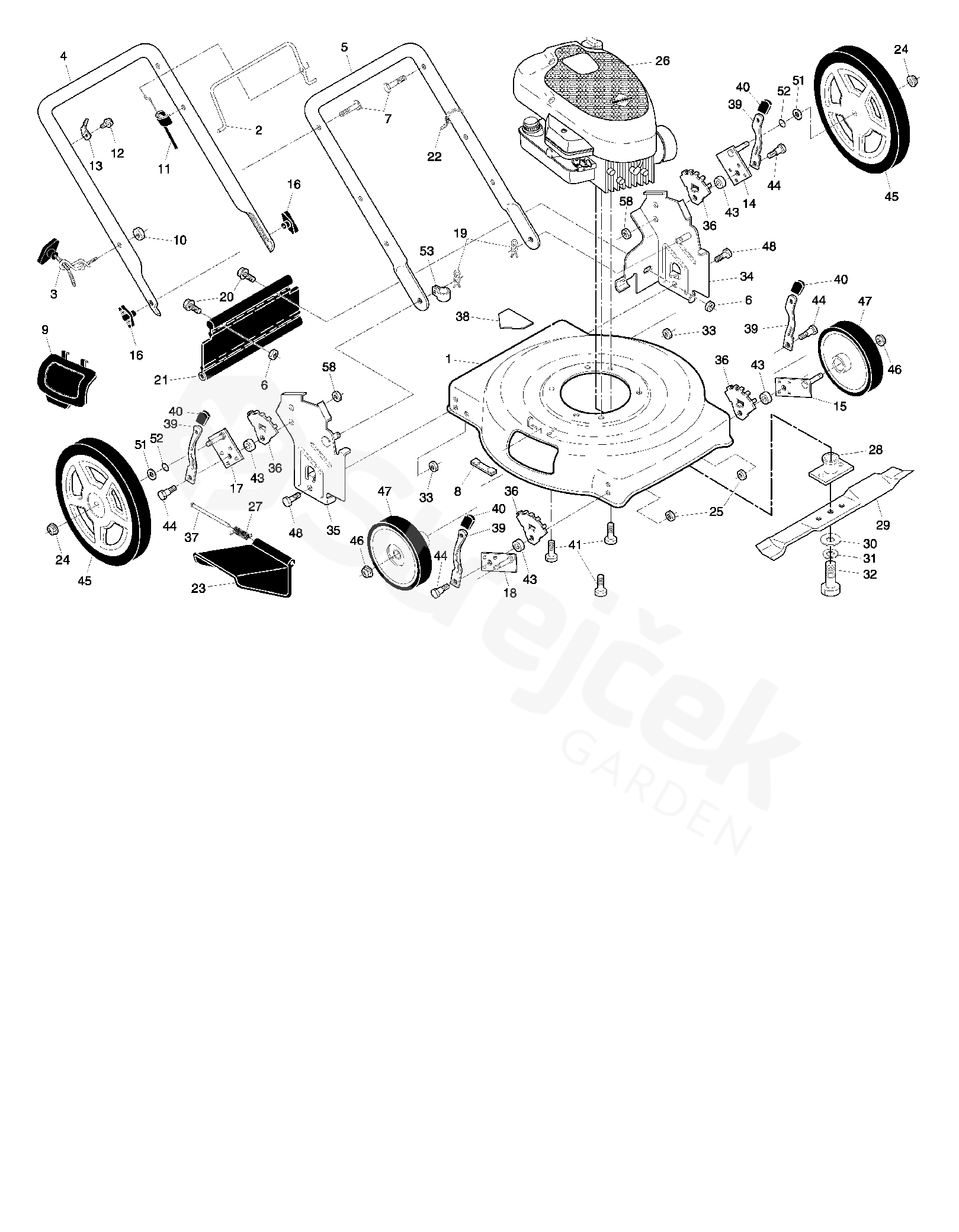

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PO5N22SH, 96112003100, 2006-01

1	LAWN MOWER HOUSING	532165187
2	BAIL	532195574
3	GUIDE	532194788
4	HANDLE	532195547
5	HANDLE	532174291
6	MATICE	873800400
7	HANDLE BOLT	532191574
8	CLIP	532161622
9	PLATE, MULCHER	532160830
10	MATICE	532132004
11	CABLE	532158152
12	SCREW	532750634
13	BRACKET	532125203
14	AXLE ARM ASSEMBLY (LR)	532183661
15	AXLE ARM ASSEMBLY, LF	532189277
16	KNOB	532191938
17	AXLE ARM ASSEMBLY (RR)	532183662
18	AXLE ARM ASSEMBLY, RF	532189278
19	PIN RETAINING SCREW	532051793
20	BOLT	874760412
21	PROTECTOR	532189008
22	HOOP	532066426
23	DISCHARGE GUARD	532160831
24	MATICE	532145212
25	NUT	532166785
26	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 120K02-0646-EI FOR SERVICE & PARTS 1-800-233-3723	000000000
27	TORSION SPRING	532193436
28	ADAPTER	532193707
29	MOWER BLADE	532141114
30	PODLOŽKA	532851074
31	PODLOŽKA	532850263
32	SCREW	532851084
33	BRACKET	873800500
34	BRACKET	532403508
35	BRACKET	532403507
36	ADJUSTING BRACKET	532165704
37	HINGE	532160833
38	DECAL	532107339
39	SPRING	532168599
40	KNOB	532087877
41	BOLT	532150406
43	WASHER	532183901
44	BOLT	532160828
45	WHEEL	532403420
46	MATICE	532083923
47	WHEEL	532403421
48	BOLT	874760514
51	WASHER	532088343
52	O-KROUŽEK	532197480
53	CLIP	532197991
58	BOLT	532751153
	DECAL (not shown)	532162300
