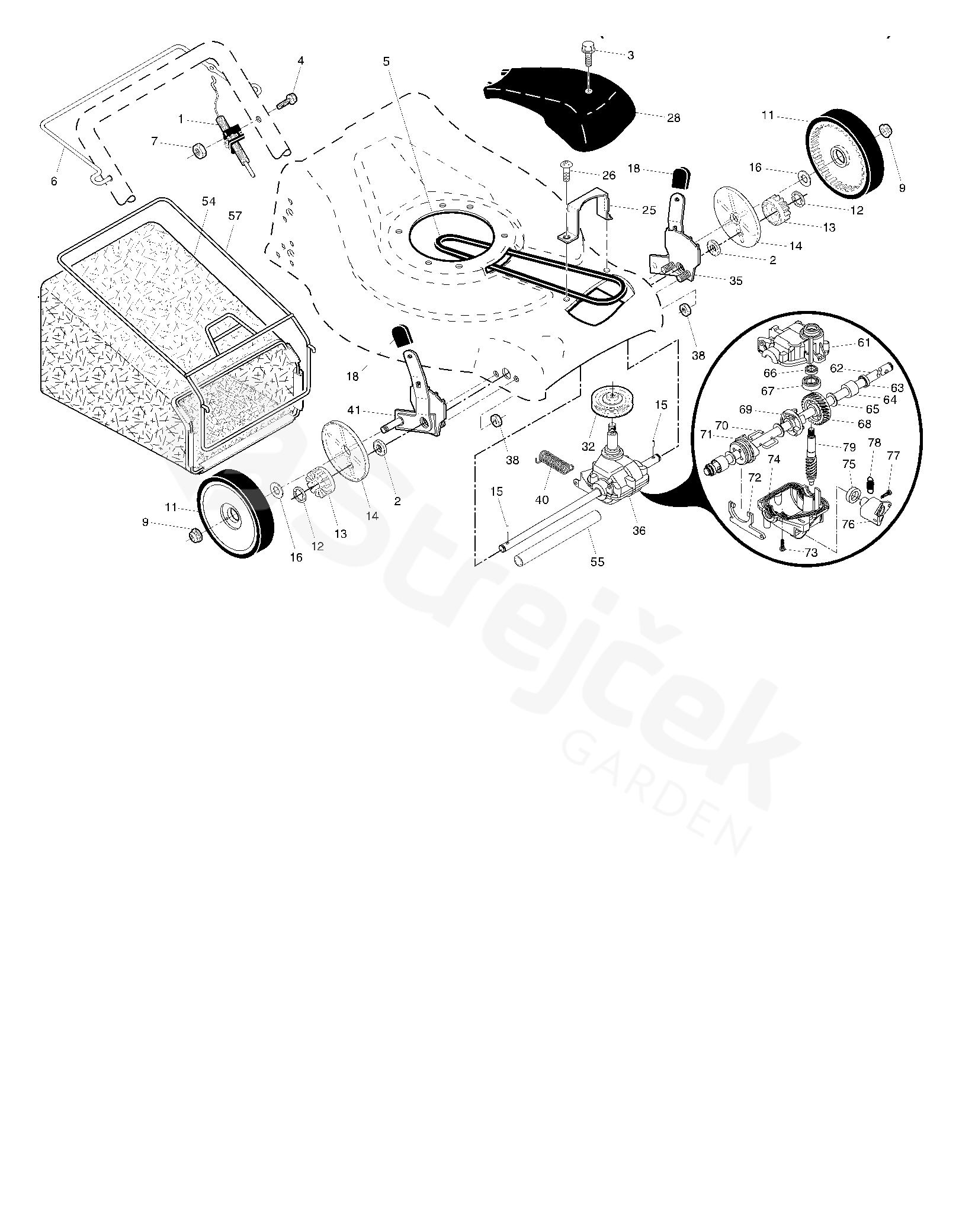

Spare parts - Partlist - PO675Y21R PO675Y21R, 96142001902, 2005-01 - DRIVE

Everything for your machines

PO675Y21R PO675Y21R, 96142001902, 2005-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PO675Y21R, 96142001902, 2005-01

1	DRIVE CONTROL	532193480
2	BEARING	532191039
3	PAN HEAD TAPPING SCREW	532175262
4	HEX WASHER HEAD SCREW	532185681
5	BELT	532194149
6	BAIL.CONT.DR.S/S.ROUND.BLK 194185X428 194185X428	194185X428
7	NUT	532751152
9	MATICE	532083923
11	WHEEL 193912X427 193912X427	193912X427
12	E-CLIP	812000058
13	PINION	532750003
14	DUST COVER	532189403
15	PAWL, DRIVE	532191017
16	PODLOŽKA	532067725
18	KNOB	532087877
25	BELT GUIDE	532199089
26	SCREW	532150078
28	DRIVE COVER 181467	532181467
32	PULLEY	532194018
35	ADJUSTER (Includes Knob and Bearing)	532195110
36	GEARBOX 188296	532188296
38	MATICE	873800400
40	SPRING	532192849
41	ADJUSTER (Includes Knob and Bearing)	532195107
55	DRIVESHAFT COVER	532175739
57	FRAME 194643	532194643
61	GEAR HOUSING	532196886
62	SHAFT OUTPUT	532196885
63	SEAL, OUTPUT SHAFT	532183508
64	BUSHING	532183511
65	PODLOŽKA	532183509
66	SEAL, INPUT SHAFT	532183514
67	BALL BEARING	532183506
68	GEAR	532183499
69	CLUTCH	532196884
70	WIRE, FORMED	532183505
71	CLUTCH	532196883
72	FORK	532196882
73	SCREW	532183513
74	GEAR HOUSING	532196881
75	SEAL	532196880
76	LEVER	532196879
77	SCREW	532196878
78	SPRING 196877	532196877
79	SHAFT	532183502
