Spare parts - Partlist - PO6TY21RA PO6TY21RA, 2004-01 - HANDLE

Everything for your machines

PO6TY21RA PO6TY21RA, 2004-01

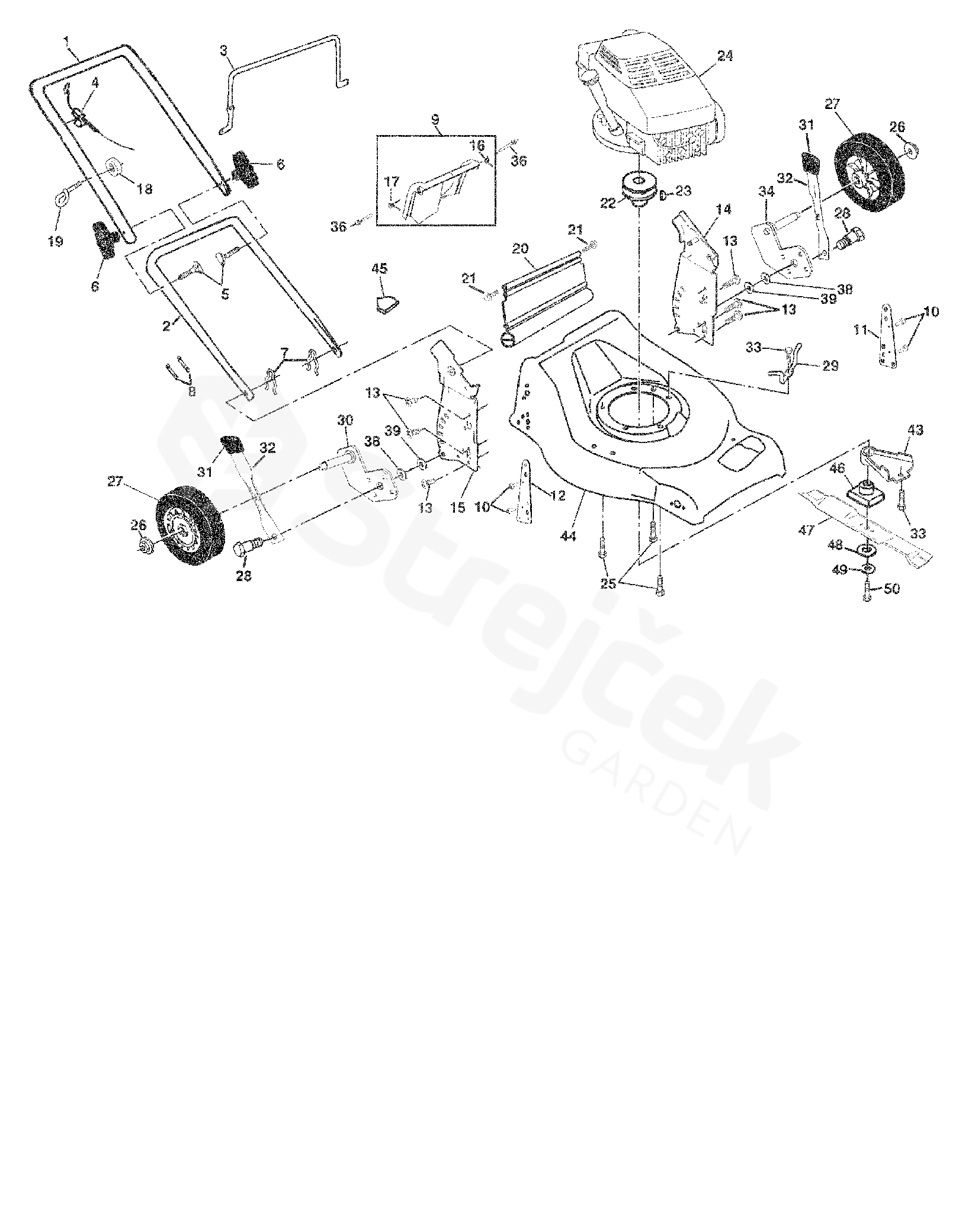

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PO6TY21RA, 2004-01

1	HANDLE.UP.DL.ST 183496X479 183496X479	183496X479
2	ARCEAU DE TONDEUSE 151721X479	532151721
3	LOOP	532146771
4	CABLE 175148	532175148
5	BOLT	532058714
6	HANDLE KNOB RL550HVA	532063688
7	PIN RETAINING SCREW	532051793
8	HOOP	532066426
9	REAR DOOR KIT (INCL. KE	532180479
10	NÝT	532128415
11	SUPPORT BRACKET	532175069
12	SUPPORT BRACKET	532175070
13	SCREW	817060410
14	HANDLE BRKT ASSY	532175082
15	BRKT.ASM. 175081X479 175081X479	175081X479
16	SPRING	532180071
17	SPRING	532180072
18	MATICE	532132004
19	HOLDER	532179585
20	REAR SKIRT	532189005
21	SCREW	532088652
22	PULLEY	532184941
23	KEY	532187723
25	BOLT	532150406
26	MATICE	532083923
27	WHEEL 149838 149838	532149838
28	BOLT 189312	532189312
29	MOUNTING BRACKET, DEBRIS SHIEL	532188839
30	AXLE ARM ASSEMBLY, RR,	532186575
31	KNOB	532087877
32	SELECTOR SPRING,	532175060
33	SCREW	532188040
34	AXLE ARM ASSEMBLY, LR,	532186576
36	BOLT	532184193
38	WASHER	532176185
39	WASHER	532176235
43	COVER	532188784
45	DECAL	532107339
46	ADAPTER	532184590
47	BLADE, 21", MULCH	539111878
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
	OPERATORS MANUAL 172788	532172788
