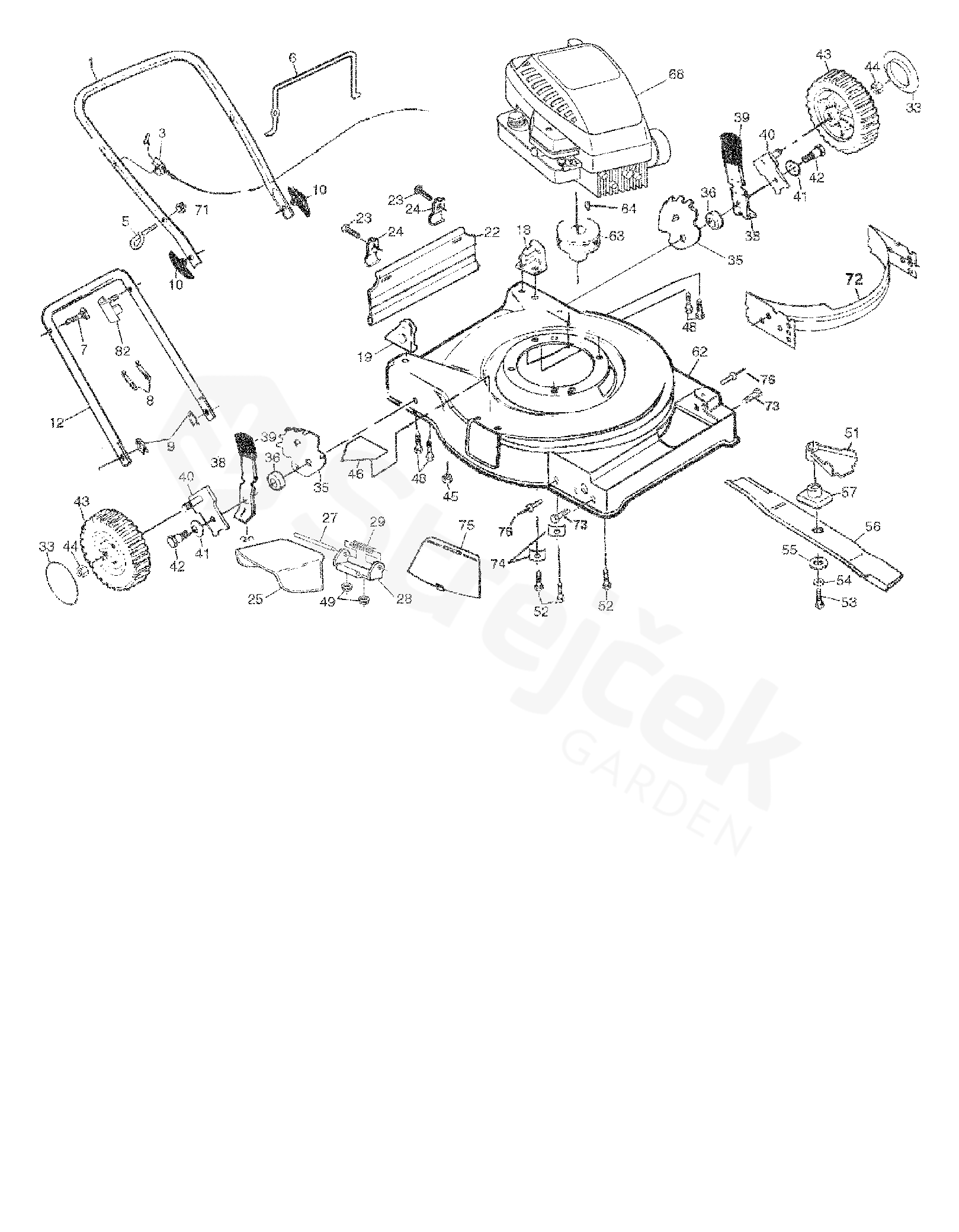

PR45Y22SA PR45Y22SA, 376040, 2003-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PR45Y22SA, 376040, 2003-01

1	HANDLE	532166860
3	ENGINE ZONE CONTROL CAB	532156581
5	HOLDER	532179585
6	CONTROL BAR 185242 185242	532185242
7	BOLT	532058714
8	HOOP	532066426
9	PIN RETAINING SCREW	532051793
10	HANDLEKNOB	532170146
12	HANDLE	532151590
18	ASM, HANDLE BRKT LH	532170346
19	ASM, HANDLE BRKT RH	532170345
22	PROTECTOR	532140540
23	SCREW HEX HEAD RL508A/B	532750097
24	BRACKET	532087584
25	GUARD	532750149
27	ROD	532147286
28	BRACKET	532087593
29	SPRING	532087589
33	HUB CAP	532180660
35	BRACKET	532139901
36	SPACER	532146630
38	SPRING	532700331
39	SELECTOR KNOB	532170143
40	LEVER	532145935
41	WASHER	532062335
42	BOLT	532084921
43	WHEEL	532157178
44	MATICE	532083923
45	LOCKNUT 3/8-16 RL508A/B	532751592
46	DECAL	532107339
48	SCREW	532149741
49	NUT	532063601
51	SHIELD	532182002
52	BOLT	532150406
53	SCREW	532851084
54	PODLOŽKA	532850263
55	PODLOŽKA	532851074
56	MOWER BLADE	532141114
57	BLADE ADAPTOR	532851514
63	PULLEY	532084596
64	KEY	532087677
71	MATICE	532132004
72	PLATE	532170031
73	SCREW	817600406
74	WASHER	532213146
75	PLATE	532751772
76	NÝT	532128415
82	BRACKET	532165108
	GCK5000 LAWN MOWER BAG Available accessory not included with lawn mower Available accessories not included with lawn mower:	531307263
