Poulan
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
1CA 1CA, 2000-01
>

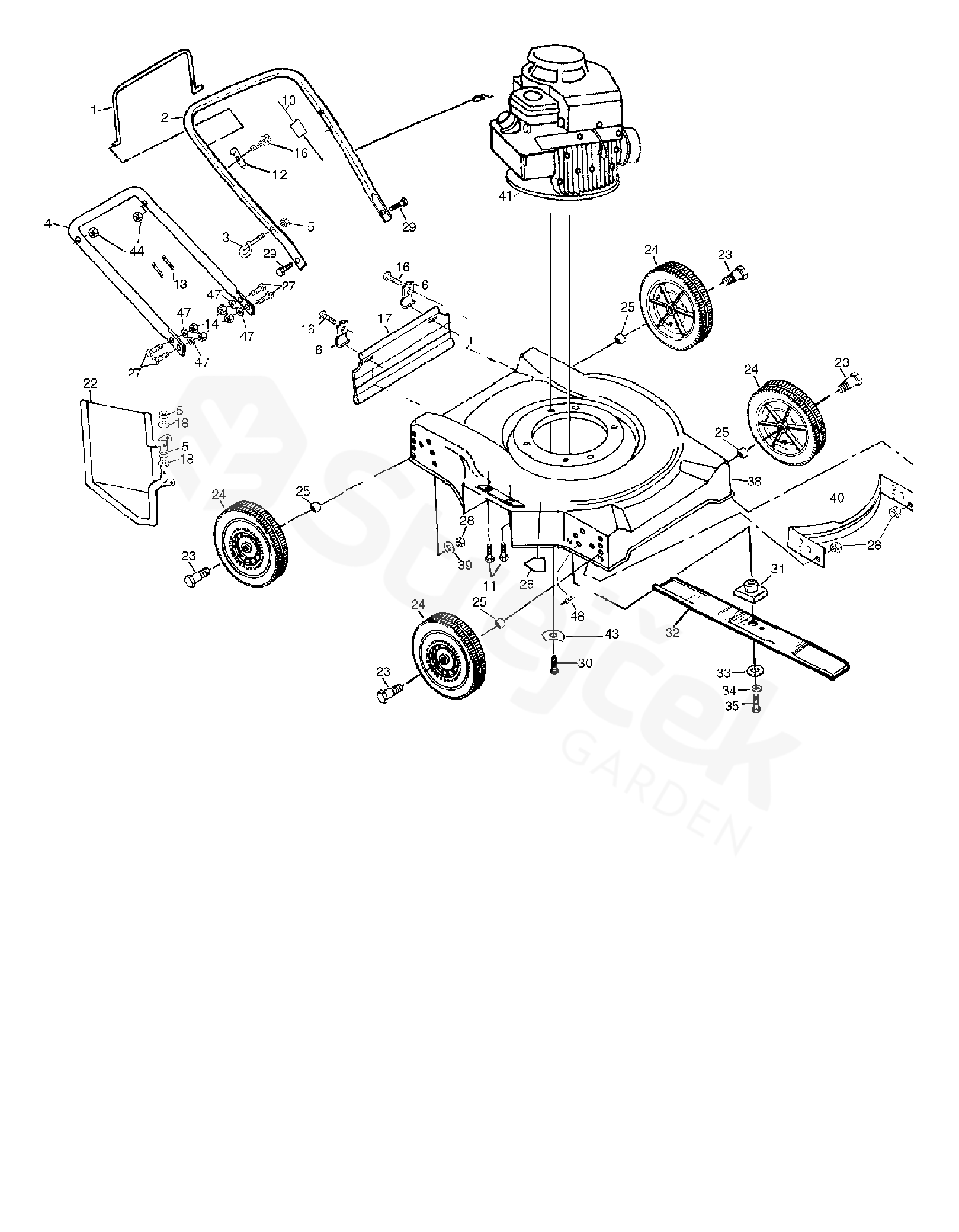

ASSEMBLY
Back to
1CA
1CA, 2000-01
ASSEMBLY
1CA
1CA, 2000-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
1CA, 2000-01
1
CONTROL BAR
532086902
3
ROPE GUIDE
532132001
4
HANDLE
532172146
5
NUT
532063601
6
BRACKET
532087584
10
CONTROL
532163799
11
BOLT
874760412
12
BRACKET
532086899
13
HOOP
532066426
14
NUT
532132010
16
SCREW HEX HEAD RL508A/B
532750097
17
PROTECTOR
532140541
18
PODLOŽKA
532053847
22
PROTECTOR
532752052
23
BOLT
532067609
24
WHEEL
532800060
25
SPACER
532136624
26
DECAL
532107339
27
BOLT
532137009
28
LOCKNUT 3/8-16 RL508A/B
532751592
29
BOLT
874350424
30
BOLT
532150406
31
BLADE ADAPTOR USA 7/8"
532850977
32
BLADE
532129277
33
PODLOŽKA
532851074
34
PODLOŽKA
532850263
35
SCREW
532851084
39
WASHER
532061537
40
FRONT BAFFLE
532138348
43
WASHER
532213146
44
MATICE
532132004
47
WASHER
532055611
48
NÝT
532128415
GCK3200 BAGGING KIT Available accessory not included with lawn mower
Available accessory not included with lawn mower
531030409
