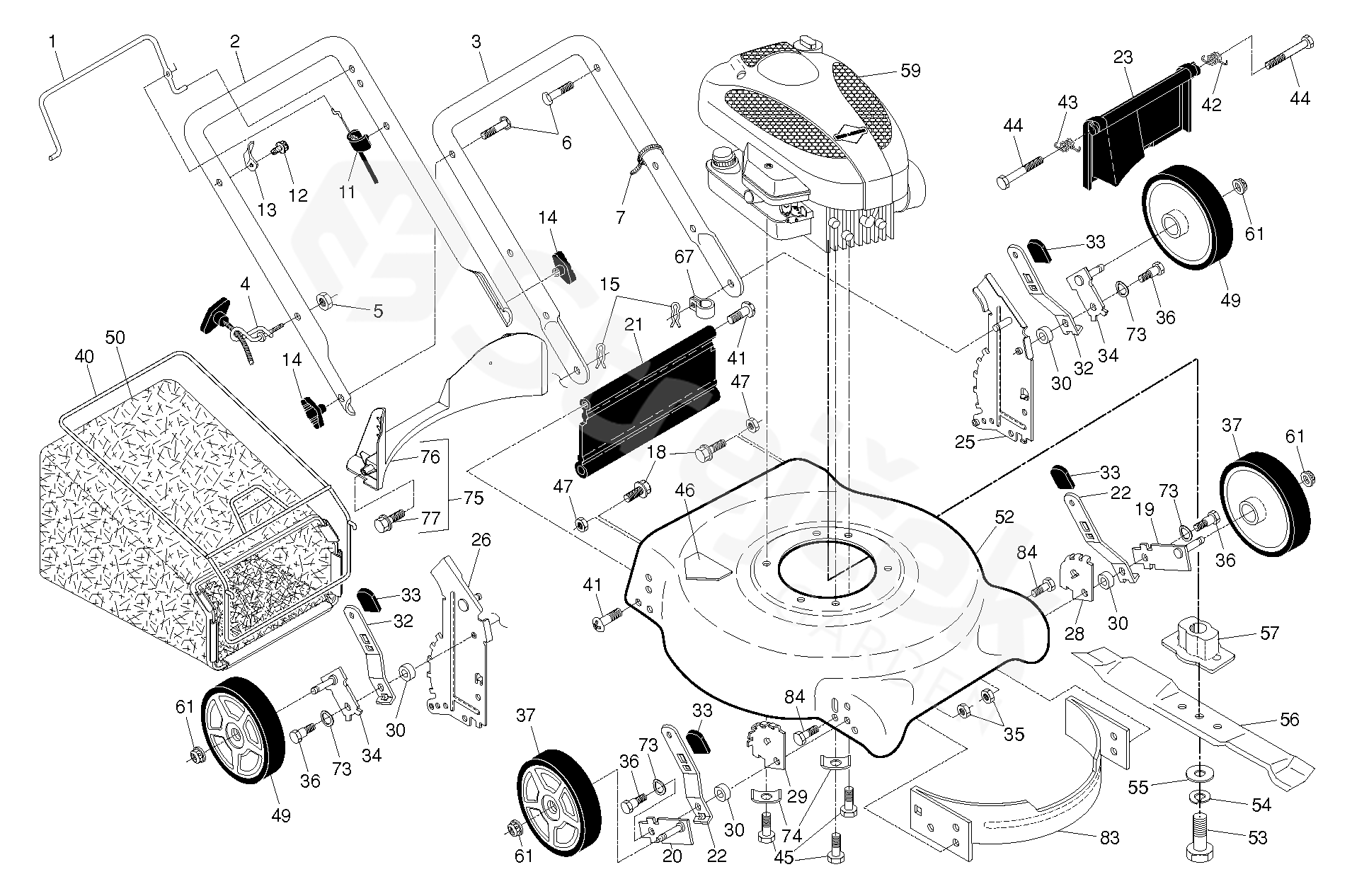

Spare parts - Partlist - PO140N21R PO140N21R, 96138002201, 2012-02 - FRAME & ENGINE

Everything for your machines

PO140N21R PO140N21R, 96138002201, 2012-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PO140N21R, 96138002201, 2012-02

1	CONTROL	532196025
2	HANDLE	532448263
3	HANDLE	532434514
4	GUIDE	532194788
5	MATICE	532132004
6	HANDLE BOLT	532191574
7	HOOP	532066426
11	CABLE	532440934
12	SCREW	532178848
13	BRACKET	532430034
14	KNOB	532445019
15	PIN RETAINING SCREW	532051793
18	SCREW	817600406
19	AXLE LH	532406689
20	AXLE RH	532406690
21	KIT SKIRT 21 DOMED W/LIP	532418655
22	SPRING	532406428
23	DEFLECTOR	532410603
25	BRACKET LH	532446555
26	BRACKET RH	532446557
28	BRACKET FRONT LH	532414441
29	BRACKET FRONT RH	532414440
30	SPACER	532401629
32	SPRING	532410888
33	KNOB	532087877
34	ARM.ASM.AXLE.REAR.5/9.SUBS/2 REAR	532410890
35	NUT	532426589
36	BOLT	532401638
37	WHEEL	532403421
40	FRAME	532411949
41	SCREW	532194186
42	SPRING LH	532405421
43	SPRING RH	532405423
44	BOLT	532184193
45	BOLT	532150406
46	DECAL	532404763
47	MATICE	873930500
49	WHEEL	532403458
50	GRASSBAG	532402263
52	KIT	532441948
53	SCREW	532851084
54	PODLOŽKA	532850263
55	PODLOŽKA	532851074
56	MOWER BLADE	532406712
57	BLADE ADAPTOR USA 7/8"	532850977
59	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 10L802-0119-F1 FOR SERVICE & PARTS 1-800-233-3723	000000000
61	MATICE	532409148
67	CLIP	532197991
73	WASHER	532401630
74	WASHER	532125078
75	KIT	532413693
76	BAFFLE.REAR.PLASTIC.21.RD.ECON	532410589
77	SCREW	817411312
83	BAFFLE	532428501
84	BOLT	817000510
	DECAL NOT SHOWN	532404764
