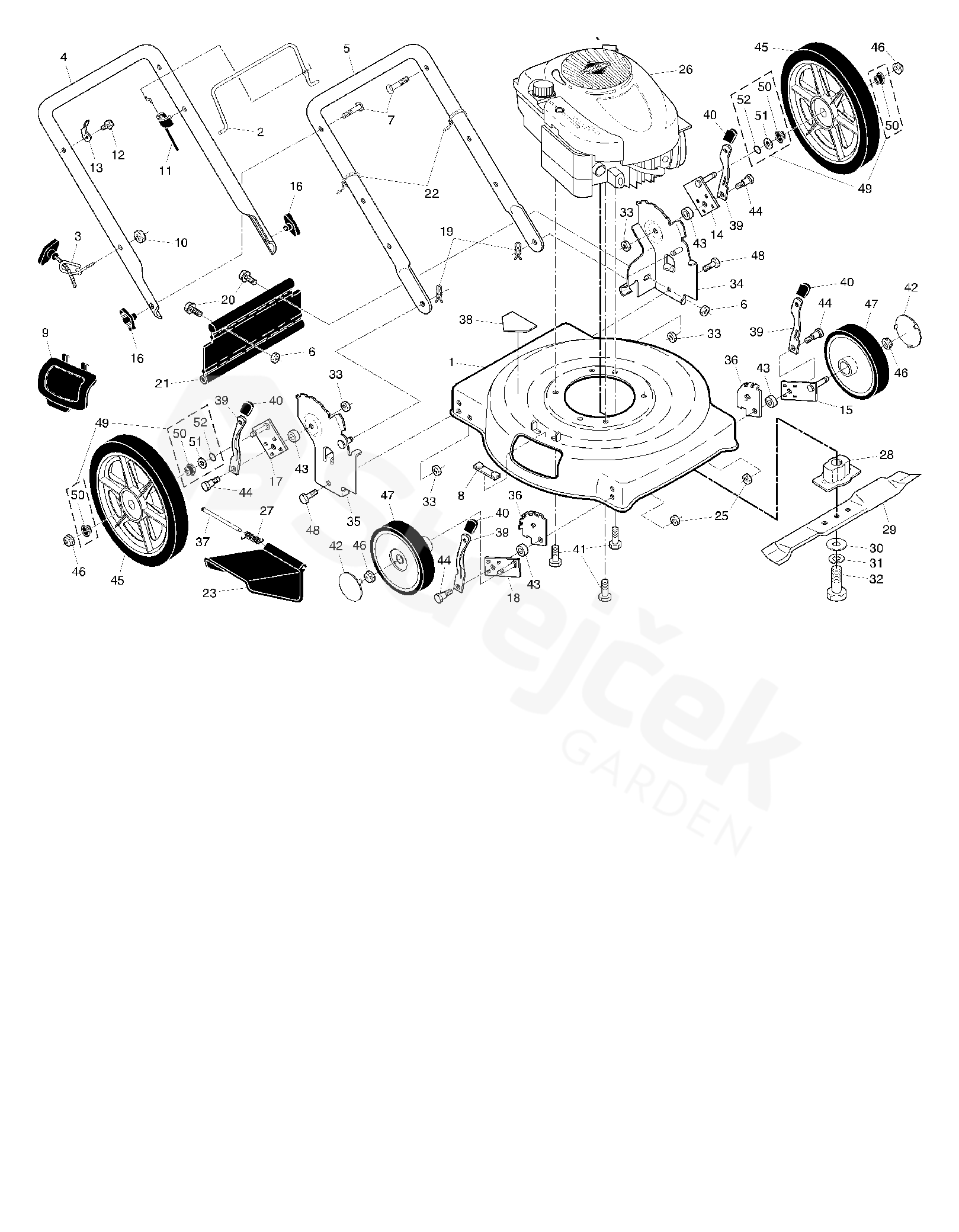

PR67522S PR67522S, 96112001501, 2005-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PR67522S, 96112001501, 2005-01

1	LAWN MOWER HOUSING	532165187
2	BAIL.MZR.STD.BLK 194177X428 194177X428	194177X428
3	HOLDER	532179585
4	HANDLE.UPPER.21DO/22EC 194179X479 194179X479	194179X479
5	HANDLE	532174291
6	MATICE	873800400
7	HANDLE BOLT	532191574
8	CLIP	532161622
9	PLATE, MULCHER	532160830
10	MATICE	532132004
11	CABLE	532176556
12	SCREW	532750634
13	BRACKET	532086899
14	AXLE ARM ASSEMBLY, LR,	532180409
15	AXLE ARM ASSEMBLY, LF,	532186577
16	HNDL.KNOB.BLK 189713X428 189713X428	189713X428
17	AXLE ARM ASSEMBLY, RR,	532180410
18	AXLE ARM ASSEMBLY, RF,	532186578
19	PIN RETAINING SCREW	532051793
20	BOLT	874760412
21	PROTECTOR	532189008
22	HOOP	532066426
23	DISCHARGE GUARD	532160831
25	NUT	532166785
27	TORSION SPRING	532193436
28	ADAPTER	532184590
29	MOWER BLADE	532141114
30	PODLOŽKA	532851074
31	PODLOŽKA	532850263
32	SCREW	532851084
33	BRACKET	873800500
34	BRACKET	532170373
35	BRACKET	532170374
36	WHEEL BRACKET ADJUSTOR	530160835
37	HINGE	532160833
38	DECAL	532107339
39	SELECTOR SPRING	532168360
40	SELECTOR KNOB	532170143
41	BOLT	532150406
42	HUB CAP	532077400
43	WASHER	532183901
44	BOLT	532160828
45	WHEEL & TIRE ASSEMBLY, 195630 195630	532195630
46	MATICE	532083923
47	WHEEL & TIRE ASSEMLBY 194855	532194855
48	BOLT	874760514
49	KIT, BUSHING	532193498
50	BUSHING.NYLON.BLK(WHEEL) 193028X428 193028X428	193028X428
51	WASHER	532088343
52	O-RING	532188152
	DECAL (not shown)	532162300
