225114X92E2 225114X92E2, 2005-01

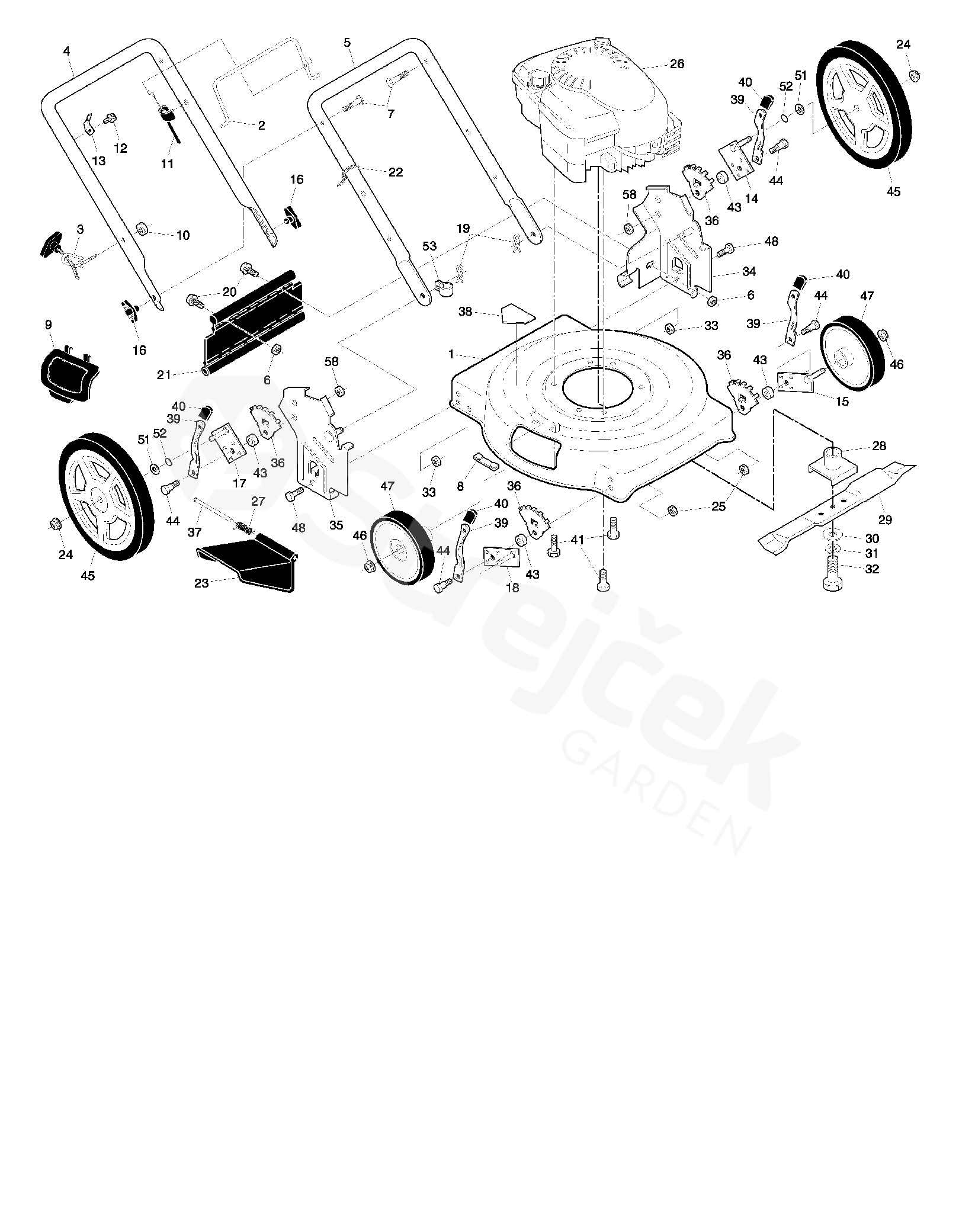

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 225114X92E2, 2005-01

2	BAIL.MZR.STD.BLK 194177X428 194177X428	194177X428
3	HOLDER	532179585
4	HANDLE.UPPER.21DO/22EC 194179X479 194179X479	194179X479
5	HANDLE	532174291
6	MATICE	873800400
7	HANDLE BOLT	532191574
8	CLIP	532161622
9	PLATE, MULCHER	532160830
10	MATICE	532132004
11	CABLE	532158152
12	SCREW	532750634
13	BRACKET	532086899
14	AXLE ARM ASSEMBLY, LR,	532180409
15	AXLE ARM ASSEMBLY, LF,	532186577
16	HNDL.KNOB.BLK 189713X428 189713X428	189713X428
17	AXLE ARM ASSEMBLY, RR,	532180410
18	AXLE ARM ASSEMBLY, RF,	532186578
19	PIN RETAINING SCREW	532051793
20	BOLT	874760412
21	PROTECTOR	532189008
22	HOOP	532066426
23	DISCHARGE GUARD	532160831
24	MATICE	532145212
25	NUT	532166785
27	TORSION SPRING	532193436
28	ADAPTER	532193707
29	MOWER BLADE	532141114
30	PODLOŽKA	532851074
31	PODLOŽKA	532850263
32	SCREW	532851084
33	BOLT	532751153
34	BRKT.ASM.HDL.22.ECON.HW.LH 196963X479 196963X479	196963X479
35	BRKT.ASM.HDL.22.ECON.HW.RH 196962X479 196962X479	196962X479
36	WHEEL BRACKET ADJUSTOR	530160835
37	HINGE	532160833
38	DECAL	532085463
39	SELECTOR SPRING	532168360
40	KNOB	532087877
41	BOLT	532150406
43	WASHER	532183901
44	BOLT	532160828
45	WHEEL 193926X460 193926X460	193926X460
46	MATICE	532083923
47	WHEEL 193905X460 193905X460	193905X460
48	BOLT	874760514
51	WASHER	532088343
52	O-KROUŽEK	532197480
53	CLIP	532192770
58	BRACKET	873800500
	DECAL (not shown)	532161058
