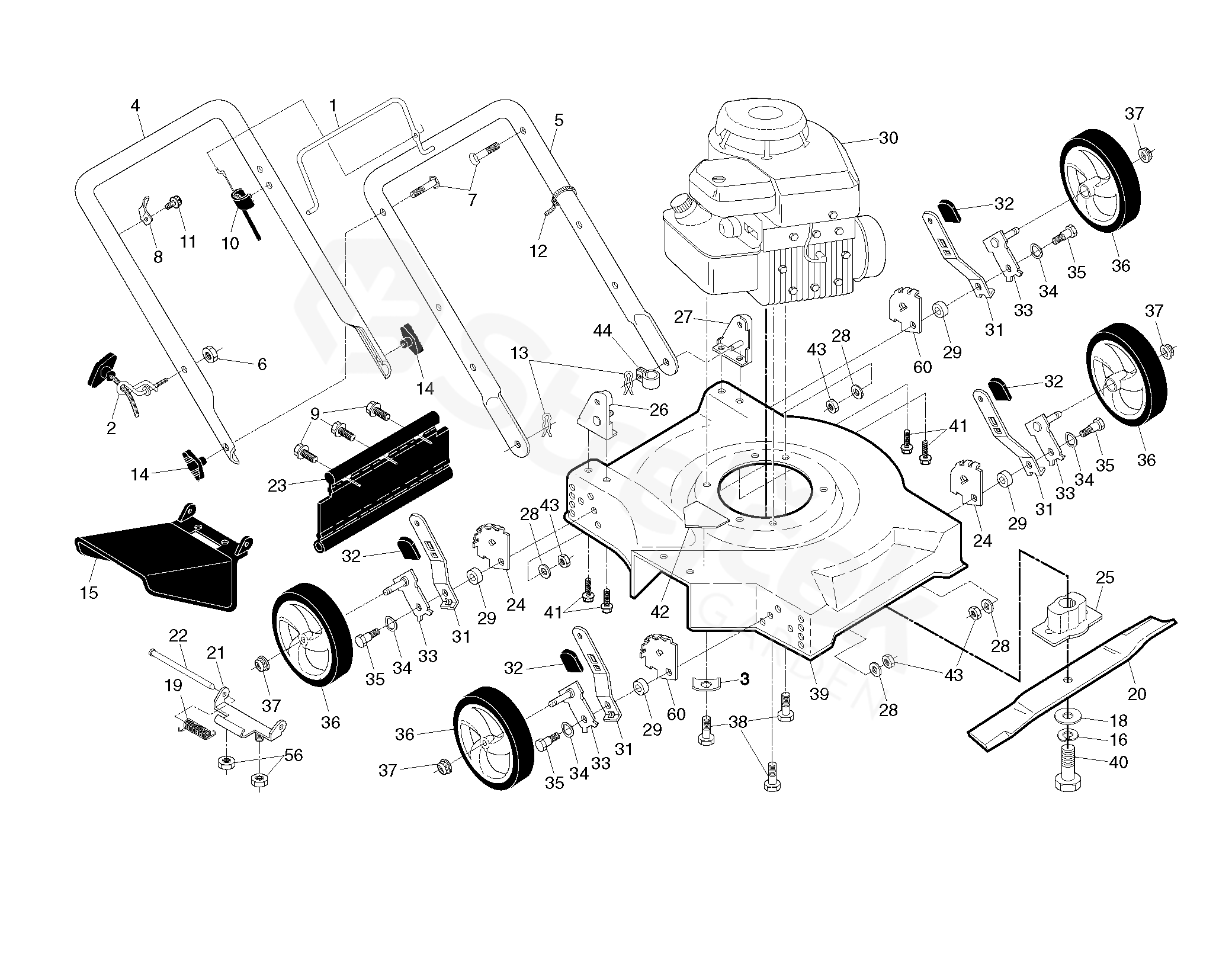

Spare parts - Partlist - PO45N20S PO45N20S, 96112007008, 2011-01 - FRAME & ENGINE

Everything for your machines

PO45N20S PO45N20S, 96112007008, 2011-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PO45N20S, 96112007008, 2011-01

1	CONTROL	532196025
2	GUIDE	532194788
3	WASHER	532125078
4	HANDLE	532196026
5	HANDLE	532155044
6	MATICE	532132004
7	HANDLE BOLT	532191574
8	BRACKET	532430034
9	SCREW	532189241
10	CONTROL	532162778
11	SCREW	532750634
12	HOOP	532066426
13	PIN RETAINING SCREW	532051793
14	KNOB	532191938
15	GUARD	532432040
16	PODLOŽKA	532850263
18	PODLOŽKA	532851074
19	SPRING	532411832
20	BLADE	532145106
21	DEFLECTOR	532088602
22	SHAFT	532150215
23	SKIRT	532189240
24	BRACKET RR/LF	532414441
25	BLADE ADAPTOR USA 7/8"	532850977
26	BRACKET RH	532170975
27	BRACKET LH	532170977
28	WASHER	532061537
29	SPACER	532401629
30	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 09K502-1251-F1 FOR SERVICE & PARTS 1-800-233-3723	000000000
31	SPRING	532406428
32	KNOB	532087877
33	AXLE	532407871
34	WASHER	532401630
35	BOLT	532401638
36	WHEEL	532440542
37	MATICE	532409148
38	BOLT	532150406
39	HOUSING	532414784
40	SCREW	532851084
41	SCREW	532149741
42	DECAL	532404763
43	MATICE	873930500
44	CLIP	532197991
56	MATICE	873800400
60	BRACKET LR/RF	532414440
	DECAL	532404764
