Poulan
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
PO45N21RA PO45N21RA, 2004-01
>

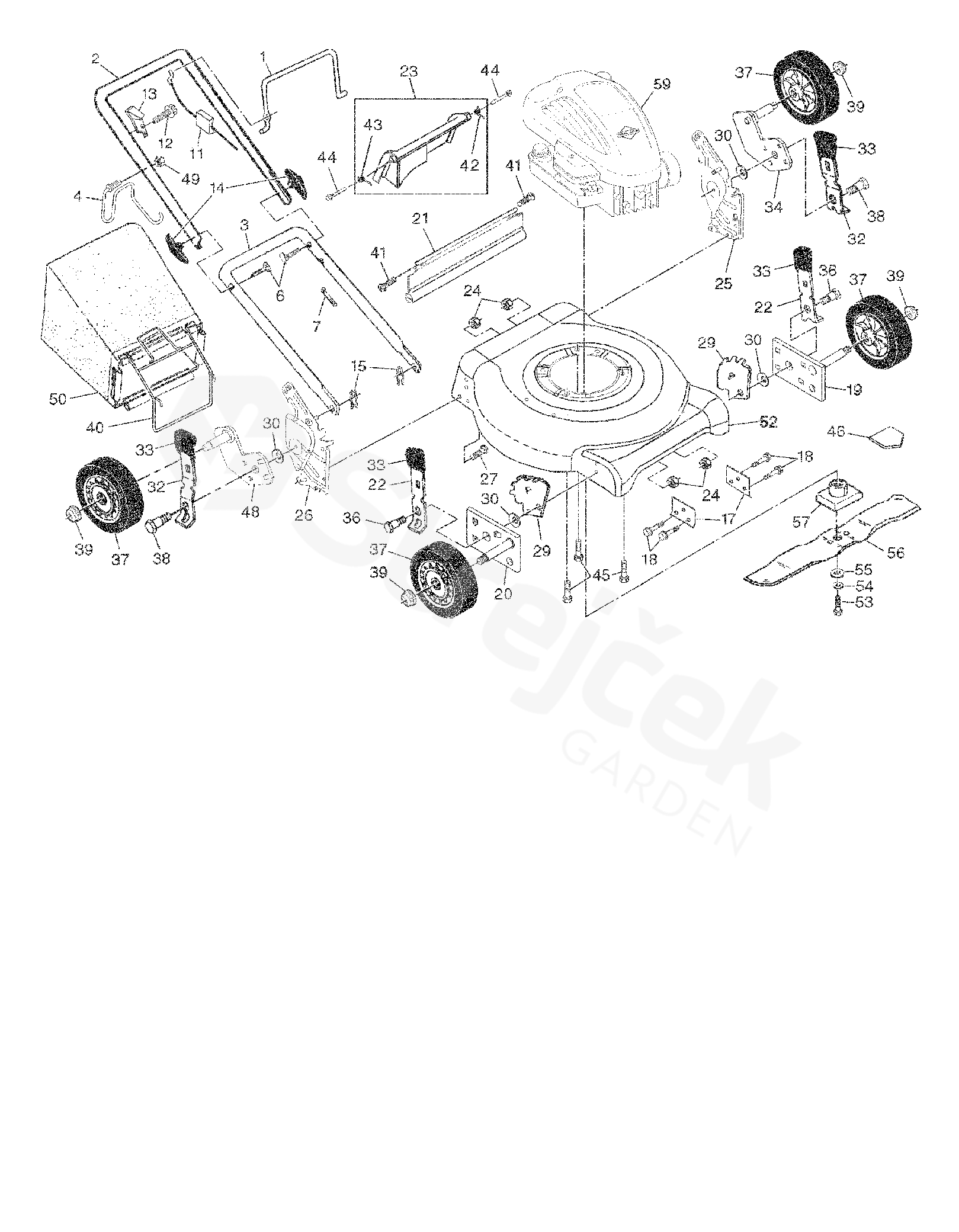

ASSEMBLY
Back to
PO45N21RA
PO45N21RA, 2004-01
ASSEMBLY
PO45N21RA
PO45N21RA, 2004-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PO45N21RA, 2004-01
1
CONTROL BAR
532086902
2
HANDLE
532169709
3
HANDLE
532174291
4
HOLDER
532179585
6
HANDLE BOLT
532191574
7
HOOP
532066426
11
CABLE
532176556
12
SCREW
532750634
13
BRACKET
532086899
14
WING NUT
532128638
15
PIN RETAINING SCREW
532051793
17
SUPPORT BRACKET
532165946
18
SCREW
817600406
19
AXLE ARM ASSEMBLY, LF,
532186577
20
AXLE ARM ASSEMBLY, RF,
532186578
21
REAR SKIRT
532188987
22
SELECTOR SPRING
532168360
23
DEFLECTOR
(Includes Springs)
532186612
24
MATICE
873930500
25
HANDLE BRACKET
532166111
26
HANDLE BRKT ASSY RIGHT
532166112
27
SCREW
532851856
29
WHEEL BRACKET ADJUSTOR
530160835
30
WASHER
532183901
32
SPRING 169421X004
169421X004
169421X004
33
KNOB
532087877
34
AXLE ARM ASSEMBLY, LR,
532186576
36
BOLT
532160828
37
WHEEL
532700263
39
MATICE
532083923
40
FRAME
532188813
41
SCREW
532088652
42
SPRING
532165766
43
SPRING
532165767
44
BOLT
532184193
45
BOLT
532150406
46
DECAL
532141846
48
AXLE ARM ASSEMBLY, RR,
532186575
49
MATICE
532132004
53
SCREW
532851084
54
PODLOŽKA
532850263
55
PODLOŽKA
532851074
56
BLADE, 21", MULCH
539111878
57
BLADE ADAPTOR USA 7/8"
532850977
OPERATORS MANUAL
532172782
