Spare parts > Poulan > LAWN MOWERS: CONSUMER WALK-BEHINDS > RK45N22SHA RK45N22SHA, 2004-01 > ASSEMBLY
Back to

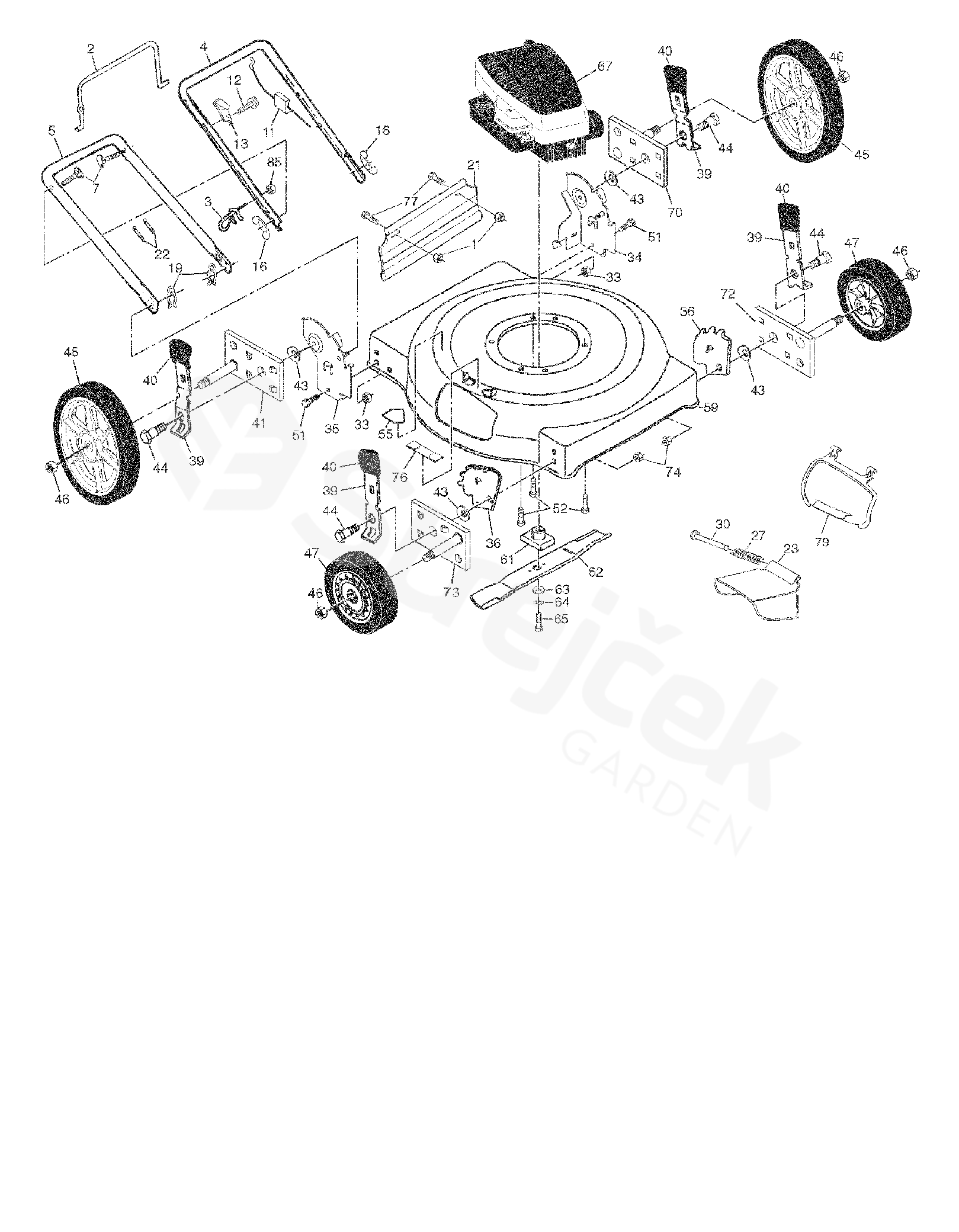

ASSEMBLY
RK45N22SHA RK45N22SHA, 2004-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RK45N22SHA, 2004-01
1 MATICE 873800400
2 CONTROL BAR 532086902
3 HOLDER 532179585
4 HANDLE 532169709
5 HANDLE 532174291
7 BOLT 532058714
11 CONTROL 532162778
13 BRACKET 532086899
16 WING NUT 532128638
19 PIN RETAINING SCREW 532051793
21 REAR SKIRT 532188987
22 HOOP 532066426
23 DISCHARGE GUARD 532160831
27 TORSION SPRING 532160832
30 HINGE 532160833
33 BRACKET 873800500
34 BRACKET 532170373
35 BRACKET 532170374
36 WHEEL BRACKET ADJUSTOR 530160835
39 SELECTOR SPRING 532168360
40 KNOB 532087877
41 AXLE ARM ASSEMBLY, RR, 532180410
43 WASHER 532183901
44 BOLT 532160828
45 DECAL
188808 		532188808
46 MATICE 532083923
47 WHEEL 532800220
51 BOLT 874760514
52 BOLT 532150406
55 DECAL 532107339
59 LAWN MOWER HOUSING 532165187
61 BLADE ADAPTOR 532851514
62 MOWER BLADE 532141114
63 PODLOŽKA 532851074
64 PODLOŽKA 532850263
65 SCREW 532851084
70 AXLE ARM ASSEMBLY, LR, 532180409
72 AXLE ARM ASSEMBLY, LF, 532186577
73 AXLE ARM ASSEMBLY, RF, 532186578
74 NUT 532166785
76 CLIP 532161622
77 BOLT 874760412
79 PLATE, MULCHER 532160830
85 MATICE 532132004
OPERATORS MANUAL
172783 		532172783
