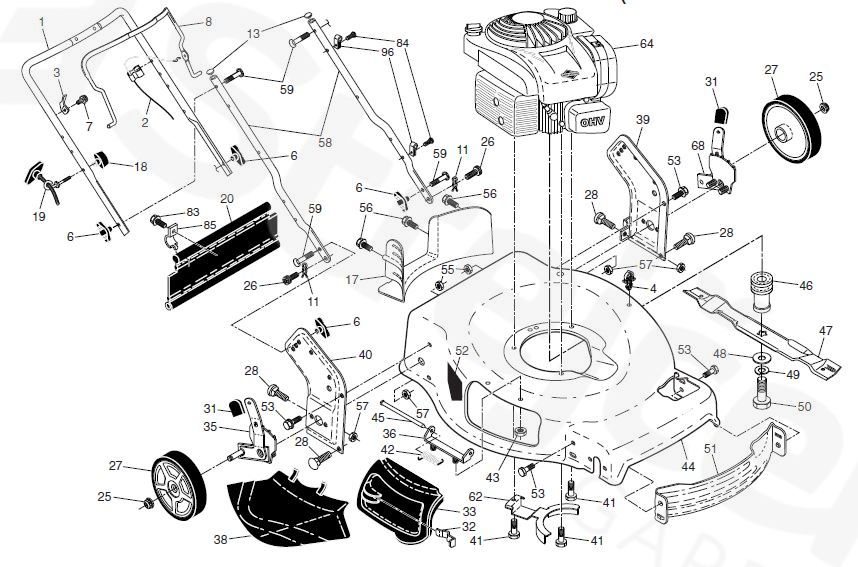

Spare parts - Partlist - 961220036 961220036, 96122003600, 2016-03 - FRAME

Everything for your machines

961220036 961220036, 96122003600, 2016-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 961220036, 96122003600, 2016-03

1	HANDLE	585864805
2	STOP CABLE	532420939
3	BRACKET	532430034
4	CLIP	532145006
6	KNOB	532191938
7	SCREW	532178848
8	BAIL	583872401
11	HAIR PIN COTTER	532425575
13	PLUG	532437516
17	BAFFLE	532427307
18	KNOB	581912601
19	GUIDE	581902101
20	DOOR	532429157
25	MATICE	532409148
26	SCREW	532419945
27	WHEEL ASSY	581009409
28	BOLT	586212501
31	KNOB	532701037
32	LATCH	532441192
33	MULCH DOOR	532432642
35	ADJUSTER REAR, RIGHT	532431139
36	HINGE	532175735
38	DEFLECTOR	532426129
39	BRACKET LH	585900702
40	BRACKET RH	585900802
41	BOLT	532150406
42	HINGE	532193000
43	MATICE	532191730
44	HOUSING ASSY	581062101
45	ROD	532175650
46	ADAPTER	581352401
47	BLADE.22PLUS	532420463
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
51	BAFFLE	532430599
52	DECAL	532182166
53	BOLT	817000510
55	MATICE	532191730
56	SCREW	817411312
57	MATICE	532155377
58	HANDLE	585908202
59	HANDLE BOLT	532191574
62	BRACKET	532435059
64	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 9P702-0178-F1 FOR SERVICE & PARTS 1-800-233-3723	000000000
68	ADJUSTER REAR, LEFT	532431138
83	SCREW HEX HEAD RL508A/B	532750097
84	FASTENER	532428124
85	BRACKET	532434530
96	CLIP	532197991
	BAG NOT SHOWN	532423849
