Poulan
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
961340001 96134000100, 2005-01
>

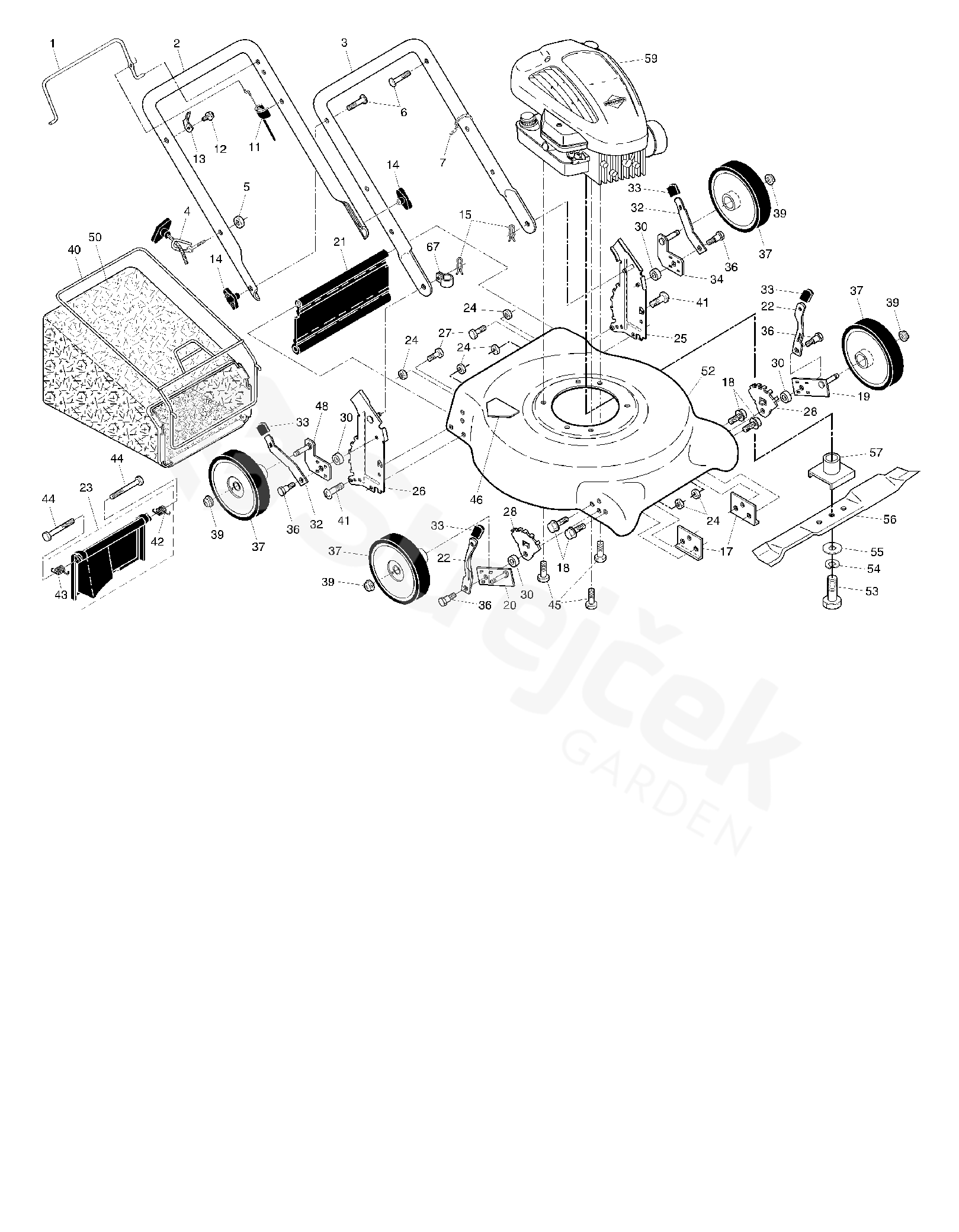

ASSEMBLY
Back to
961340001
96134000100, 2005-01
ASSEMBLY
961340001
96134000100, 2005-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
96134000100, 2005-01
1
BAIL.MZR.STD.BLK 194177X428
194177X428
194177X428
2
HANDLE.UPPER.21DO/22EC 194179X479
194179X479
194179X479
3
HANDLE
532174291
4
HOLDER
532179585
5
MATICE
532132004
6
HANDLE BOLT
532191574
7
HOOP
532066426
11
CABLE
532176556
12
SCREW
532750634
13
BRACKET
532086899
14
HNDL.KNOB.BLK 189713X428
189713X428
189713X428
15
PIN RETAINING SCREW
532051793
17
SUPPORT BRACKET
532165946
18
SCREW
532851856
19
AXLE ARM ASSEMBLY, LF,
532186577
20
AXLE ARM ASSEMBLY, RF,
532186578
21
REAR SKIRT
532188987
22
SELECTOR SPRING
532168360
23
DEFLECTOR
532186612
24
MATICE
873930500
25
HANDLE BRACKET
532166111
26
HANDLE BRKT ASSY RIGHT
532166112
27
SCREW
817600406
28
WHEEL BRACKET ADJUSTOR
530160835
30
WASHER
532183901
32
SPRING 169421X004
169421X004
169421X004
33
KNOB
532087877
34
AXLE ARM ASSEMBLY, LR,
532186576
36
BOLT
532160828
39
MATICE
532083923
40
FRAME
532188813
41
SCREW
532088652
42
SPRING
532165766
43
SPRING
532165767
44
BOLT
532184193
45
BOLT
532150406
46
DECAL
532141846
48
AXLE ARM ASSEMBLY, RR,
532186575
52
HOUSING 189215
189215
532189215
53
SCREW
532851084
54
PODLOŽKA
532850263
55
PODLOŽKA
532851074
56
BLADE, 21", MULCH
539111878
57
BLADE ADAPTOR
532851514
67
CLIP
532192770
DECAL
(not shown)
532161058
