Spare parts > Poulan > LAWN MOWERS: CONSUMER WALK-BEHINDS > PO500N21RH PO500N21RH, 96132002200, 2007-01 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE

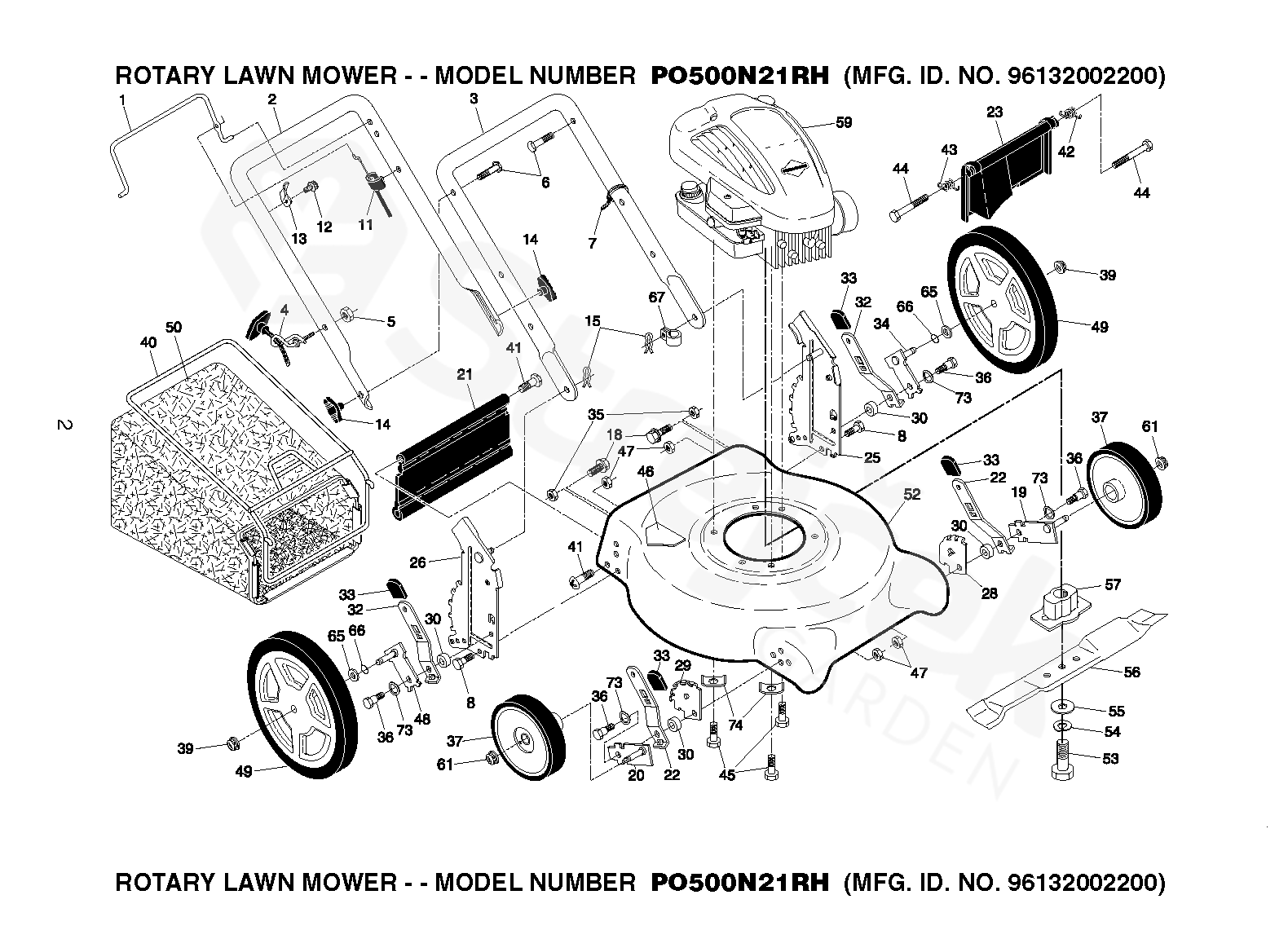

PO500N21RH PO500N21RH, 96132002200, 2007-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PO500N21RH, 96132002200, 2007-01
3 HANDLE 532174291
4 GUIDE 532194788
5 MATICE 532132004
6 HANDLE BOLT 532191574
7 HOOP 532066426
8 SCREW 874780512
11 CABLE 532176556
12 SCREW 532750634
13 BRACKET 532086899
15 PIN RETAINING SCREW 532051793
18 SCREW 817600406
19 ARM.ASM.AXLE.5/9.POS. 532401174
20 ARM.ASM.AXLE.5/9.POS.BZP 532401175
21 PROTECTOR 532189008
22 SELECTOR SPRING
FRONT 		532401621
30 SPACER 532401629
32 SELECTOR SPRING REAR 532401624
33 KNOB 532087877
34 ARM ASM AXLE LR
LEFT 		532401176
35 BOLT
RIGHT 		532751153
36 BOLT 532401638
39 MATICE 532145212
40 FRAME 532401808
41 SCREW 532088652
42 SPRING
LH 		532405421
43 SPRING
RH 		532405423
44 BOLT 532184193
45 BOLT 532150406
46 DECAL 532404763
47 NUT 532166785
48 ARM ASSM AXLE RR "REAR, RH"
RH 		532401177
50 GRASSBAG 532402263
52 KIT 532410180
53 SCREW 532851084
54 PODLOŽKA 532850263
55 PODLOŽKA 532851074
56 MOWER BLADE 532406712
57 ADAPTER 532193825
61 MATICE 532083923
65 WASHER 532088343
66 O-KROUŽEK 532197480
67 CLIP 532197991
74 WASHER 532213146
DECAL
NOT SHOWN 		532404764
