Poulan
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>

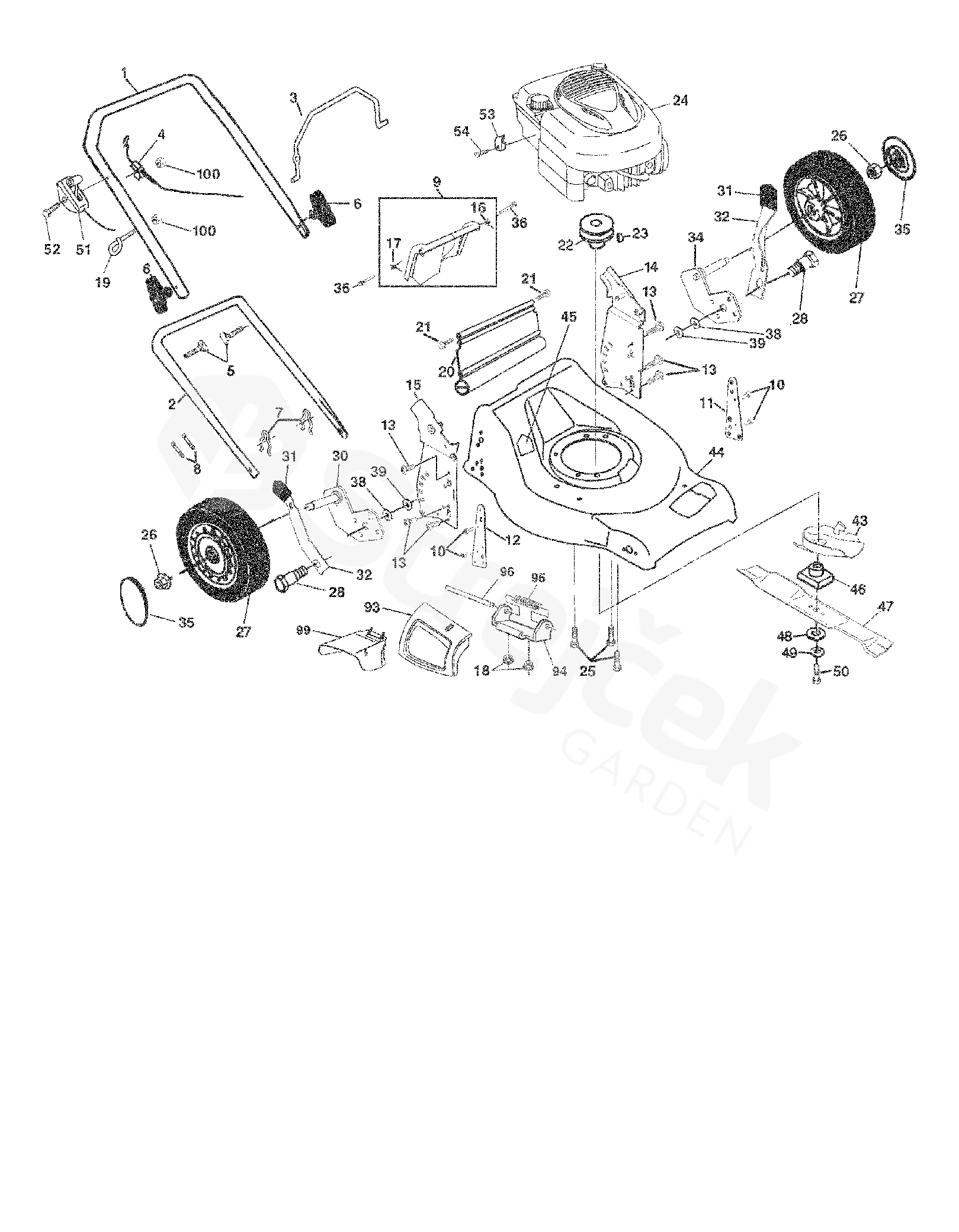

KC6Y21CA KC6Y21CA, 2003-01
>
HANDLE
Back to
KC6Y21CA
KC6Y21CA, 2003-01
HANDLE
KC6Y21CA
KC6Y21CA, 2003-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
KC6Y21CA, 2003-01
1
HANDLE
532178067
2
ARCEAU DE TONDEUSE 151721X479
532151721
3
LEVER
532145794
4
WIRE
532133107
5
BOLT
532058714
6
HANDLE KNOB RL550HVA
532063688
7
PIN RETAINING SCREW
532051793
8
HOOP
532066426
9
REAR DOOR KIT (INCL. KE
532180479
10
NÝT
532128415
11
SUPPORT BRACKET
532175069
12
SUPPORT BRACKET
532175070
13
SCREW
817060410
14
HANDLE BRKT ASSY
532175082
15
BRKT.ASM. 175081X479
175081X479
175081X479
16
SPRING
532180071
17
SPRING
532180072
18
MATICE
873800400
19
HOLDER
532179585
20
PROTECTOR
532178398
21
SCREW
532088652
22
PULLEY
532084596
23
KEY
532087677
25
BOLT
532150406
26
MATICE
532083923
27
WHEEL & TIRE ASSEMBLY
532167628
28
SHOULDER BOLT
532175231
30
AXLE ARM ASSY RR
532165761
31
KNOB
532087877
32
SELECTOR SPRING,
532175060
34
AXLE ARM ASSY LR
532165762
35
HUB CAP
186306
532186306
36
BOLT
532184193
38
WASHER
532176185
39
WASHER
532176235
43
COVER
532175083
45
DECAL
532141846
46
BLADE ADAPTOR
532851514
47
BLADE
532175064
48
PODLOŽKA
532851074
49
PODLOŽKA
532850263
50
SCREW
532851084
51
THROTTLE CONTROL
532132536
52
SCREW
532086055
53
CLAMP
532111190
54
SCREW
532083816
93
PLUG
532175066
94
HINGE
175735
532175735
95
SPRING
532175285
96
ROD
532175650
99
CLIPPING DEFLECTOR
532175071
100
MATICE
532132004
OPERATORS MANUAL
532172787
