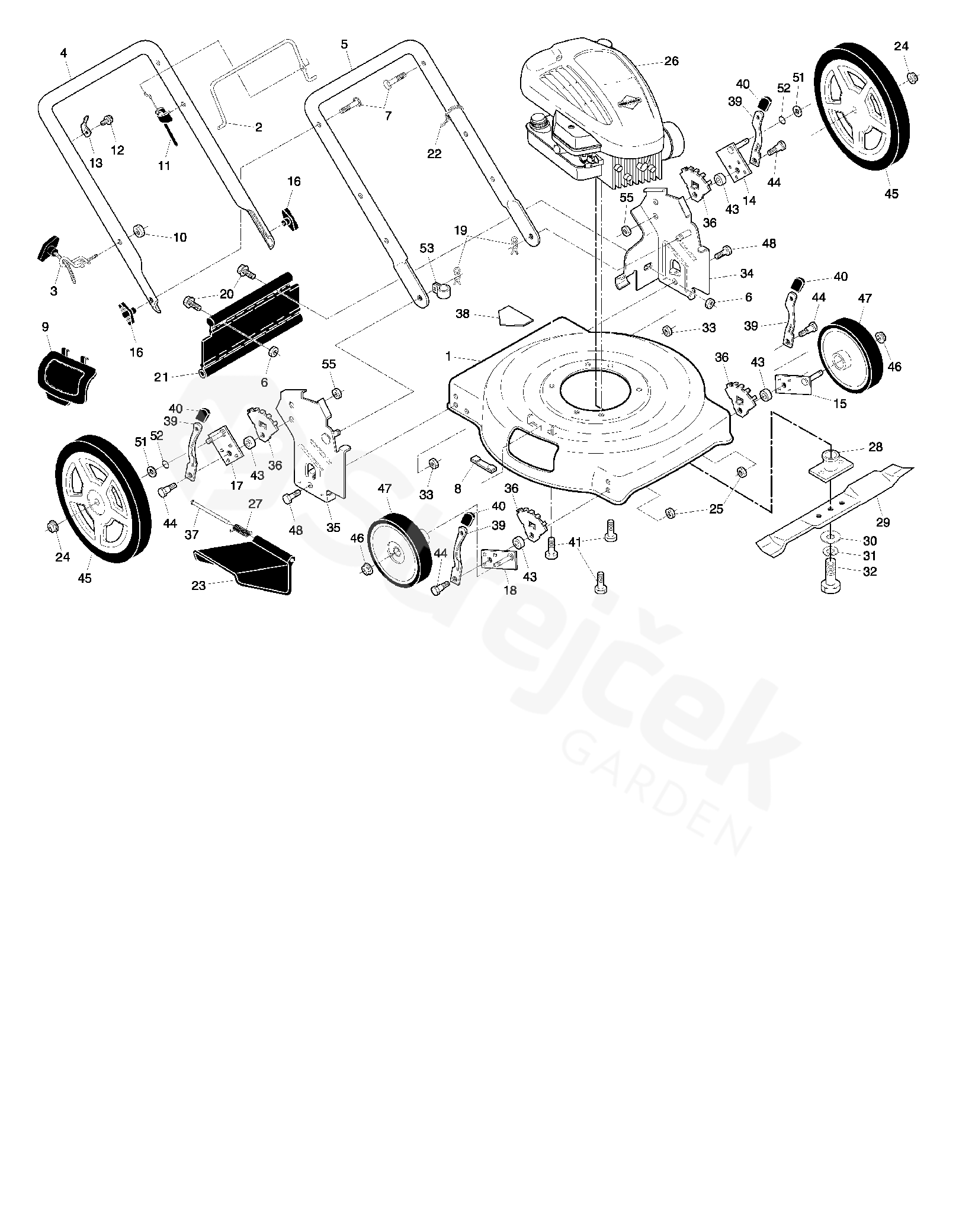

MX45N22SH MX45N22SH, 96112003700, 2006-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MX45N22SH, 96112003700, 2006-01

2	BAIL.MZR.STD.BLK 194177X428 194177X428	194177X428
3	GUIDE	532194788
4	HANDLE.UPPER.21DO/22EC 194179X479 194179X479	194179X479
5	HANDLE	532174291
6	MATICE	873800400
7	HANDLE BOLT	532191574
8	CLIP	532161622
9	PLATE, MULCHER	532160830
10	MATICE	532132004
11	CABLE	532183281
12	SCREW	532750634
13	BRACKET	532086899
14	AXLE ARM ASSEMBLY, LR,	532180409
15	AXLE ARM ASSEMBLY, LF,	532186577
16	HNDL.KNOB.BLK 189713X428 189713X428	189713X428
17	AXLE ARM ASSEMBLY, RR,	532180410
18	AXLE ARM ASSEMBLY, RF,	532186578
19	PIN RETAINING SCREW	532051793
20	BOLT	874760412
21	PROTECTOR	532189008
22	HOOP	532066426
23	DISCHARGE GUARD	532160831
24	MATICE	532145212
25	NUT	532166785
27	TORSION SPRING	532193436
28	ADAPTER	532193825
29	MOWER BLADE	532141114
30	PODLOŽKA	532851074
31	PODLOŽKA	532850263
32	SCREW	532851084
33	BRACKET	873800500
34	BRKT.ASM.HDL.22.ECON.HW.LH 193083X479 193083X479	193083X479
35	BRKT.ASM.HDL.22.ECON.HW.RH 193082X479 193082X479	193082X479
36	WHEEL BRACKET ADJUSTOR	530160835
37	HINGE	532160833
38	DECAL	532107339
39	SELECTOR SPRING	532168360
40	KNOB	532087877
41	BOLT	532150406
43	WASHER	532183901
44	BOLT	532160828
45	WHEEL 193926X427 193926X427	193926X427
46	MATICE	532083923
47	WHEEL 193931X427 193931X427	193931X427
48	BOLT	874760514
51	WASHER	532088343
52	O-KROUŽEK	532197480
53	CLIP	532197991
55	BOLT	532751153
	DECAL (not shown)	532162300
