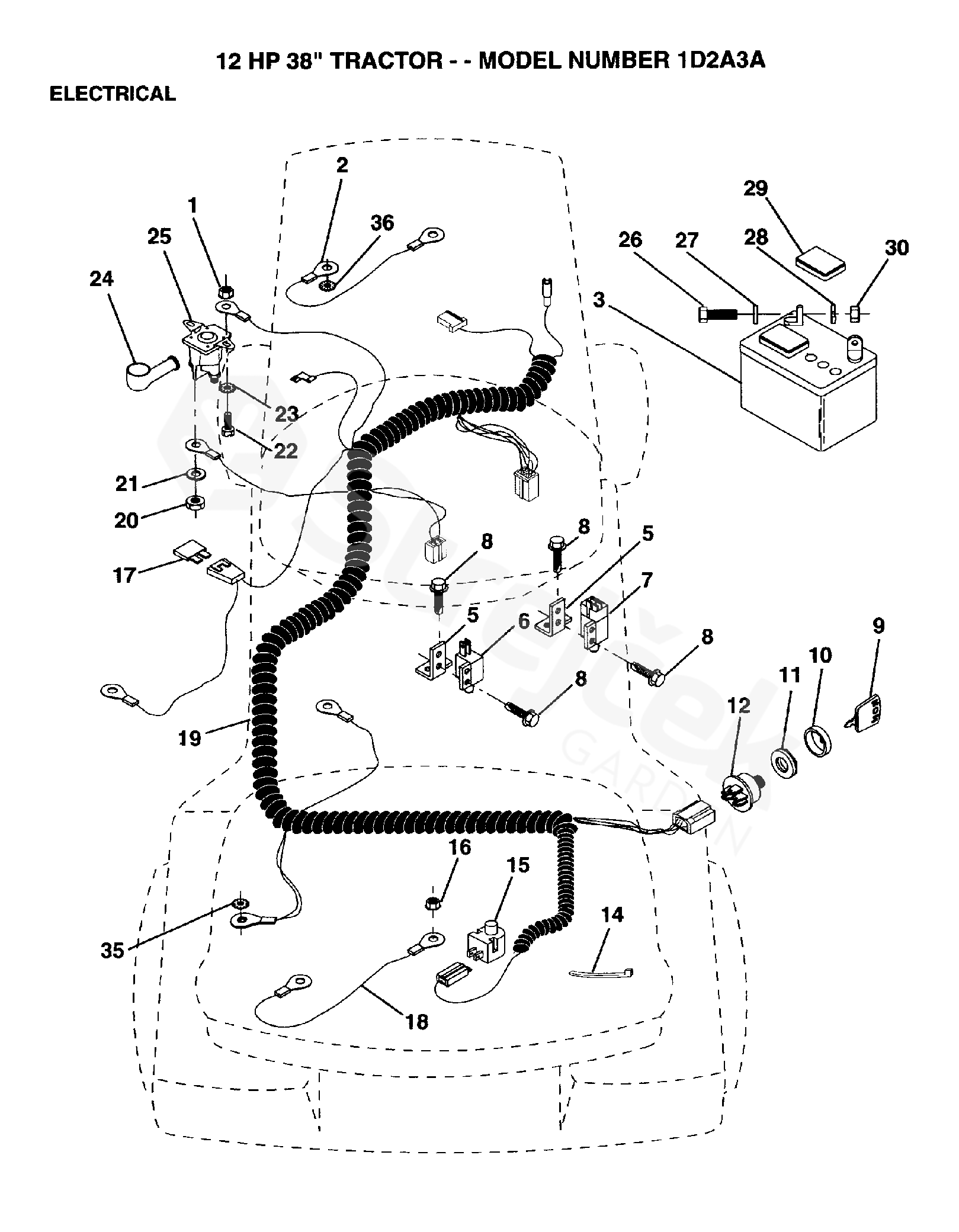

Spare parts > Poulan > TRACTORS/RIDE MOWERS > 1D2A3A 1D2A3A, 1993-01 > ELECTRICAL
Back to
ELECTRICAL
1D2A3A 1D2A3A, 1993-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 1D2A3A, 1993-01
1 MATICE 532053838
2 CABLE ASSY 532108423
3 BATTERY 532133909
5 BRACKET 532108236
6 SWITCH 532104445
7 SWITCH 532109553
8 SCREW 817021008
9 KEY 532122147
10 PROTECTOR 532123620
11 NUT 532109788
14 HOOP 532007192
15 SWITCH 532121305
16 NUT 873310500
17 FUSE 532006347
18 CABLE 532131562
20 NUT 873350400
21 WASHER 810090400
22 BOLT 874780408
23 WASHER 811050400
24 COVER 532000719
25 SOLENOID 532138406
26 BOLT 874760412
27 WASHER 819091016
28 WASHER 810040400
29 COVER 532121264
30 NUT 873220400
31 BULB 532007662
32 CABLE ASSY 532136849
33 SWITCH 532110712
35 PODLOŽKA 811050600
36 LOCKWASHER 811150400
