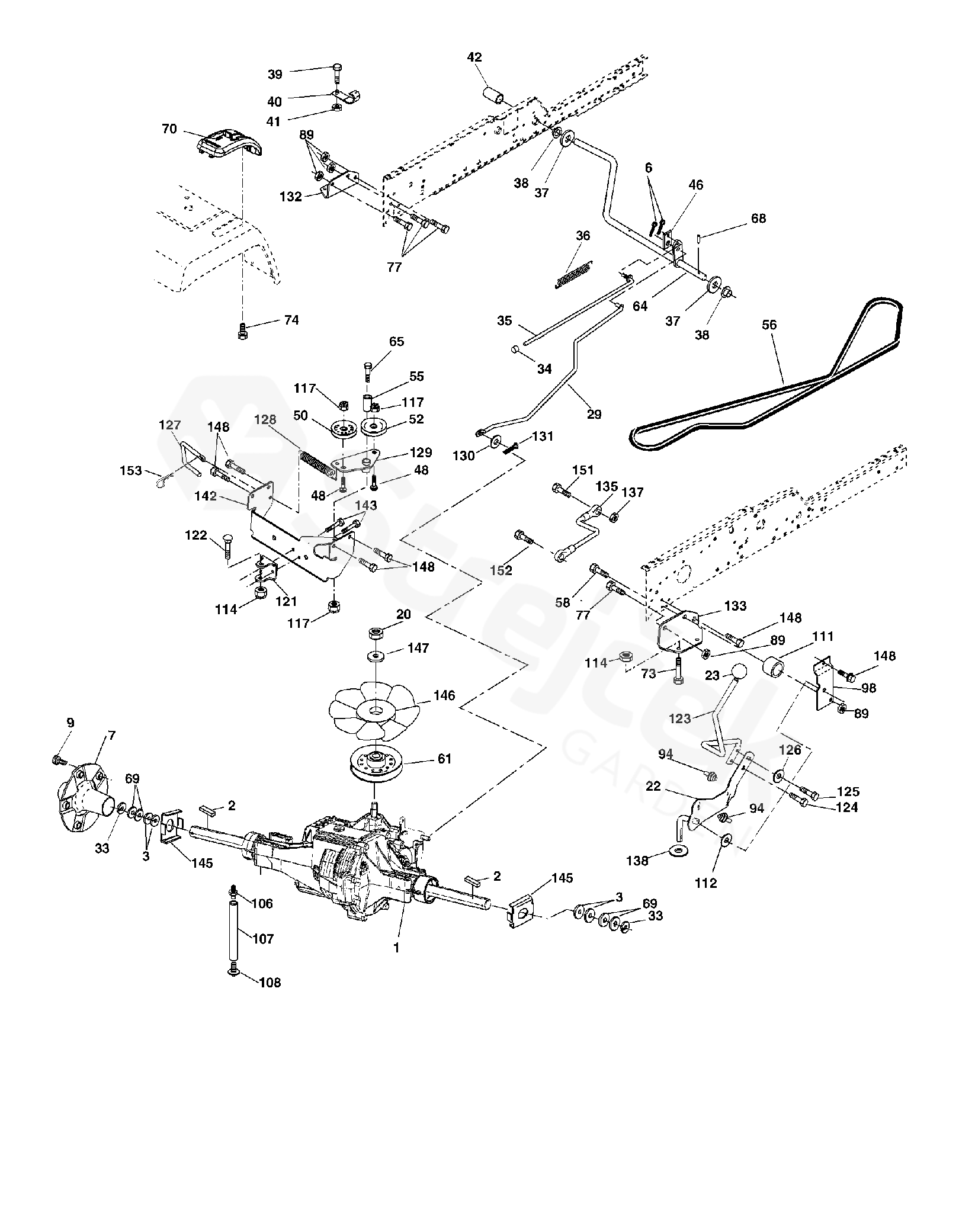

Spare parts - Partlist - SPGT25H54A SPGT25H54A, 2004-01 - DRIVE

Everything for your machines

SPGT25H54A SPGT25H54A, 2004-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SPGT25H54A, 2004-01

2	KEY	532007070
3	WASHER	532007563
6	SPLIT PIN	876020412
7	WHEEL HUB	532140507
9	BOLT	532001304
20	NUT	873940800
22	LEVER	532180235
23	KNOB	532140845
29	TIGE DE FREIN	532176600
33	E-CLIP	812000053
34	COVER	532071673
35	ROD	532137648
36	SPRING	532149412
37	WASHER	532121749
38	BUSHING	532150035
39	SCREW	874321016
40	CROCHET FIXATION DE FAISCEAU	532178575
41	NUT	873931000
42	PEDAL RUBBER	532123533
46	SPRING	532145170
48	BOLT	872110614
50	PULLEY	532104360
52	PULLEY	532127783
55	BEARING	532105706
56	V-BELT	532161597
58	BOLT	874760724
61	PULLEY	532143995
64	AXE	532176601
65	BOLT	532179613
68	PIN RETAINING SCREW	532005142
69	PODLOŽKA	532123800
70	CONSOLE.AUTO.YTGT 179121X428 179121X428	179121X428
73	BOLT	874490548
74	SCREW	532142432
77	BOLT	874780716
89	NUT	873680700
94	XMAS TREE FASTNER	532133835
98	BRACKET	532141004
106	VENT HOSE	532142577
107	HOSE	532154739
108	VENT CAP	532142578
111	SPACER	532156240
112	WASHER 178558	532178558
114	BRACKET	873800500
117	MATICE	873900600
121	CHAPPE DE FIXATION	532175611
122	BOLT	872010520
123	LEVER	532183254
124	BOLT	532165492
125	SCREW	817490510
126	WASHER	532166002
127	TRINGLE CONTROLE D'EMBRAYAGE	532177362
128	RESSORT TENSION D'AVANCEMENT	532176624
129	SUPPORT DE POULIE TENDEUR 179473	532179473
130	WASHER	532067510
131	SPLIT PIN	876020312
132	SUPPORT	532175467
133	SUPPORT	532175468
135	BIELLETTE CDE BOITE VITESSE	532177364
137	NUT	532001685
138	WASHER	532001370
142	CONSOLE	532175469
143	SCREW	817000512
145	PODLOŽKA	532163168
146	FAN	532140462
147	WASHER	532141322
148	SCREW	817000612
151	BOLT	874760514
152	BOLT	532178705
153	CLIP	532004497
