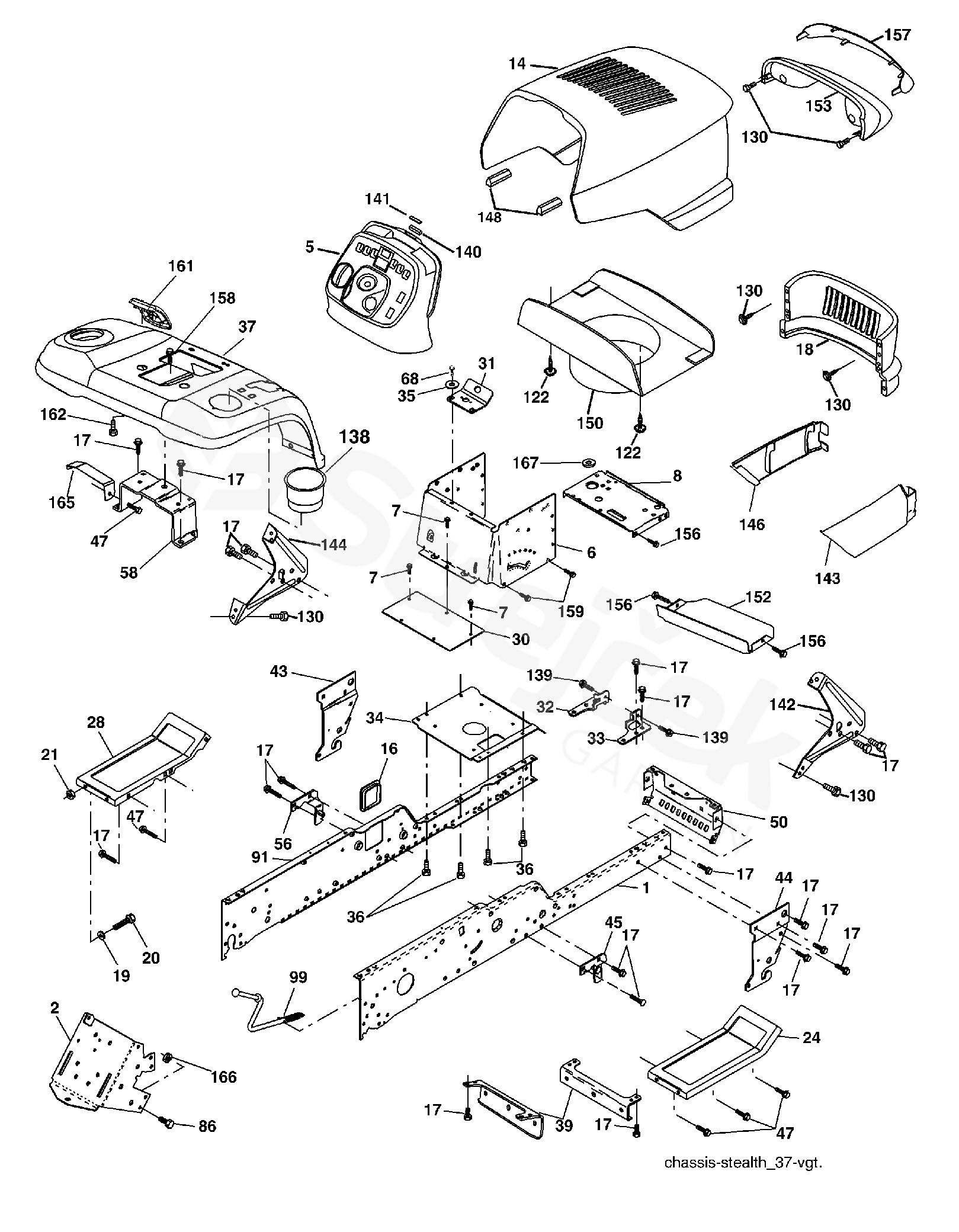

Spare parts - Partlist - PDGT26H48B PDGT26H48B, 2003-01 - CHASSIS & ENCLOSURES

Everything for your machines

PDGT26H48B PDGT26H48B, 2003-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PDGT26H48B, 2003-01

1	LONGERON DROIT	532180375
2	PLATE	532175282
5	DASH.STEALTH.BLACK SUBS/2 163976X428 163976X428	163976X428
6	PANEL	532157882
7	SCREW	817240408
8	SUPPORT*RPL.PAR 532185518 184668	532184668
14	HOOD.ASM.PNT.STEALTH 175260X428 175260X428	175260X428
16	COVER	532121794
17	SCREW	817060612
18	GRILLE 175289X428 175289X428	175289X428
19	PODLOŽKA	819131312
20	BOLT	874780616
21	NUT	532062336
24	FOOTREST RH 179717X428	179717428
28	FOOTREST LH 179716X428	179716428
30	SUPPORT	532145052
31	SUPPORT COLONNE DE DIRECTION	532161419
32	CONSOLE	532161327
33	CONSOLE	532161326
34	PLATE	532177018
35	PODLOŽKA	819111116
36	SCREW	817060512
37	FENDER.PNT.YTGT.W/SHIFT 178510X428 178510X428	178510X428
39	CONSOLE	532175278
43	BRACKET	532136939
44	BRACKET	532136940
45	CONSOLE	532176018
47	SCREW	817490608
50	POTENCE DE CHASSIS AVANT	532175476
56	CONSOLE	532176016
58	BRACKET FENDER	532183569
68	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
86	BOLT	874780716
91	LONGERON GAUCHE	532180374
99	AXE	532177143
122	SCREW	532161464
130	SCREW 171875	532171875
139	BOLT	532171873
140	PIN RETAINING SCREW	532163806
141	PIN RETAINING SCREW	532163805
142	BRACKET	532161897
143	SKIRT.GRILLE.STEALTH.RH 169847X428 169847X428	169847X428
144	BRACKET	532161900
146	SKIRT.GRILLE.STEALTH.LH 169848X428 169848X428	169848X428
148	ABSORBER	532164655
150	CONDUIT 175352	532175352
152	PLATE	532177956
153	LENS 179761	532179761
156	SCREW	817000512
157	LENS 161840	532161840
158	SCREW	817670608
159	SCREW	817000612
161	CONSOLE.FUEL.WINDOW.YTGT 179612X428 179612X428	179612X428
162	SCREW	532142432
165	BRACKET SUPPORT TANK	532183554
166	NUT	873680700
167	BAGUE NYLON 184672	532184672
