Spare parts
>
Poulan
>
TRACTORS/RIDE MOWERS
>
PKFTH25540 PKFTH25540, 9602200101, 2005-06
>

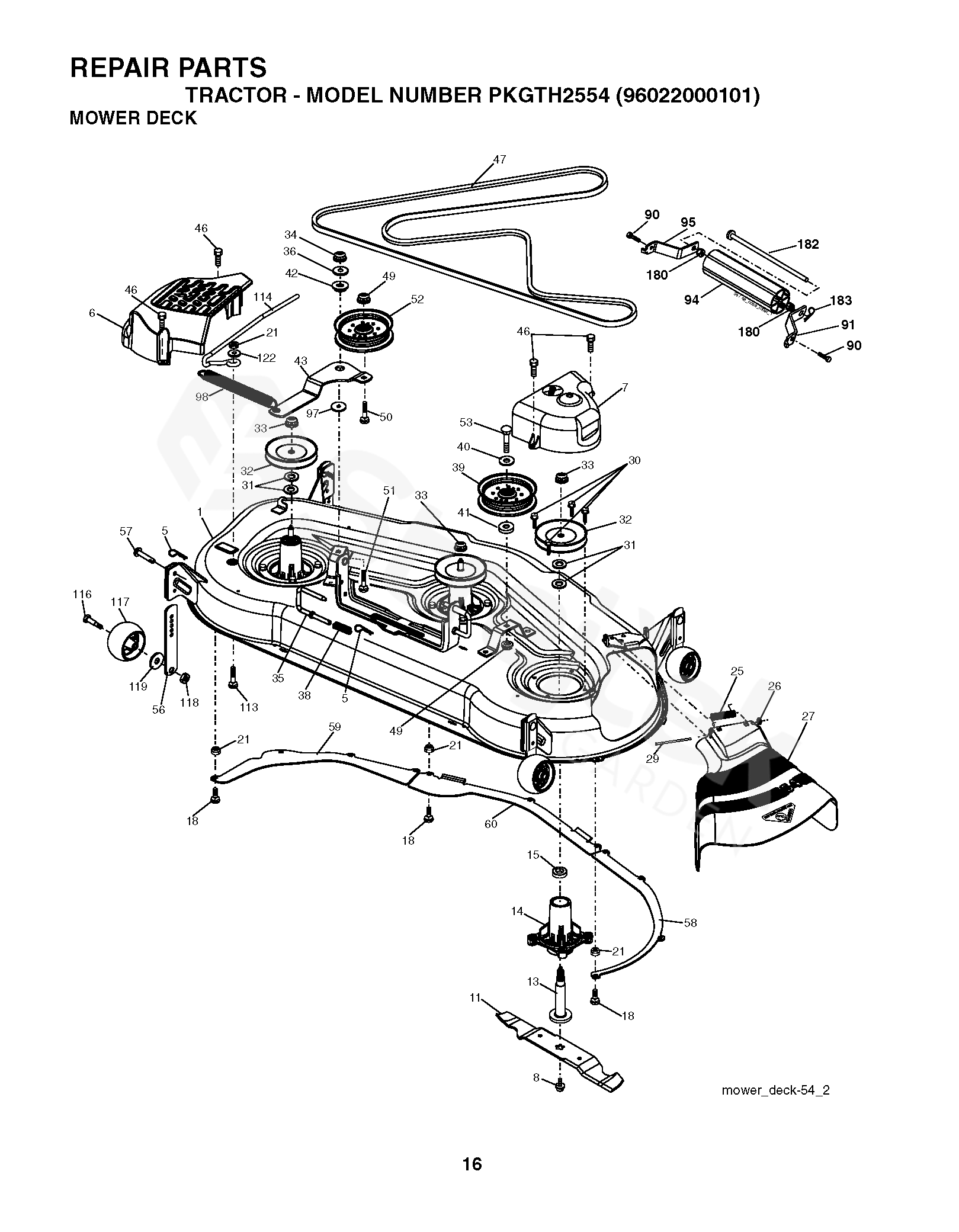

MOWER DECK / CUTTING DECK
Back to
PKFTH25540
PKFTH25540, 9602200101, 2005-06
MOWER DECK / CUTTING DECK
PKFTH25540
PKFTH25540, 9602200101, 2005-06
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PKFTH25540, 9602200101, 2005-06
1
DECK WELDMENT
532196100
6
COVER
LH
532187297
7
COVER
RH
532188187
8
BOLT
532174365
11
BLADE
FOR MULCHING MOWERS ONLY
532187254
13
SHAFT ASM MANDREL
532187291
14
BEARING HOUSING
532187281
15
BEARING
532110485
25
SPRING
532178102
26
MATICE
532110452
27
DEFLECTOR
532187257
29
HRÍDEL
532131491
30
SCREW
532173984
31
PODLOŽKA
532187690
32
PULLEY
532173436
33
NUT
532178342
34
00
532736806
35
PIN SUSPENSION REAR
532188635
38
SPRING COMPRESSION PULL
532188657
39
IDLER PULLEY
532187284
42
SCREW
601001312
43
LEVER
532196216
46
SCREW
532137729
47
V-BELT
532191273
52
IDLER PULLEY
532188460
56
BAR
532155986
57
PIN RETAINING SCREW
532156941
58
BAFFLE
532187342
59
BAFFLE LEFT
532187344
60
BAFFLE CENTER 54" MOWER
532187607
91
BRACKET
RH
532180535
94
ROLLER
532176066
95
BRACKET
LH
532180534
98
SPRING CLUTCH DRIVE
532187282
114
ROD TENSION RELIEF
532187556
116
BOLT
532193406
117
KOLO
532174873
122
BUSHING
532187557
182
ROD ROLLER NOSE
532179127
183
CLIP
532163552
MANDREL
MANDREL ASM SERVICE
532187292
