Spare parts > Poulan > TRACTORS/RIDE MOWERS > X12542A X12542A, 1993-01 > ELECTRICAL
Back to

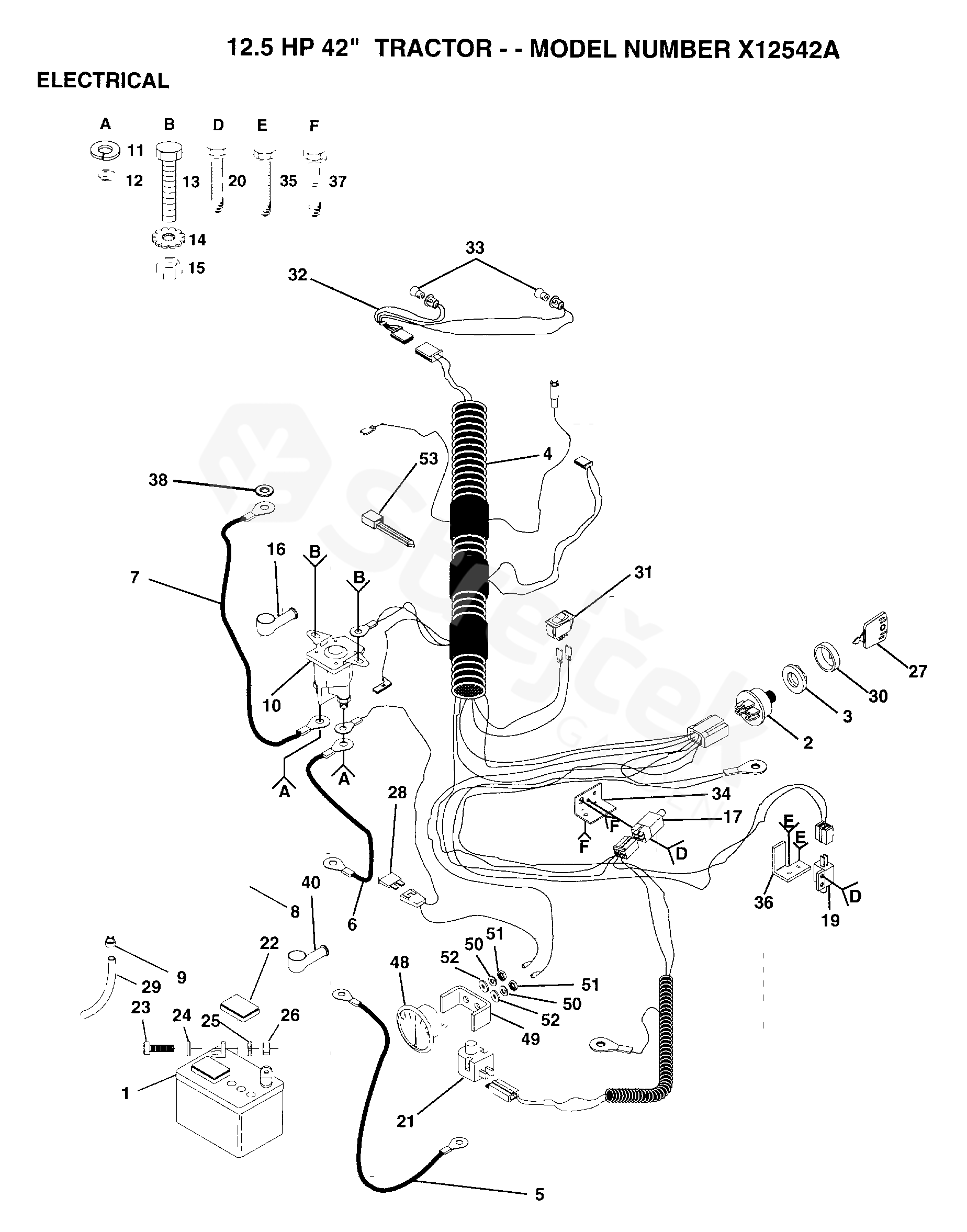

ELECTRICAL
X12542A X12542A, 1993-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For X12542A, 1993-01
1 BATTERY 532121265
3 NUT 532109788
5 TIRE 532004607
6 CABLE 532132202
7 CABLE 532124770
8 BOX 532133753
9 CLAMP 532109596
10 SOLENOID 532138406
11 WASHER 810090400
12 NUT 873350400
13 BOLT 874780408
14 WASHER 811050400
15 MATICE 532053838
16 COVER 532000719
17 SWITCH 532109553
19 SWITCH 532104445
20 SCREW 817021008
21 SWITCH 532121305
22 COVER 532121264
23 BOLT 874760412
24 WASHER 819091016
25 WASHER 810040400
26 NUT 873220400
27 KEY 532122147
28 FUSE 532006347
29 HOSE 532105687
30 PROTECTOR 532123620
31 SWITCH 532110712
32 CABLE ASSY 532136849
33 BULB 532007662
34 PLATE - BLOCK OFF 60 BK 539130890
35 SCREW 817021008
36 BRACKET 532108236
37 SCREW 817021008
38 LOCKWASHER 811150400
48 AMMETER 532124900
49 BRACKET 532131708
50 WASHER 810101000
51 NUT 873911000
52 WASHER 819070818
53 HOOP 532007192
