Spare parts
Everything for your machines
Spare parts
>
Poulan
>
TRACTORS/RIDE MOWERS
>
279370 279370, 2003-01
>

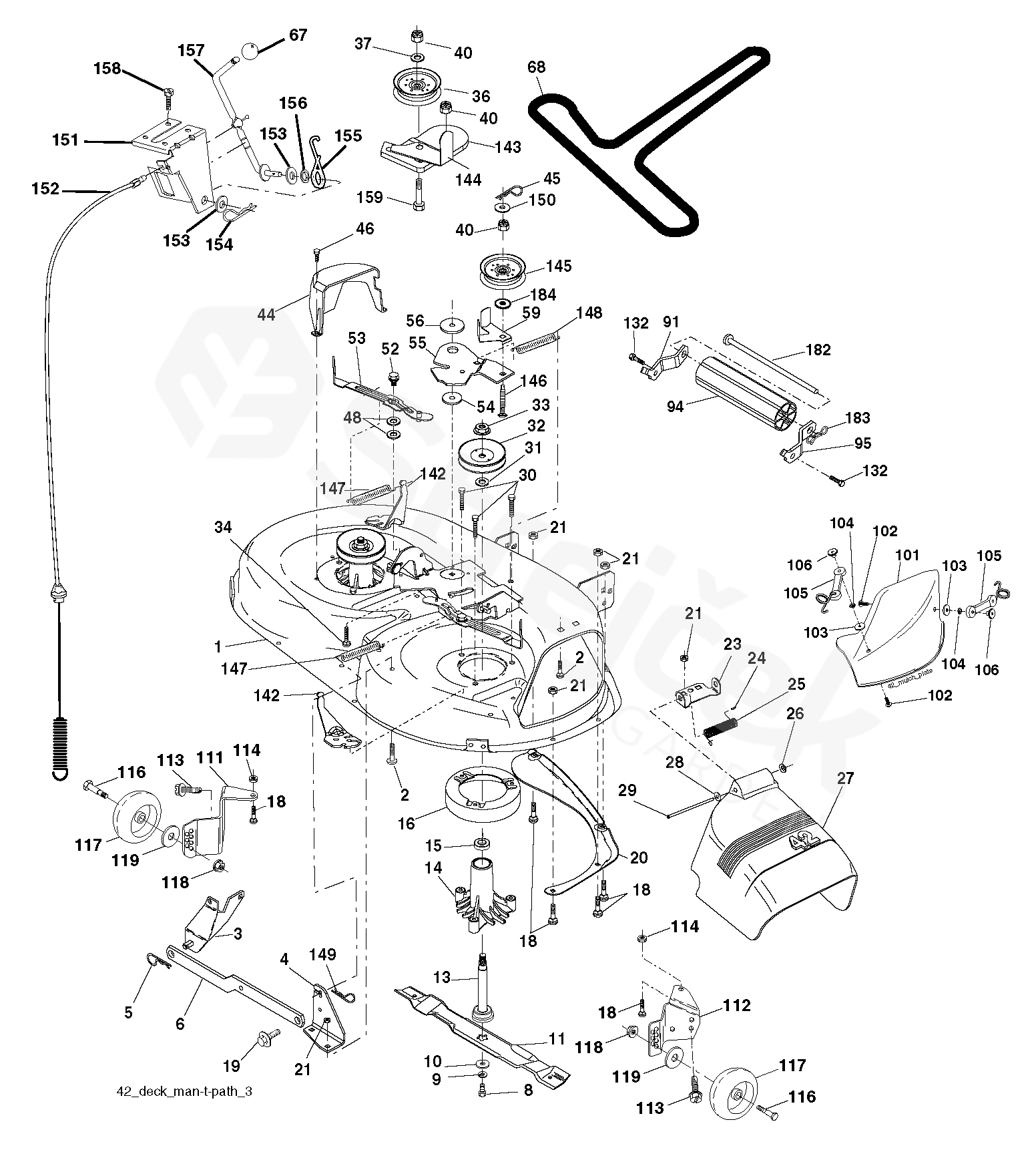

MOWER DECK / CUTTING DECK
Back to
279370
279370, 2003-01
MOWER DECK / CUTTING DECK
279370
279370, 2003-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
279370, 2003-01
1
HOUSING ASM MOWER 42"
532165892
2
BOLT
872140506
3
BRACKE
532138017
4
BRACKET
532165460
5
SPRING
532004939
6
LEVER
532178024
8
BOLT
532850857
9
PODLOŽKA
810030600
10
PODLOŽKA
532140296
11
RIDE ON BLADE
(For mulching mowers only)
532134149
13
SHAFT
532137645
14
BEARING HOUSING
532128774
15
BEARING
532110485
16
STRIPPER. MANDREL.BLACK
532174493
18
BOLT
872140505
19
SPEC. BOLT
532132827
20
KOLEJNICE
532159770
21
MATICE
873680500
23
BRACKET DEFLECTOR MO
532177563
24
HUB CAP
532105304
25
SPRING
532123713
26
MATICE
532110452
27
SHIELD DEFL ECTOR
532171859
28
WASHER
819111016
29
HRÍDEL
532131491
30
SCREW
532173984
31
WASHER
532129963
32
PULLEY
532173436
33
NUT
532178342
34
BOLT
872110614
36
PULLEY
532173438
37
PODLOŽKA
819131316
40
MATICE
873680600
44
GUARD
532140088
45
CLIP
532004497
46
SCREW
532137729
48
PODLOŽKA
532133944
52
BOLT
532139888
53
ARM ASM PAD BRAKE
532184907
54
PODLOŽKA
532178515
55
LEVER
532155046
56
SPACER
532122052
59
GUIDE
532173442
67
KNOB
532171598
68
BELT
532144959
91
BRACKET
532180532
94
ROLLER
532132264
95
BRACKET
532180533
101
COVER
532136420
102
SCREW
871081010
103
WASHER
819061216
104
WASHER
810071000
105
LATCH
532160793
106
NUT
532002029
111
BRACKET
532179292
112
BRACKET
532179293
113
SCREW
817060510
114
NUT
873510500
116
BOLT
532004898
117
WHEEL
532165746
118
MATICE
873930600
119
PODLOŽKA
819121414
132
SCREW
817000612
142
BRACKET
532165890
143
BRACKET
532157109
144
BELT GUIDE
532173441
145
PULLEY
532173437
146
SCREW
532173443
147
SPRING
532131335
148
SPRING
532169022
149
SPRING
532165898
150
WASHER
819091216
151
BRACKET
532169670
152
WIRE
532169676
153
WASHER
532169674
154
PIN RETAINING SCREW
532169675
155
SPRING
532169671
156
SPACER
532169672
157
CONTROL
532169669
158
SCREW
817720408
159
BOLT
872140614
182
PIN RETAINING SCREW
532179126
183
CLIP
532163552
184
WASHER
819131410
BLADE
(For bagging or discharging)
532138971
