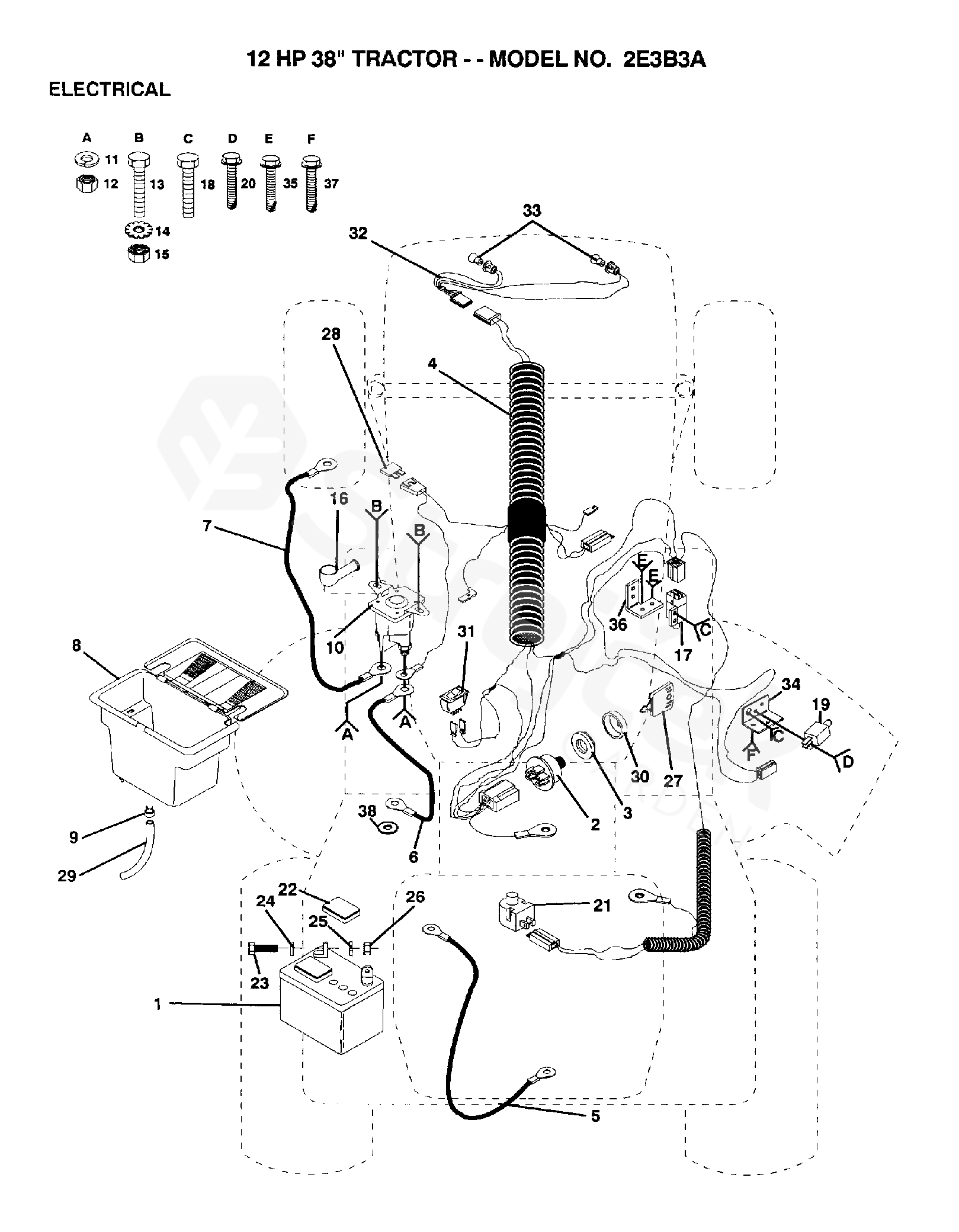

Spare parts > Poulan > TRACTORS/RIDE MOWERS > 2E3B3A 2E3B3A, 2006-01 > ELECTRICAL
Back to
ELECTRICAL
2E3B3A 2E3B3A, 2006-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 2E3B3A, 2006-01
1 BATTERY 532121265
3 NUT 532109788
4 MOUNT. STRUT 539132017
5 TIRE 532004607
6 CABLE 532132202
7 CABLE 532004799
8 CASE 532129965
9 CLAMP 532109596
10 SOLENOID LT10/36 532109081
11 WASHER 810090400
12 NUT 873350400
13 BOLT 874780408
14 WASHER 811050400
15 MATICE 532053838
16 COVER 532000719
17 SWITCH 532109553
18 SCREW 817021008
19 SWITCH 532104445
20 SCREW 817021008
21 SWITCH 532121305
22 COVER 532121264
23 BOLT 874760412
24 WASHER 819091016
25 WASHER 810040400
26 NUT 873220400
28 FUSE 532006347
29 HOSE 532105687
30 PROTECTOR 532123620
31 SWITCH 532110712
32 HARNESS 532136850
33 BULB 532004152
34 BRACKET 532108236
35 SCREW 817021008
36 PLATE - BLOCK OFF 60 BK 539130890
37 SCREW 817021008
38 LOCKWASHER 811150400
