XC1182HB XC1182HB, 1991-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

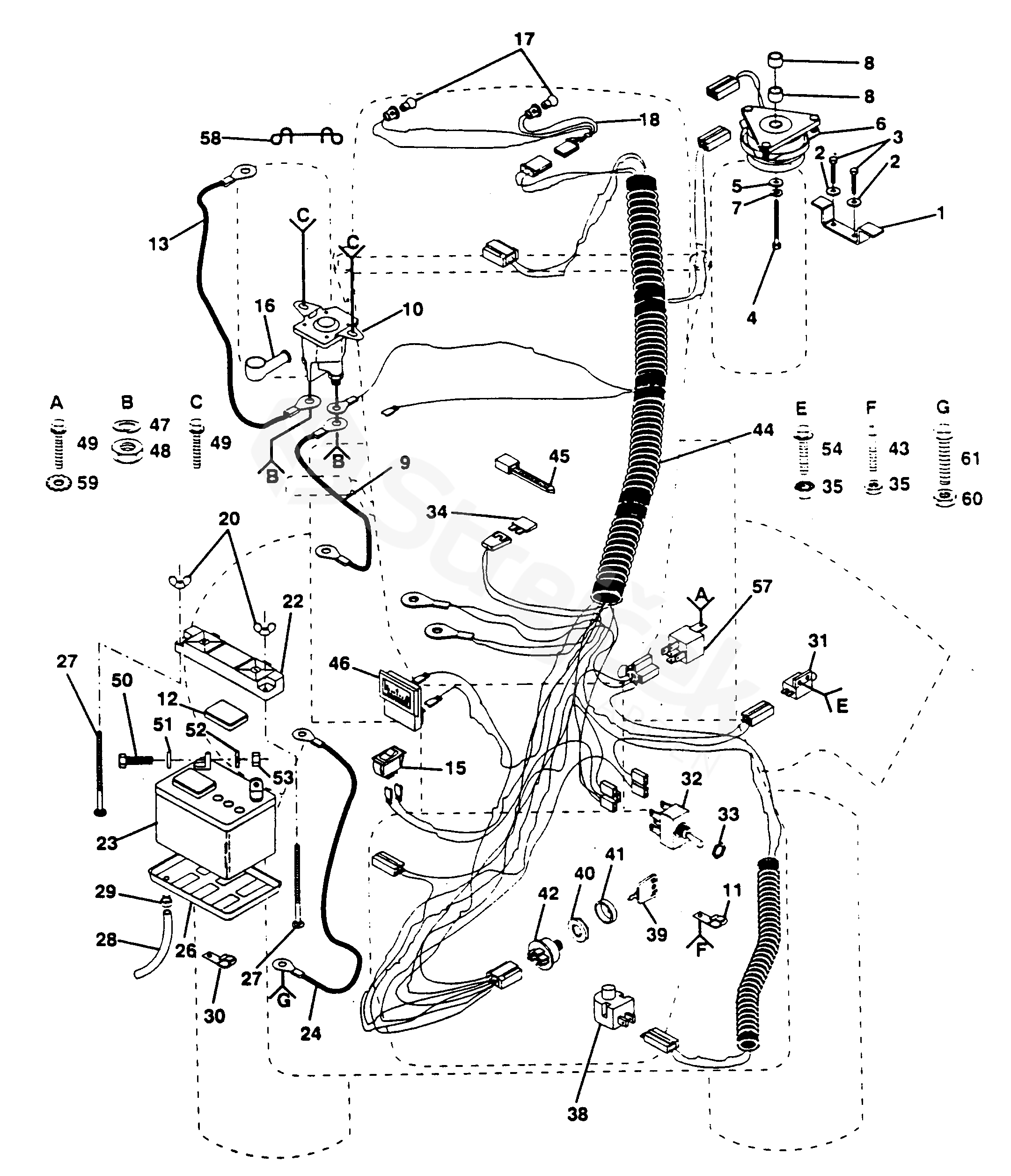

Other parts For XC1182HB, 1991-01

1	STOP	532110882
2	WASHER	810040600
3	BOLT	874780612
4	BOLT	871130724
5	WASHER	532126197
6	CLUTCH	532109550
7	WASHER	810040700
8	SPACER	532106367
9	CABLE	532124770
10	SOLENOID LT10/36	532109081
11	CLIP	532124967
12	COVER	532121264
13	CABLE	532005115
15	SWITCH	532110712
16	COVER	532124783
17	BULB	532124893
18	HARNESS	532110859
20	WING NUT	532123198
22	PROTECTOR	532102476
23	BATTERY	532121537
24	CABLE	532124773
26	BATTERIE TRAY	532124886
27	BOLT	872240460
28	PIPE	532100541
29	CLAMP	532109596
30	COLLIER 100207K	532100207
31	SWITCH	532104445
32	SWITCH	532126018
33	NUT	532124932
34	FUSE	532108824
35	NUT	873951000
38	SWITCH	532121305
39	KEY	532122147
40	NUT	532109788
41	BEZEL	532109787
42	SWITCH	532125104
43	SCREW	874641008
45	STRAP	532124756
46	AMMETER	532122822
47	WASHER	810090400
48	NUT	873350400
49	SCREW	817190408
50	BOLT	874760412
51	WASHER	819091016
52	WASHER	810040400
53	NUT	873220400
54	SCREW	871031008
57	RELAY	532109748
58	TIE WIRE	532121465
59	PODLOŽKA	811050600
60	MATICE	873680600
61	BOLT	874760612
	INSTRUCTION Not Shown	532101572
