Poulan
>
TRACTORS/RIDE MOWERS
>
XC1182HB XC1182HB, 1991-01
>

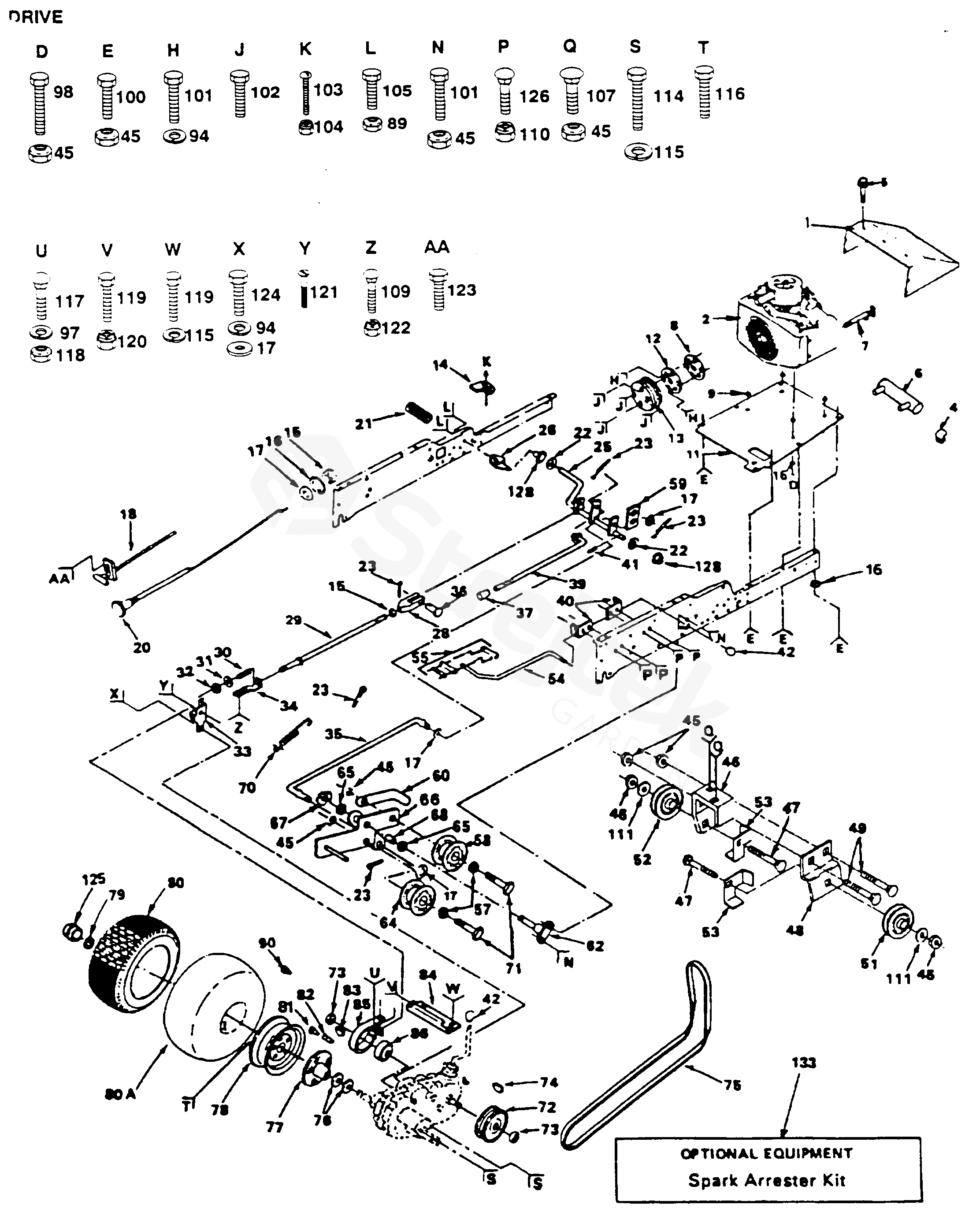

DRIVE
Back to
XC1182HB
XC1182HB, 1991-01
DRIVE
XC1182HB
XC1182HB, 1991-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XC1182HB, 1991-01
5
SCREW
817720408
6
MUFFLER EXHAUST
532124532
7
VALVE
532009767
8
PROTECTOR
532110947
9
SPACER
532110869
11
SUPPORT
532110867
12
ADAPTER
532104577
13
PULLEY
532121355
14
SWITCH
532005304
15
NUT
873610600
16
PODLOŽKA
811050600
17
PODLOŽKA
819131316
18
THROTTLE CONTROL
532121467
20
CHOKE CONTROL
532121470
21
PEDAL RUBBER
532124872
22
WASHER
532121749
23
SPLIT PIN
876020312
25
SHAFT
532104375
26
SUPPORT
532104601
28
YOKE
532100604
29
TIGE DE FREIN 5308J
532005308
30
SPRING
532007241
31
WASHER
819131614
32
NUT
873530600
33
BRAKE BRKT ASSY T
532124692
34
ROD
532007229
35
CONNECTION ROD
532101356
36
TIGE DE CHAPE 5102J
532005102
37
COVER
532071673
39
ROD
532109767
40
SUPPORT
532105598
41
PIN RETAINING SCREW
532005142
42
KNOB
532121466
45
MATICE
873680600
46
BRACKET
532121063
47
BOLT
872110614
48
BRACKET
532122825
49
BOLT
872140606
51
PULLEY
532102403
52
PULLEY
532101344
53
BELT GUIDE
532122824
54
ROD
532122253
55
LINK
532122268
57
WASHER
819131413
58
PULLEY
532104360
59
SPRING
532121358
60
BELT GUIDE
532121360
62
SUPPORT
532101358
64
PULLEY
532121361
65
WASHER
532000207
66
BRACKET
532121356
67
RETAINING RING
812000039
68
BEARING
532105706
70
SPRING
532121357
71
BOLT
874760628
72
PULLEY
532120332
73
NUT
532009204
74
KEY
532124708
75
BELT
532110883
76
WASHER
532007563
77
HUB
532124683
78
RIM
532125070
79
RETAINING RING
812000034
80
TIRE
532004607
81
CAP VALVE
532059192
82
NIPPLE
532065139
83
WOODRUFF KEY
532125096
84
SUPPORT
532120404
85
BRAKE BAND
532101122
86
DRUM
532000214
89
NUT
873680400
90
GREASE
532124860
94
WASHER
810040600
97
WASHER
810040400
98
BOLT
874780620
100
BOLT
874760612
101
BOLT
874780616
102
SCREW
817190516
103
SCREW
874321016
104
LOCK NUT
873631000
105
BOLT
874760412
107
BOLT
872110606
109
BOLT
872110506
110
MATICE
873680500
111
WASHER
819131612
114
BOLT
874760720
115
WASHER
810040700
116
BOLT
532001304
117
BOLT
872140405
118
NUT
873220400
119
BOLT
874760716
120
NUT
873680700
121
SCREW
874370612
122
LOCKNUT
532124949
123
ROD Hinge
817720410
124
BOLT
874760614
126
BOLT
872140506
128
NYLINER
532110895
133
SPARK ARREST KIT
532120689
80A
HOSE
532007154
