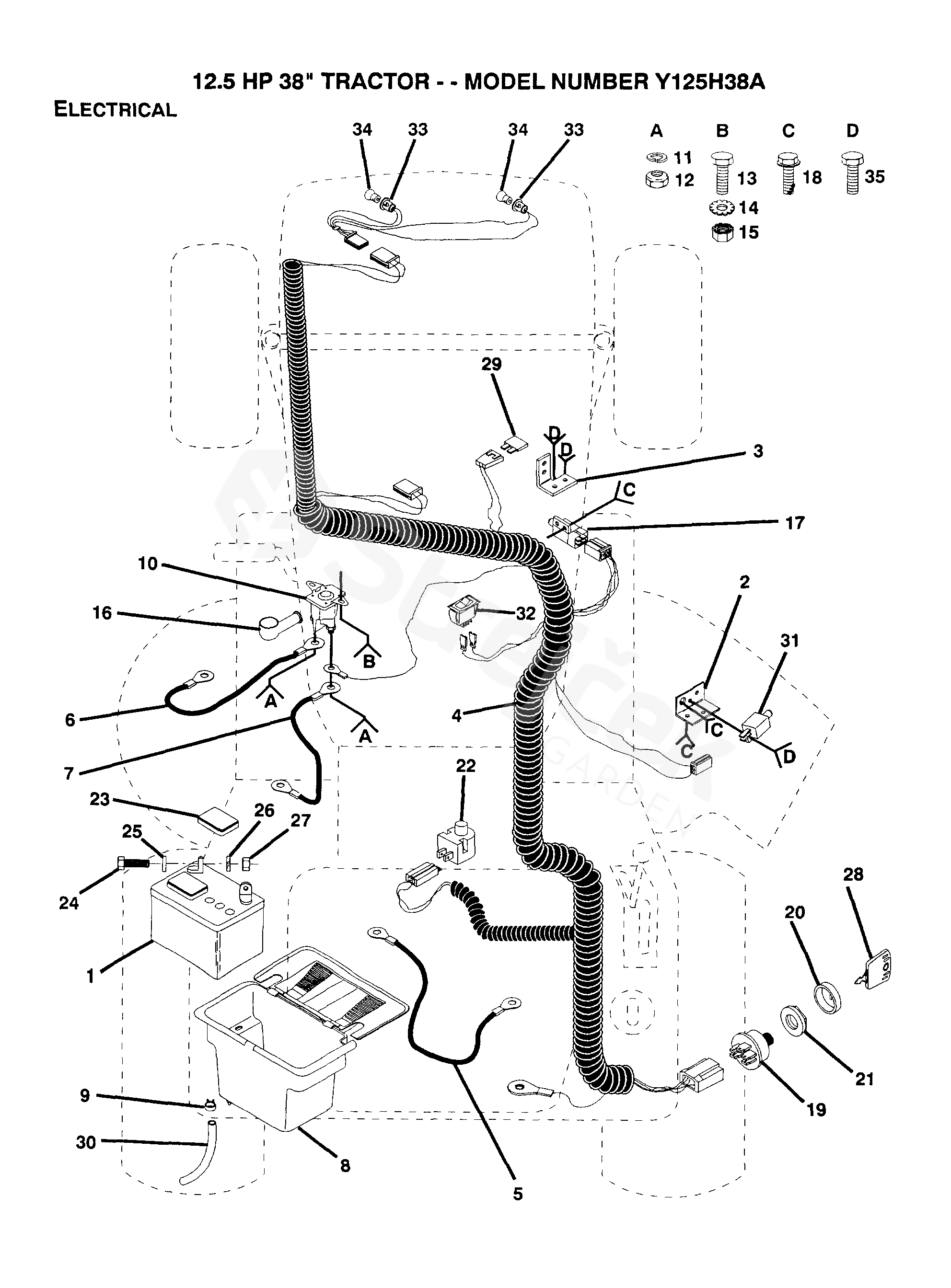

Spare parts > Poulan > TRACTORS/RIDE MOWERS > Y125H38A Y125H38A, 1992-01 > ELECTRICAL
Back to
ELECTRICAL
Y125H38A Y125H38A, 1992-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Y125H38A, 1992-01
1 BATTERY 532121265
2 PLATE - BLOCK OFF 60 BK 539130890
3 BRACKET 532108236
4 HARNESS 532134064
5 TIRE 532004607
6 CABLE 532132202
7 CABLE 532004799
8 CASE 532129965
9 CLAMP 532109596
10 SOLENOID LT10/36 532109081
11 WASHER 810090400
12 NUT 873350400
13 BOLT 874780408
14 WASHER 811050400
15 MATICE 532053838
16 COVER 532000719
17 SWITCH 532109553
18 SCREW 817021008
20 PROTECTOR 532123620
21 NUT 532109788
22 SWITCH 532121305
23 COVER 532121264
24 BOLT 874760412
25 WASHER 819091016
26 WASHER 810040400
27 NUT 873220400
28 KEY 532122147
29 FUSE 532006347
30 HOSE 532105687
31 SWITCH 532104445
32 SWITCH 532110712
33 HARNESS 532110859
34 BULB 532007662
35 SCREW 817021008
