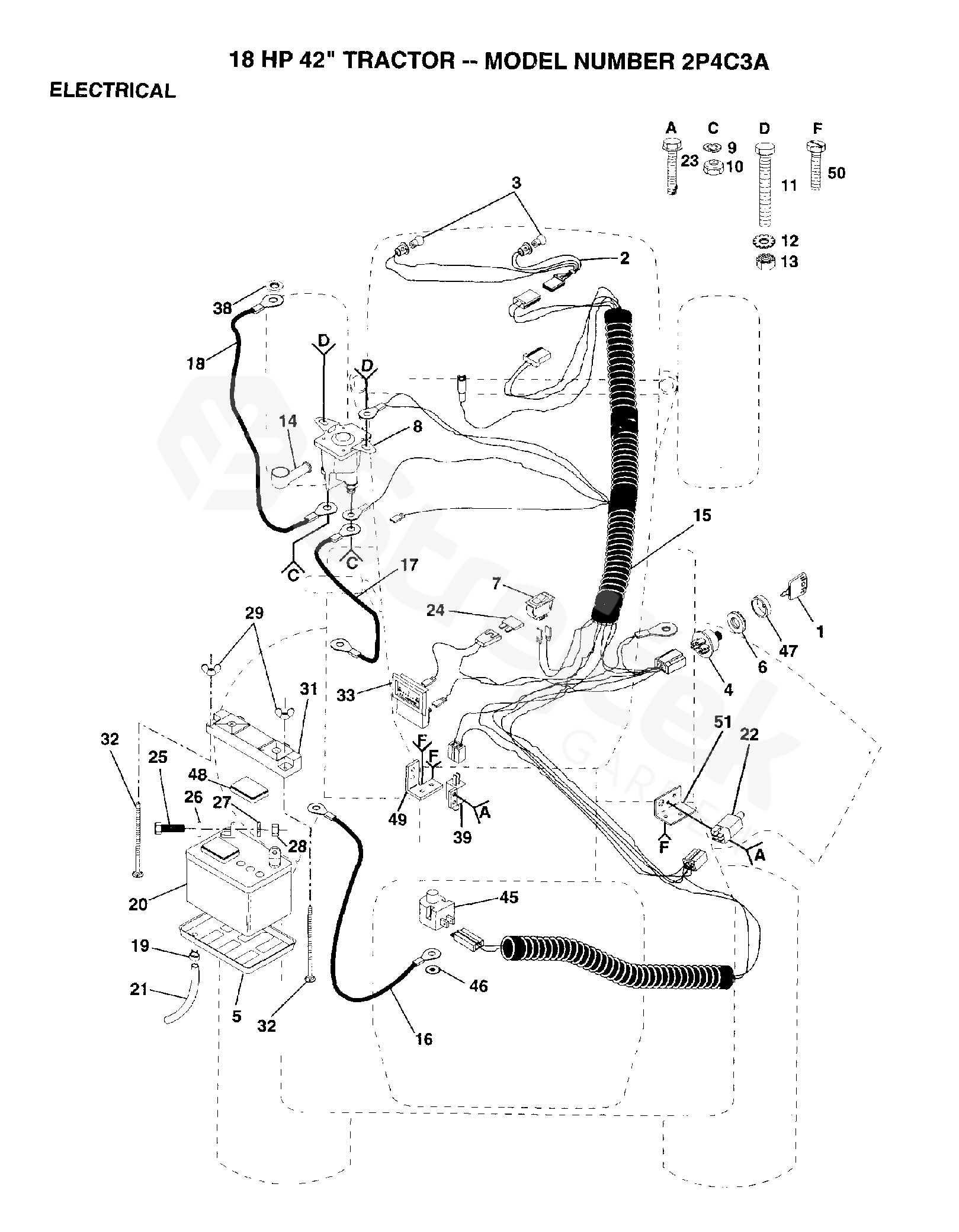

Spare parts > Poulan > TRACTORS/RIDE MOWERS > 2P4C3A 2P4C3A, 2006-01 > ELECTRICAL
Back to
ELECTRICAL
2P4C3A 2P4C3A, 2006-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 2P4C3A, 2006-01
1 KEY 532122147
2 HARNESS 532136850
3 BULB 532004152
5 TRAY 532007603
6 NUT 532109788
7 SWITCH 532110712
8 SOLENOID 532138406
9 WASHER 810090400
10 NUT 873350400
11 BOLT 874780408
12 WASHER 811050400
13 MATICE 532053838
14 COVER 532000719
16 CABLE 532004799
18 TIRE 532004607
19 CLAMP 532109596
20 BATTERY 532121537
21 PIPE 532007604
22 SWITCH 532104445
23 SCREW 817021008
24 FUSE 532006347
25 BOLT 874760412
26 WASHER 819091016
27 WASHER 810040400
28 NUT 873220400
29 WING NUT 532123198
32 BOLT 872240460
33 AMPEREMETER 532121433
38 LOCKWASHER 811150400
39 SWITCH 532109553
45 SWITCH 532121305
46 PODLOŽKA 811050600
47 PROTECTOR 532123620
48 COVER 532121264
49 PLATE - BLOCK OFF 60 BK 539130890
50 SCREW 817021008
51 BRACKET 532108236
