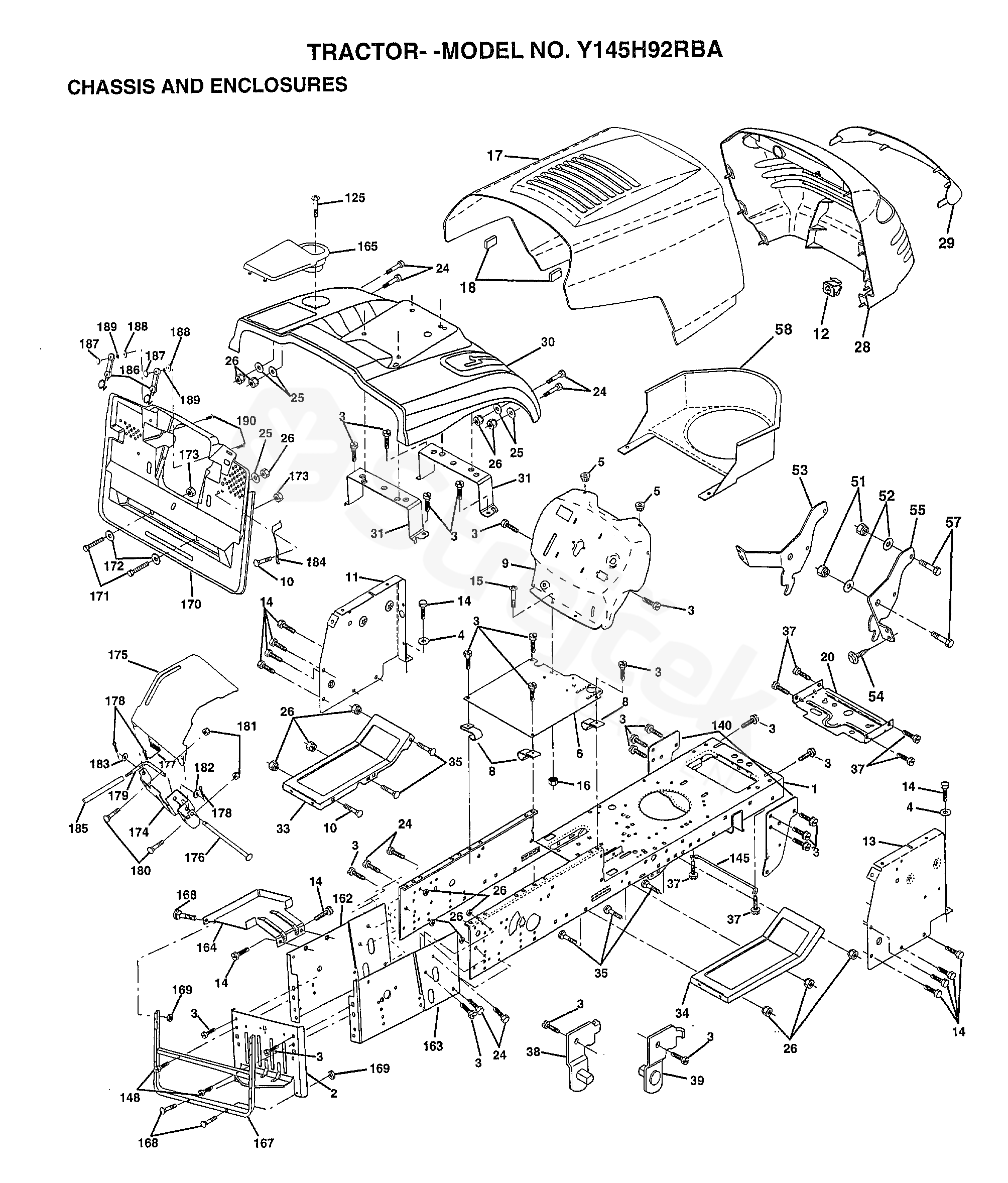

Y145H92RBA Y145H92RBA, 1999-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Y145H92RBA, 1999-01

1	CHASSIS	532165480
2	PLATE	532165606
3	SCREW	817490612
4	WASHER	819131216
5	DAMPER	532155272
6	PLATE	532155923
8	CLIP	532126471
10	BOLT	872140608
11	PLATE	532155927
12	CLIP	532145660
13	PLATE	532157262
14	SCREW	817490608
15	SCREW	874180512
16	NUT	873310500
17	HOOD LT, METAL	532159639
18	DAMPER	532126938
20	PLATE	532156437
24	BOLT	874780616
25	PODLOŽKA	819131312
26	NUT	532062336
28	GRILL	532157373
29	LENS	532140273
30	FENDER	532165713
31	BRACKET	532165156
33	SUPPORT	532145244
34	SUPPORT	532145243
35	BOLT	872110606
37	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
38	BRACKET	532139886
39	BRACKET	532139887
51	MATICE	873800400
52	PODLOŽKA	819091416
53	BRACKET	532144697
54	SCREW	532161464
55	BRACKET	532144696
57	BOLT	874780412
58	AIR CONDUCTOR	532150127
125	SCREW	874180412
140	BRACKET	532158418
145	SHAFT	532156524
148	SCREW	817490620
162	BRACKET	532165672
163	BRACKET	532165673
164	SUPPORT	532165605
165	COVER	532165742
167	SUPPORT	532165779
168	BOLT	872050412
169	LOCKNUT	532123976
170	COVER	532165607
171	BOLT	874520628
172	WASHER	819132016
173	MATICE	873510600
174	BRACKET	532165939
175	PROTECTOR	532166212
176	LOCKING PIN	532128600
177	SPRING	532132796
178	GOUPILLE NPCREMP:532003145*	876520312
179	ROD	532165942
180	BOLT	874760516
181	MATICE	873680500
182	WASHER	532138200
183	PODLOŽKA	819131316
184	BRACKET	532166139
185	PIPE	532165940
186	LATCH	532160793
187	NUT	532124005
188	WASHER	819061216
189	LOCKWASHER	532001863
190	SCREW	871161010
	PLUG	532005479
