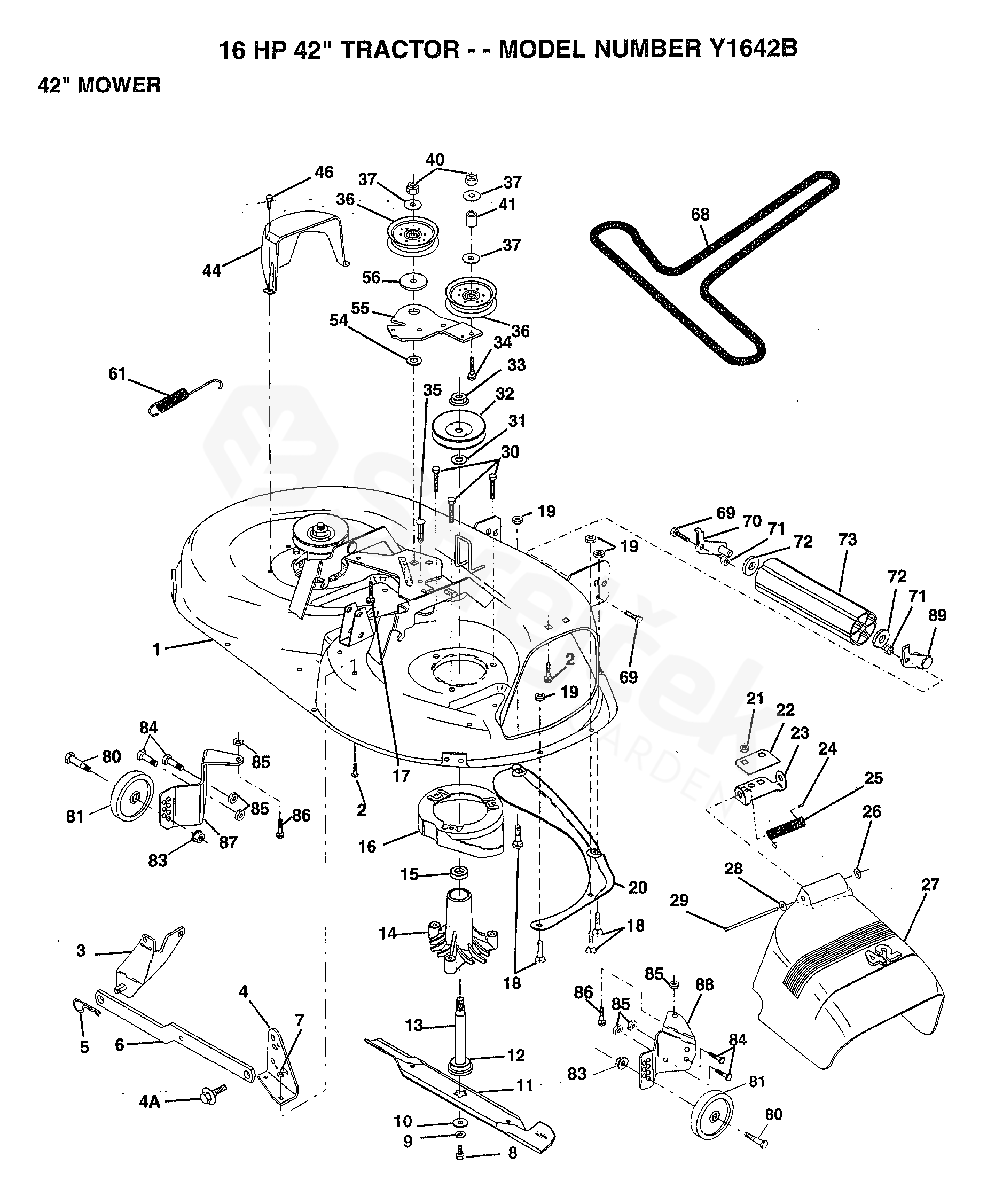

Y1642B Y1642B, 1993-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Y1642B, 1993-01

1	SHEARING UNIT 42"	532138024
2	BOLT	872140506
3	BRACKE	532138017
4	BRACKET	532138440
5	SPRING	532004939
6	LEVER	532130832
7	BRACKET	873800500
8	BOLT	532850857
9	PODLOŽKA	810030600
10	WASHER	532129962
11	BLADE	532131323
12	BEARING	532129895
13	SHAFT	532137645
14	BEARING HOUSING	532128774
15	BEARING	532110485
16	HOLDER	532136929
17	BOLT	872110616
18	BOLT	532066238
19	BRACKET	873800500
20	BAFFLE	532136888
21	MATICE	873680500
22	PLATE	532134753
23	BRACKET	532131267
24	HUB CAP	532105304
25	SPRING	532106734
26	MATICE	532110452
27	DEFLECTOR	532130968
28	WASHER	819111016
29	HRÍDEL	532131491
30	MANDREL BOLT	532078158
31	WASHER	532129963
32	PULLEY	532129861
33	NUT	532137266
34	BOLT	872110622
35	XMAS TREE FASTNER	532133835
36	PULLEY	532104360
37	PODLOŽKA	819131316
40	MATICE	873680600
41	IDLER SPACER	532132823
44	PROTECTOR, L.H.	532134236
46	SCREW	532137729
54	WASHER	532133943
55	LEVER	532133844
56	SPACER	532122052
61	SPRING	532131950
68	BELT	532130969
69	BOLT	874760614
70	BRACKET	532132274
71	MATICE	873680600
72	WASHER	819171416
73	ROLLER	532132264
80	BOLT	532004898
81	WHEEL GAUGE	532105455
83	NUT	532062336
84	BOLT	874760512
85	NUT	873310500
86	BOLT	872110504
87	BRACKET	532132263
88	BRACKET	532132262
89	BRACKET	532132273
	MANDREL	532130794
4A	SPEC. BOLT	532132827
