Spare parts > Poulan > TRACTORS/RIDE MOWERS > POGT20T48STA POGT20T48STA, 2003-01 > DRIVE
Back to

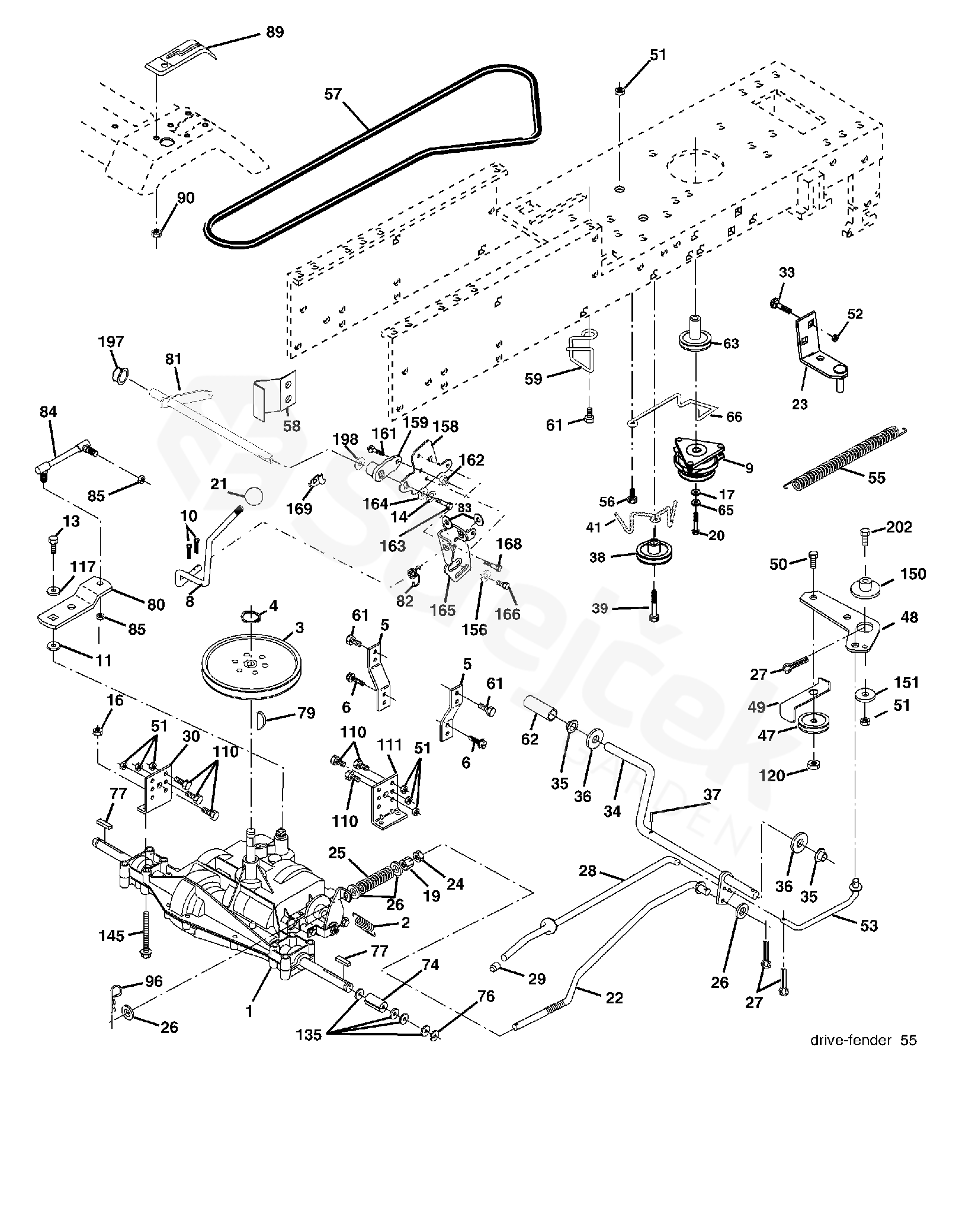

DRIVE
POGT20T48STA POGT20T48STA, 2003-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For POGT20T48STA, 2003-01
2 SPRING 532110422
3 PULLEY 532121327
4 RING 812000004
5 STRAP TORQUE 532123787
6 SCREW 817060512
8 LEVER 532166020
9 CLUTCH ELEC. 532179334
10 SPLIT PIN 876020416
11 WASHER 532105701
13 BOLT 871040412
14 WASHER 810040400
16 BRACKET 873800500
17 WASHER 532126197
19 NUT 532062336
20 BOLT 532173937
21 KNOB 532140845
22 TIGE DE CDE DE FREIN 532145340
23 BRACKET 532178289
24 NUT 873350600
25 SPRING 532126909
26 WASHER 532067510
27 SPLIT PIN 876020412
28 SHAFT 532175765
29 COVER 532071673
30 BRACKET 532123780
33 BOLT 872140608
34 SHAFT 532175578
35 BEARING 532120183
36 WASHER 819211616
37 GOUPILLE NPCREMP:532002882* 532001572
38 PULLEY 532179114
39 BOLT 874760648
41 BELT GUIDE 532175556
47 PULLEY 532127783
48 GUIDE 532154407
49 BELT GUIDE 532123205
50 BOLT 872110612
51 MATICE 873680600
52 MATICE 532145212
53 LINK 532105710
55 PRUŽINA 532105709
56 SCREW 817060620
57 BELT 532163817
58 HOLDER 532123792
59 BELT GUIDE 532169691
61 SCREW 817120614
62 PEDAL RUBBER 532008883
63 PULLEY
174607 		532174607
65 WASHER 810040700
66 TENSIONER 532154778
74 SPACER 532108097
76 E-CLIP 812000053
77 CLAVETTE PARALLELE 9396E 532009396
79 WASHER 532002228
80 LEVER 532123794
81 SHAFT 532165598
82 SPRING 532165711
83 WASHER 819171216
84 BIELLETTE A ROTULES 532166230
85 NUT 532150360
90 SCREW 532142432
96 CLIP 532004497
110 BOLT 874780612
111 BRACKET 532123776
117 WASHER 819091216
120 MATICE 873900600
145 BOLT 874490540
150 SPACER 532175456
151 PODLOŽKA 819133210
156 WASHER 532166002
158 BRACKET 532165589
159 LEVER 532183900
161 1/4-20X3/4 CARR BLT 872140406
162 NUT 873680400
163 BOLT 874780416
164 WASHER 819091010
165 BRACKET 532165623
166 SCREW 532166880
168 BOLT 532165492
169 RETAINER 532165580
197 SLEEVE 532169613
198 WASHER 532169593
