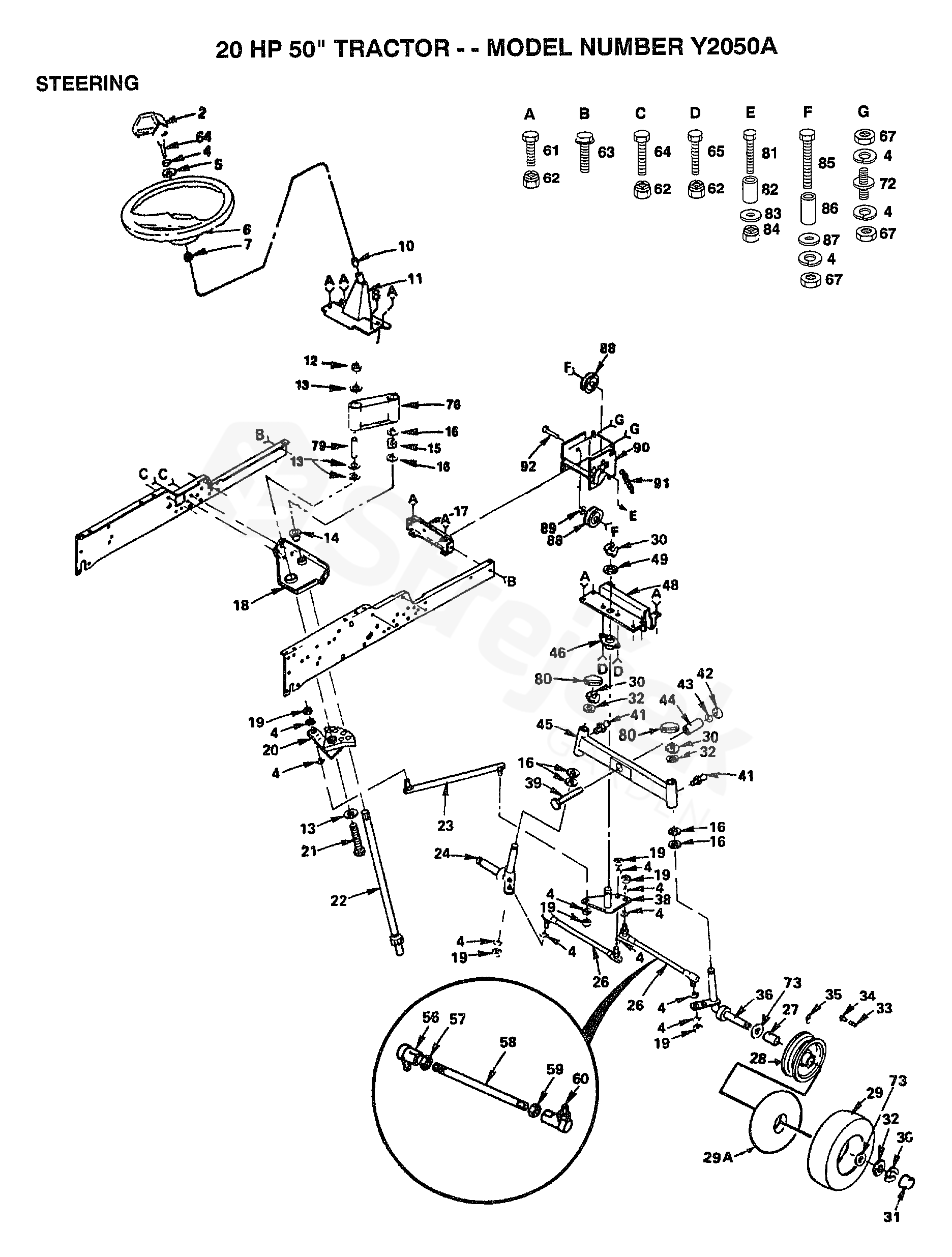

Y2050A Y2050A, 1992-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Y2050A, 1992-01

2	INSERT STEERING	121584X
4	WASHER	810040600
5	WASHER	819133808
6	STEERING WHEEL	532121472
7	ADAPTER	532100711
10	BEARING	532009038
11	SUPPORT	532101274
12	NUT	873680800
13	WASHER	819172610
14	BEARING	532104239
15	RETAINING RING	812000034
16	WASHER	532006266
17	SUPPORT AVANT CHASSIS	532005213
18	BRACKET	532102439
19	NUT	873610600
20	SECTOR ASSY	532120424
21	BOLT	874780880
22	ROD	532104591
23	LINK	532110497
24	SPINDLE	532121168
26	ROD	532121159
27	BEARING	532009040
28	RIM SPROCKET	532106228
29	TIRE	532106230
30	POJISTNÝ KROUŽEK	812000029
31	HUB CAP	532104757
32	PODLOŽKA	532121748
33	CAP VALVE	532059192
34	NIPPLE	532065139
35	NIPPLE	532000278
36	SPINDLE	532121167
38	LEVER	532108137
39	SCREW	874781044
41	ZERK	532006855
42	NUT	873221000
43	WASHER	810041000
46	BEARING	532005292
48	HOLDER	532005284
49	WASHER	819292016
56	JOINT	532121161
57	NUT	873700600
58	ROD	532121162
59	NUT	873360600
60	JOINT	532121160
61	BOLT	874760612
62	MATICE	873680600
63	SCREW	817490612
64	BOLT	874780616
65	BOLT	874760614
67	NUT	873220600
72	PIN RETAINING SCREW	532106615
73	WASHER	532121749
76	BUSHING	532121177
79	PIPE	532120199
80	HUB CAP	532121232
81	SCREW	874930516
82	SPACER	532102933
83	WASHER	819111416
84	MATICE	873680500
85	BOLT	874760636
86	BUSHING	532100644
87	WASHER	819131413
88	PULLEY	532124858
89	WASHER	819133808
90	SUPPORT GALET TENDEUR	532120542
91	SPRING	532007190
92	BOLT	874760632
29A	HOSE	532008134
