Spare parts
Everything for your machines
Spare parts
>
Poulan
>
TRACTORS/RIDE MOWERS
>
9191B89 9191B89, 1998-01
>
CHASSIS & ENCLOSURES
Back to
9191B89
9191B89, 1998-01

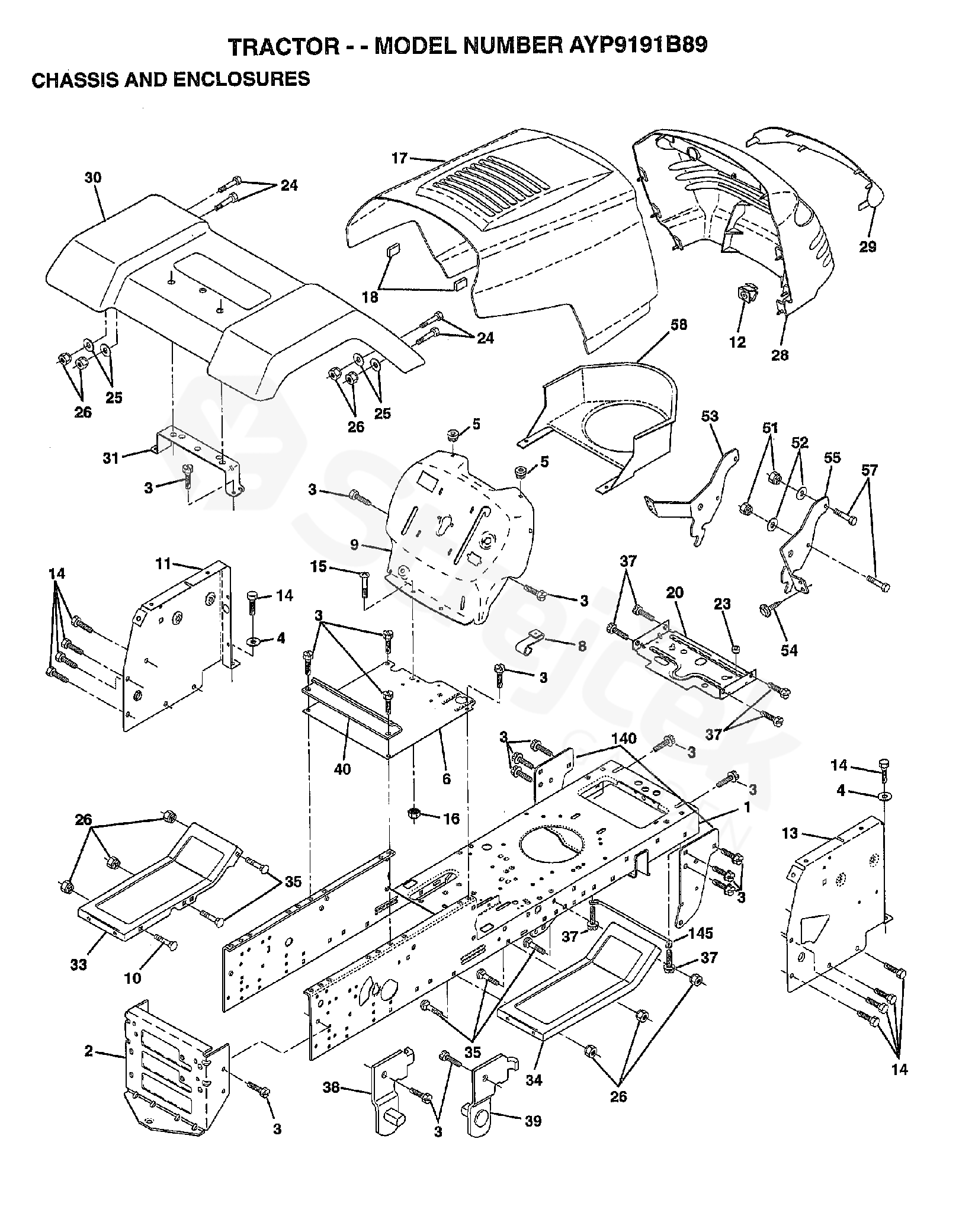

CHASSIS & ENCLOSURES
9191B89
9191B89, 1998-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
9191B89, 1998-01
1
CHASSIS
532160393
2
DRAWBAR
532140356
3
SCREW
817490612
4
WASHER
819131216
5
DAMPER
532155272
6
PLATE
532155923
8
CLIP
532126471
9
REMPLACE PAR 532161937011
532162717
10
BOLT
872140608
11
PLATE
532155927
12
CLIP
532145660
13
PLATE
532157262
14
SCREW
817490608
15
SCREW
874180512
16
NUT
873310500
17
HOOD
532163557
18
DAMPER
532126938
20
PLATE
532156437
23
BUSHING
532124028
24
BOLT
874780616
25
PODLOŽKA
819131312
26
NUT
532062336
28
GRILL
532157373
29
LENS
532140273
31
BRACKET
532139976
33
SUPPORT
532149139
34
SUPPORT
532149140
35
BOLT
872110606
37
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
38
BRACKET
532139886
39
BRACKET
532139887
40
BRACKET
532139977
51
MATICE
873800400
52
PODLOŽKA
819091416
53
BRACKET
532144697
54
SCREW
532161464
55
BRACKET
532144696
57
BOLT
874780412
58
AIR DUCT
532140547
140
BRACKET
532158418
145
SHAFT
532156524
PLUG
532005479
