Spare parts > Poulan > TRACTORS/RIDE MOWERS > AG185H42STA AG185H42STA, 2004-01 > SEAT
Back to
SEAT
AG185H42STA AG185H42STA, 2004-01

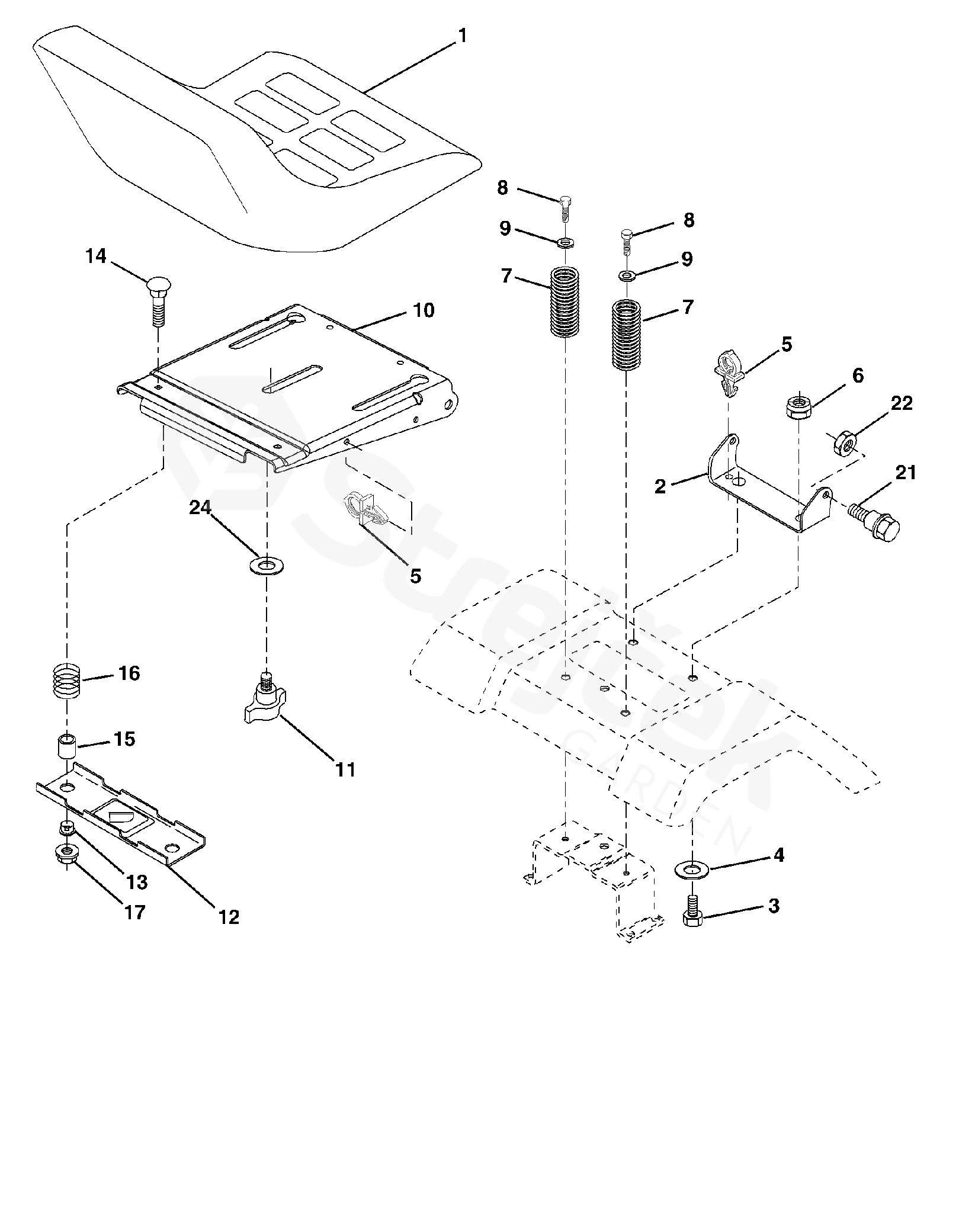

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AG185H42STA, 2004-01
1 SEAT
188704 		532188704
2 BRACKET 532180166
3 SCREW 871110616
4 WASHER 819131610
5 CLIP 532145006
6 NUT 532062336
7 SPRING 532124181
8 SCREW 817000616
9 WASHER 819131614
10 PLATE
180186 		532180186
11 WING NUT 532166369
12 BRACKET 532121246
13 BUSHING 532121248
14 BOLT 872050412
15 SPACER 532134300
16 SPRING 532121250
17 LOCKNUT 532123976
21 BOLT 532171852
22 BRACKET 873800500
24 WASHER 819171912
