Spare parts > Poulan > TRACTORS/RIDE MOWERS > YE1442A YE1442A, 1999-01 > DRIVE
Back to

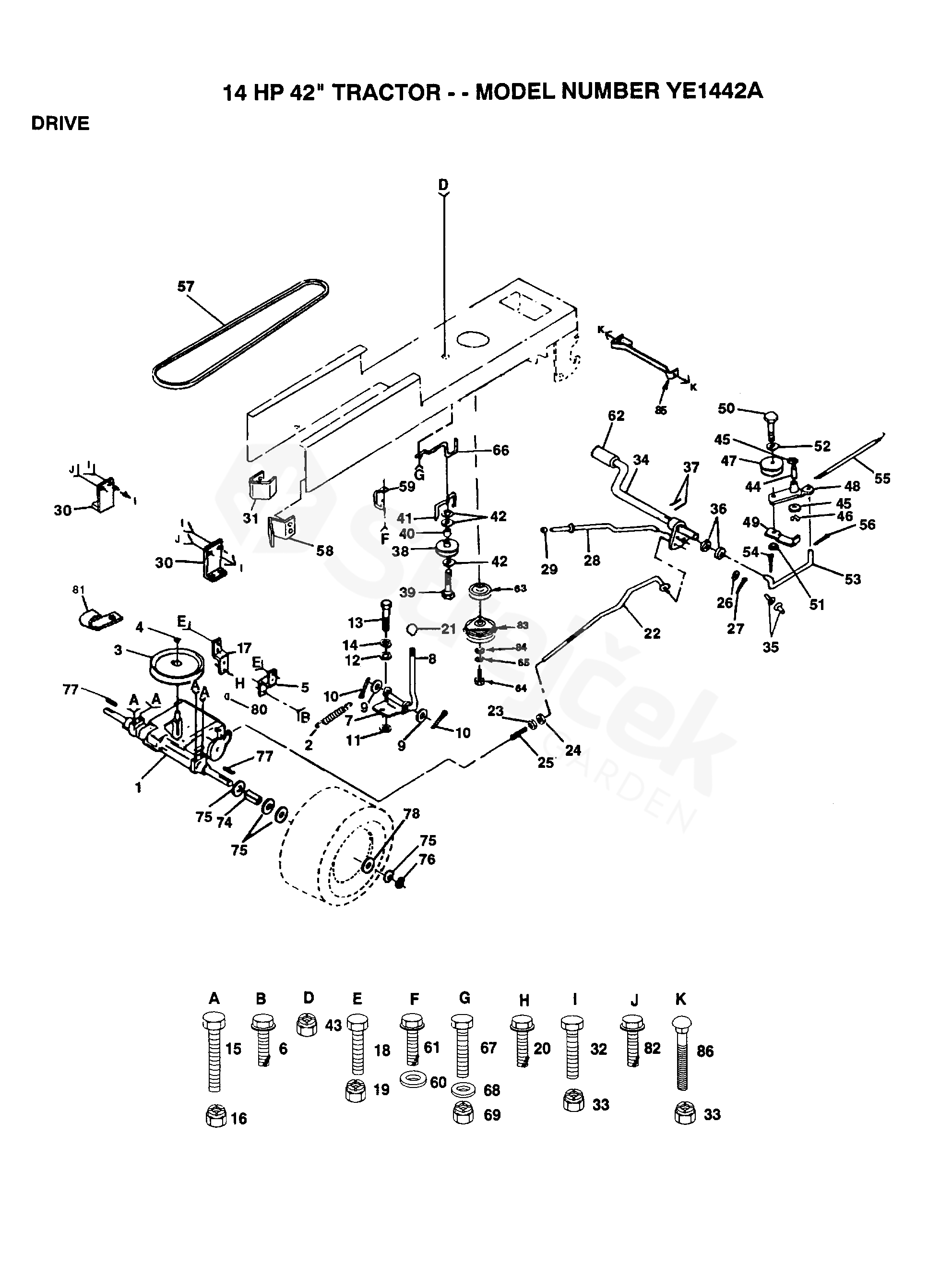

DRIVE
YE1442A YE1442A, 1999-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YE1442A, 1999-01
1 TRANSAXLE 6 SPEED 532124162
2 SPRING 532110422
3 PULLEY 532123666
4 CLIP 812000028
5 BRACKET 532121520
6 SCREW 817490512
7 BRACKET 532130802
8 LEVER 532131679
9 WASHER 819151216
10 SPLIT PIN 876020416
11 WASHER 532105701
12 WASHER 819091210
13 BOLT 871040412
14 WASHER 810040400
15 BOLT 874760540
16 MATICE 873680500
17 BRACKET 532121520
18 BOLT 874760612
19 MATICE 873680600
20 SCREW 817490512
21 KNOB 532121274
22 ROD 532130804
23 NUT 532062336
24 NUT 873350600
25 SPRING 532106888
26 PODLOŽKA 819131316
27 SPLIT PIN 876020412
28 ROD 532133261
29 COVER 532071673
30 BRACKET 532130807
31 GUIDE 532127275
32 BOLT 874760512
33 MATICE 873680500
34 SHAFT 532122424
35 BEARING 532120183
36 WASHER 819211616
37 GOUPILLE NPCREMP:532002882* 532001572
38 PULLEY 532004859
39 BOLT 874760644
40 SPACER 532004470
41 BELT GUIDE 532109070
42 PODLOŽKA 819131312
43 MATICE 873680600
44 BEARING 532105706
45 WASHER 532110812
46 RETAINING RING 812000039
47 PULLEY 532127783
48 GUIDE ROLLER 532123789
49 BELT GUIDE 532123205
50 BOLT 874760624
51 MATICE 873680600
52 PODLOŽKA 819131316
53 LINK 532105710
54 SPLIT PIN 876020412
55 PRUŽINA 532105709
56 SPLIT PIN 876020412
57 V-BELT 532130801
58 KEEPER 532127274
59 STOP L.H. 532104777
60 PODLOŽKA 819131312
61 SCREW 817490612
62 PEDAL RUBBER 532008883
63 PULLEY 532109841
64 BOLT 532125120
65 WASHER 810040700
66 BELT GUIDE 532129921
67 BOLT 874760614
68 PODLOŽKA 819131312
69 MATICE 873680600
74 SPACER 532109502
75 WASHER 532121749
76 RETAINER RING 812000001
77 KEY 532123583
78 PODLOŽKA 532121748
80 WASHER 532002228
81 CLIP 532002751
82 SCREW 817490612
83 CLUTCH 532108218
84 WASHER 532126197
85 HOLDER 532109169
