Poulan
>
TRACTORS/RIDE MOWERS
>
PRGT2046B PRGT2046B, 2001-01
>

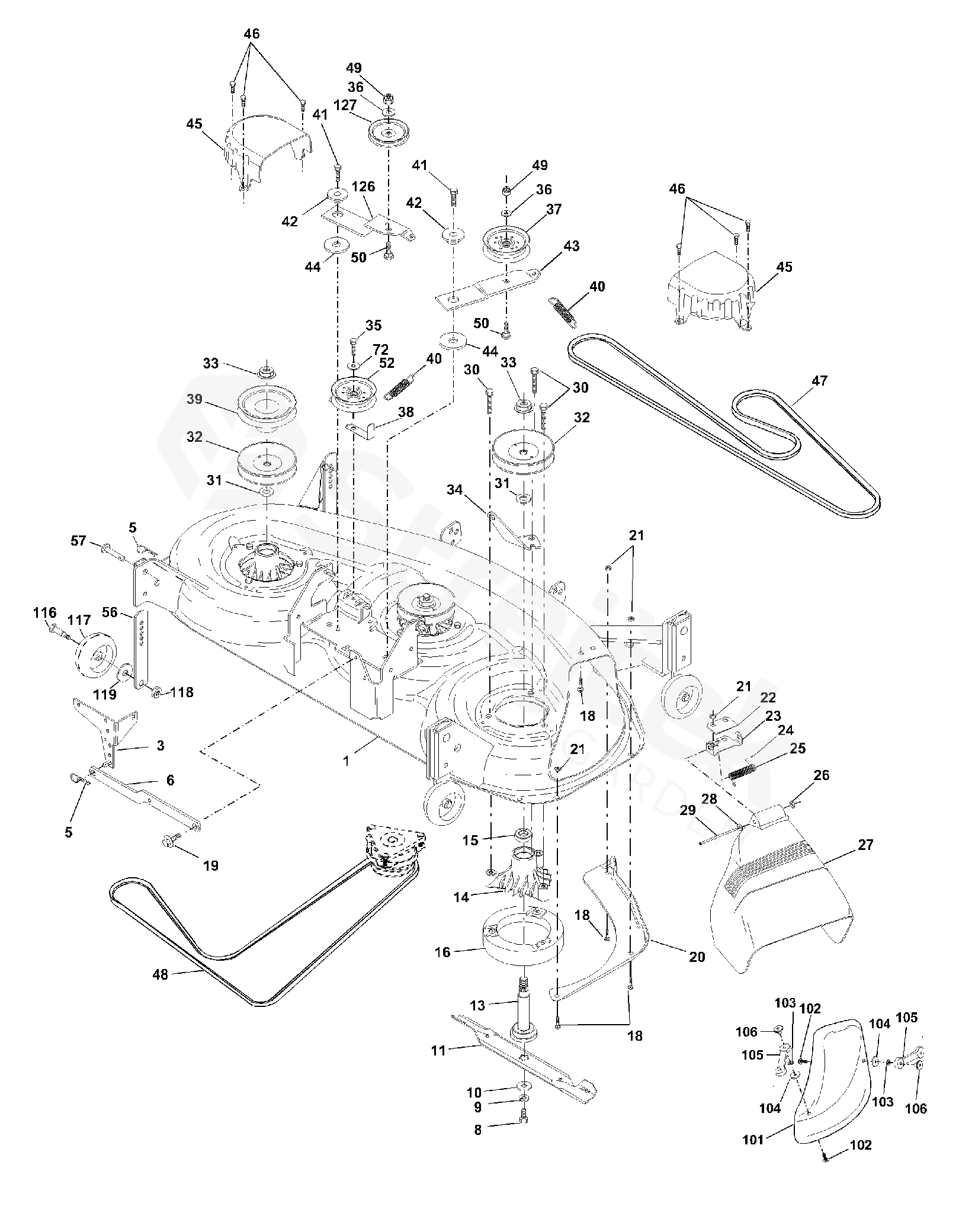

MOWER DECK / CUTTING DECK
Back to
PRGT2046B
PRGT2046B, 2001-01
MOWER DECK / CUTTING DECK
PRGT2046B
PRGT2046B, 2001-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PRGT2046B, 2001-01
3
BRACKET
532138457
5
SPRING
532004939
6
LEVER
532130832
8
BOLT
532850857
9
PODLOŽKA
810030600
10
PODLOŽKA
532140296
11
RIDE ON BLADE
532176084
13
SHAFT
532137553
14
BEARING HOUSING
532137152
15
BEARING
532110485
16
STRIPPER. MANDREL.BLACK
532174493
18
BOLT
532066238
19
SPEC. BOLT
532132827
20
PLATE
532145055
21
MATICE
873680500
23
BRACKET
532131267
24
HUB CAP
532105304
25
SPRING
532149287
26
MATICE
532110452
27
DEFLECTOR
532172514
28
WASHER
819111016
29
HRÍDEL
532131491
30
SCREW
532157722
31
WASHER
532129963
32
PULLEY
532173434
33
NUT
532178342
34
BRACKET
532144945
35
SCREW
817490628
36
PODLOŽKA
819131316
37
PULLEY
532173438
38
REPL BY 532 1560-86
532173900
39
REPL BY 532 1449-17
532173899
40
SPRING
532137273
41
SCREW
817060620
42
SPACER
532122052
43
TENSIONER
532144949
44
WASHER
532133943
45
COVER
532145059
46
SCREW
532137729
47
BELT
532144959
48
BELT
532148763
49
MATICE
873680600
50
BOLT
872110612
52
PULLEY
532173901
56
BAR
532155986
57
PIN RETAINING SCREW
532156941
72
WASHER
819131616
101
DEFLECTEUR BROYAGE 145579
532145579
102
SCREW
871081010
104
WASHER
819061216
105
LATCH
532160793
106
NUT
532124005
116
SCREW
532137644
117
WHEEL
532133957
118
NUT
532005394
119
PODLOŽKA
819121414
126
LEVER
532144948
127
PULLEY
532173902
MANDREL
532143651
