Spare parts > Poulan > TRACTORS/RIDE MOWERS > YGT2046C YGT2046C, 1998-01 > DRIVE
Back to

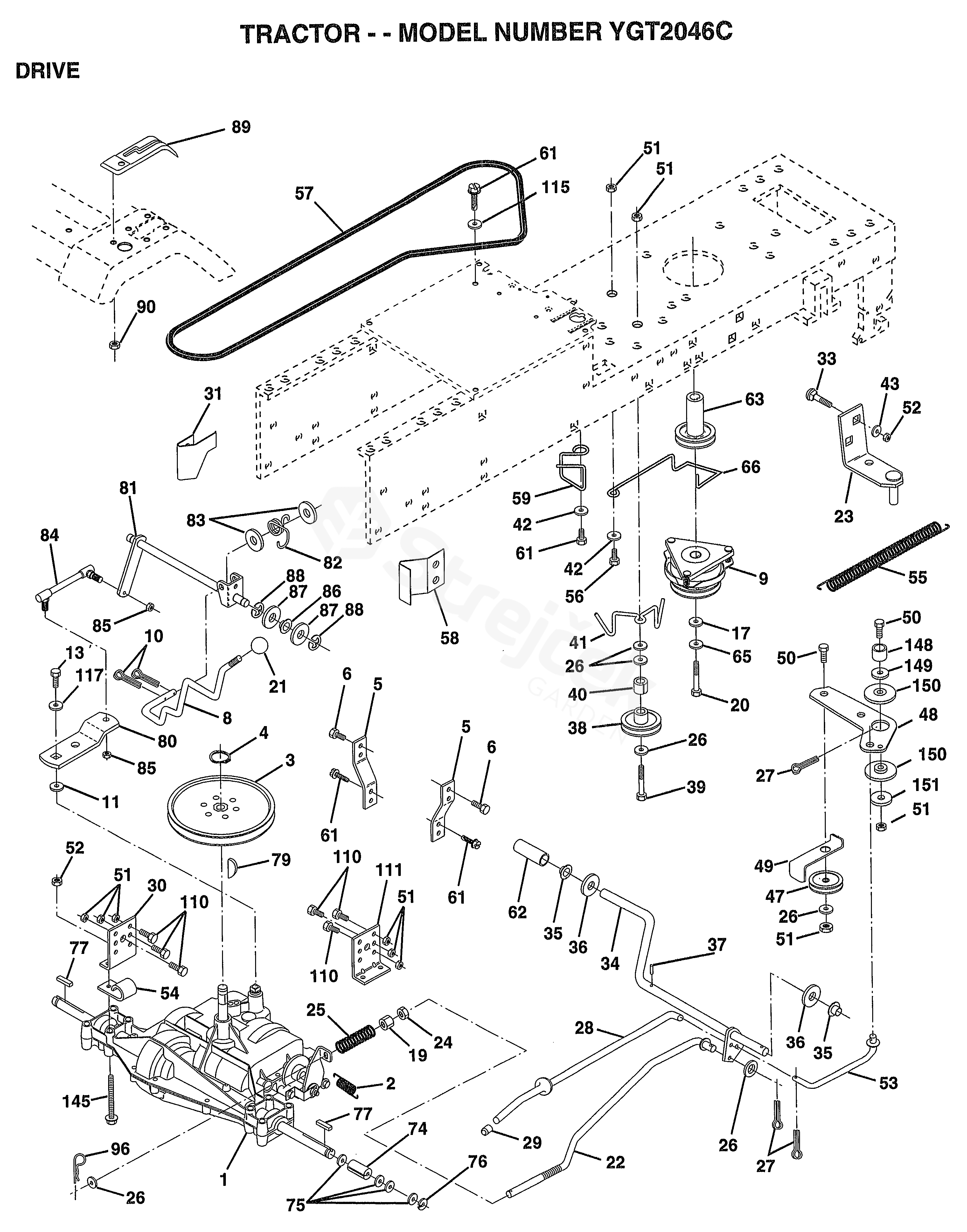

DRIVE
YGT2046C YGT2046C, 1998-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YGT2046C, 1998-01
2 SPRING 532110422
3 PULLEY 532121327
4 RING 812000004
5 STRAP TORQUE 532123787
6 SCREW 817490512
8 ROD 532141002
9 CLUTCH, ELECTRIC 532137140
10 SPLIT PIN 876020416
11 WASHER 532105701
13 BOLT 871040412
17 WASHER 532126197
19 NUT 532062336
20 BOLT 871170768
21 KNOB 532121274
22 TIGE DE CDE DE FREIN 532145340
23 BRACKET 532137141
24 NUT 873350600
25 SPRING 532126909
26 PODLOŽKA 819131316
27 SPLIT PIN 876020412
28 ROD 532145204
29 COVER 532071673
30 BRACKET 532123780
31 HOLDER 532123791
33 BOLT 872140506
34 SHAFT 532155071
35 BEARING 532120183
36 WASHER 819211616
37 GOUPILLE NPCREMP:532002882* 532001572
38 PULLEY 532004859
39 BOLT 874760644
40 SPACER 532004470
41 TENSIONER 532154777
42 PODLOŽKA 819131312
43 WASHER 819111012
47 PULLEY 532127783
48 GUIDE 532154407
49 BELT GUIDE 532123205
50 BOLT 874760624
51 MATICE 873680600
52 MATICE 873680500
53 LINK 532105710
54 CLIP 532126471
55 PRUŽINA 532105709
56 BOLT 874760620
57 BELT 532163817
58 HOLDER 532123792
59 STOP L.H. 532104777
61 SCREW 817490612
62 PEDAL RUBBER 532123533
63 ENGINE PULLEY 532123795
65 WASHER 810040700
66 TENSIONER 532154778
74 SPACER 532108097
75 PODLOŽKA 532123800
76 E-CLIP 812000053
77 CLAVETTE PARALLELE 9396E 532009396
79 WASHER 532002228
80 LEVER 532123794
82 TORSION SPRING 532123782
83 WASHER 819171216
84 BIELLETTE A ROTULES 155189 532155189
85 NUT 532150360
86 BUSHING 532157480
87 WASHER 819212016
88 CLIP 812000008
89 GRILLE DE VITESSESS 139992 532139992
90 NUT 532124346
110 BOLT 874760612
111 BRACKET 532123776
115 WASHER 819132203
117 WASHER 819091216
145 BOLT 874490540
148 GUIDE 532159103
149 SPACER 532122052
150 BUSHING 532150935
151 PODLOŽKA 819133210
