Spare parts > Poulan > TRACTORS/RIDE MOWERS > YGT2046D YGT2046D, 1999-01 > DRIVE
Back to

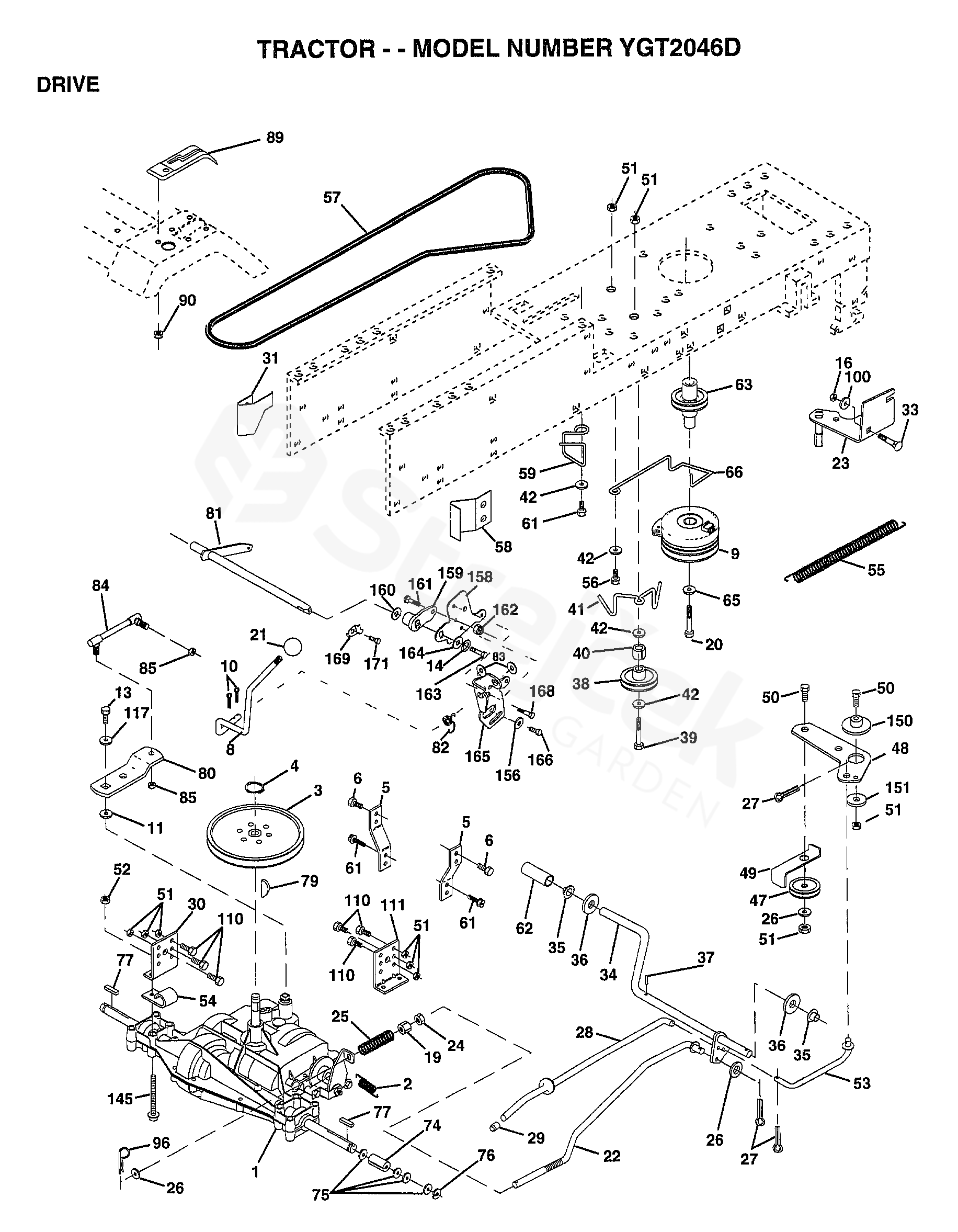

DRIVE
YGT2046D YGT2046D, 1999-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YGT2046D, 1999-01
2 SPRING 532110422
3 PULLEY 532121327
4 RING 812000004
5 STRAP TORQUE 532123787
6 SCREW 817490512
8 LEVER 532166020
9 CLUTCH 532160889
10 SPLIT PIN 876020416
11 WASHER 532105701
13 BOLT 871040412
14 WASHER 810040400
16 BRACKET 873800500
19 NUT 532062336
20 BOLT 871170768
21 KNOB 532121274
22 TIGE DE CDE DE FREIN 532145340
23 CLUTCH MTG BRACKET 532152485
24 NUT 873350600
25 SPRING 532126909
26 PODLOŽKA 819131316
27 SPLIT PIN 876020412
28 ROD 532145204
29 COVER 532071673
30 BRACKET 532123780
31 HOLDER 532123791
33 BOLT 872140506
34 SHAFT 532155071
35 BEARING 532120183
36 WASHER 819211616
37 GOUPILLE NPCREMP:532002882* 532001572
38 PULLEY 532104360
39 BOLT 874760644
40 SPACER 532004470
41 TENSIONER 532165838
42 PODLOŽKA 819131312
47 PULLEY 532127783
48 GUIDE 532154407
49 BELT GUIDE 532123205
50 BOLT 874760624
51 MATICE 873680600
52 MATICE 873680500
53 LINK 532105710
54 CLIP 532126471
55 PRUŽINA 532105709
56 BOLT 874760620
57 BELT 532163817
58 HOLDER 532123792
59 STOP L.H. 532104777
61 SCREW 817490612
62 PEDAL RUBBER 532123533
63 PULLEY 532145868
65 WASHER 810040700
66 TENSIONER 532154778
74 SPACER 532108097
75 PODLOŽKA 532123800
76 E-CLIP 812000053
77 CLAVETTE PARALLELE 9396E 532009396
79 WASHER 532002228
80 LEVER 532123794
82 TORSION SPRING 532123782
83 WASHER 819171216
84 BIELLETTE A ROTULES 532166230
85 NUT 532150360
89 CONSOLE.SHIFT.6SP.GTV.BLACK 139992X428 139992X428
90 NUT 532124346
96 CLIP 532004497
100 PODLOŽKA 819111216
110 BOLT 874760612
111 BRACKET 532123776
117 WASHER 819091216
145 BOLT 874490540
150 BUSHING 532165850
151 PODLOŽKA 819133210
156 WASHER 532166002
158 BRACKET 532165589
159 LEVER 532165494
160 WASHER 819292016
161 1/4-20X3/4 CARR BLT 872140406
162 NUT 873680400
163 BOLT 874780416
164 WASHER 819091010
165 BRACKET 532165623
166 SCREW 532166880
168 BOLT 532165492
169 RETAINER 532165581
171 SCREW 817490608
