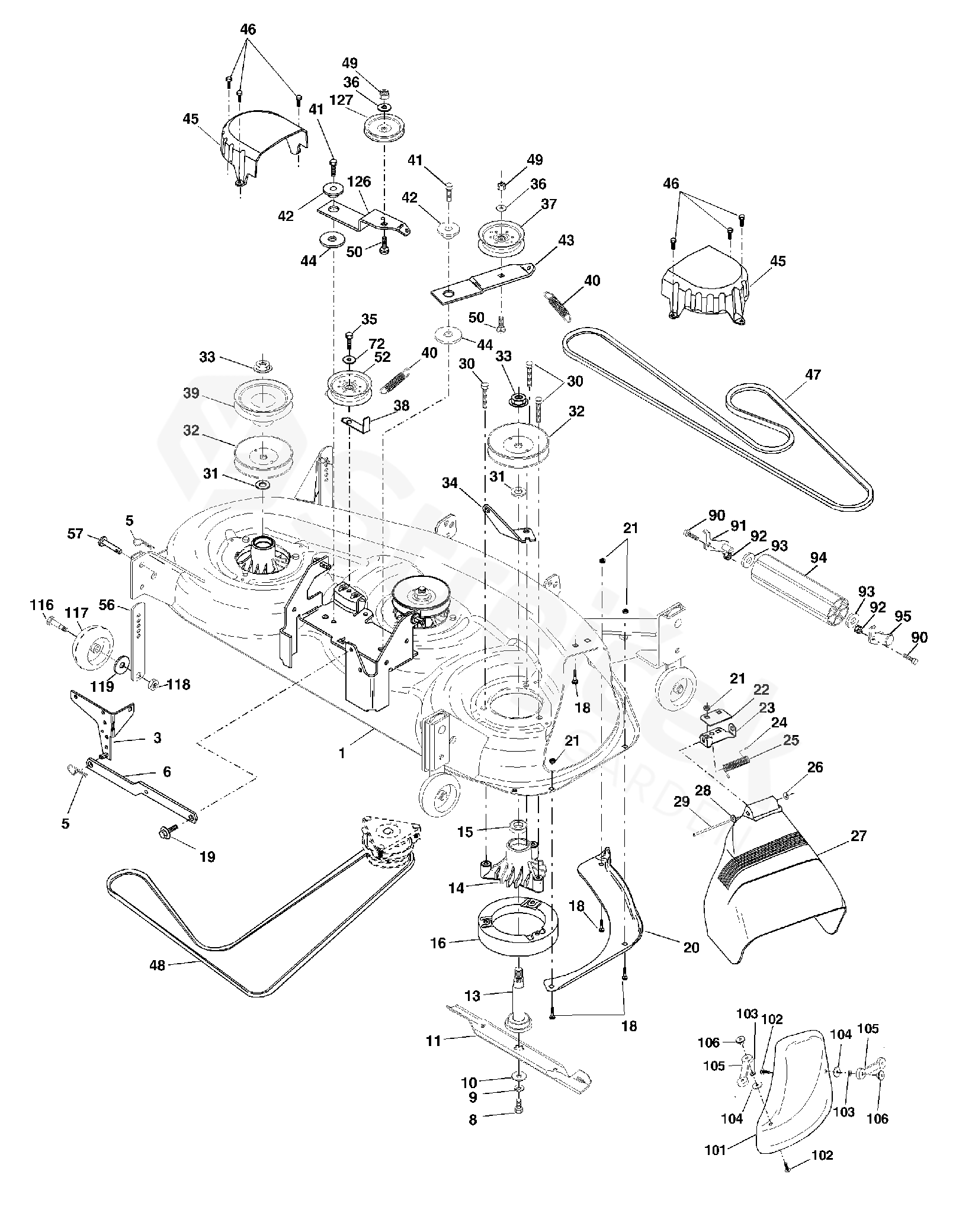

DPR20H46STB DPR20H46STB, 2000-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For DPR20H46STB, 2000-01

3	BRACKET	532138457
5	SPRING	532004939
6	LEVER	532130832
8	BOLT	532850857
9	PODLOŽKA	810030600
10	PODLOŽKA	532140296
11	BLADE	532170698
12	BEARING	532129895
13	SHAFT 12	532137553
14	BEARING HOUSING	532137152
15	BEARING	532110485
16	STRIPPER LT10/36D	532128961
18	BOLT	532066238
19	SPEC. BOLT	532132827
20	PLATE	532145055
21	MATICE	873680500
24	HUB CAP	532105304
25	SPRING	532149287
26	MATICE	532110452
27	DEFLECTOR	532172514
28	WASHER	819111016
29	HRÍDEL	532131491
30	SCREW	532157722
31	WASHER	532129963
32	PULLEY	532173434
33	NUT	532137266
35	SCREW	817490628
36	PODLOŽKA	819131316
37	PULLEY	532173438
38	REPL BY 532 1560-86	532173900
39	REPL BY 532 1449-17	532173899
40	SPRING	532137273
41	SCREW	817060620
42	SPACER	532122052
44	WASHER	532133943
45	COVER	532145059
46	SCREW	532137729
47	BELT	532144959
48	BELT	532148763
49	MATICE	873680600
50	BOLT	872110612
51	GASKET	532153390
52	PULLEY	532173901
56	BAR	532155986
57	PIN RETAINING SCREW	532156941
72	WASHER	819131616
90	BOLT	874760614
91	BRACKET	532132274
92	NUT	532062336
93	WASHER	819171416
94	ROLLER	532132264
95	BRACKET	532132273
101	DEFLECTEUR BROYAGE 145579	532145579
102	SCREW	871161010
103	LOCKWASHER	532001863
104	WASHER	819061216
105	LATCH	532160793
106	NUT	532124005
116	SCREW	532137644
117	WHEEL	532133957
118	NUT	532005394
119	PODLOŽKA	819121414
127	PULLEY	532173902
	MANDREL	532143651
