Spare parts > Poulan > TRACTORS/RIDE MOWERS > GTH2654 GTH2654, 96025000101, 2005-01 > MOWER DECK / CUTTING DECK
Back to

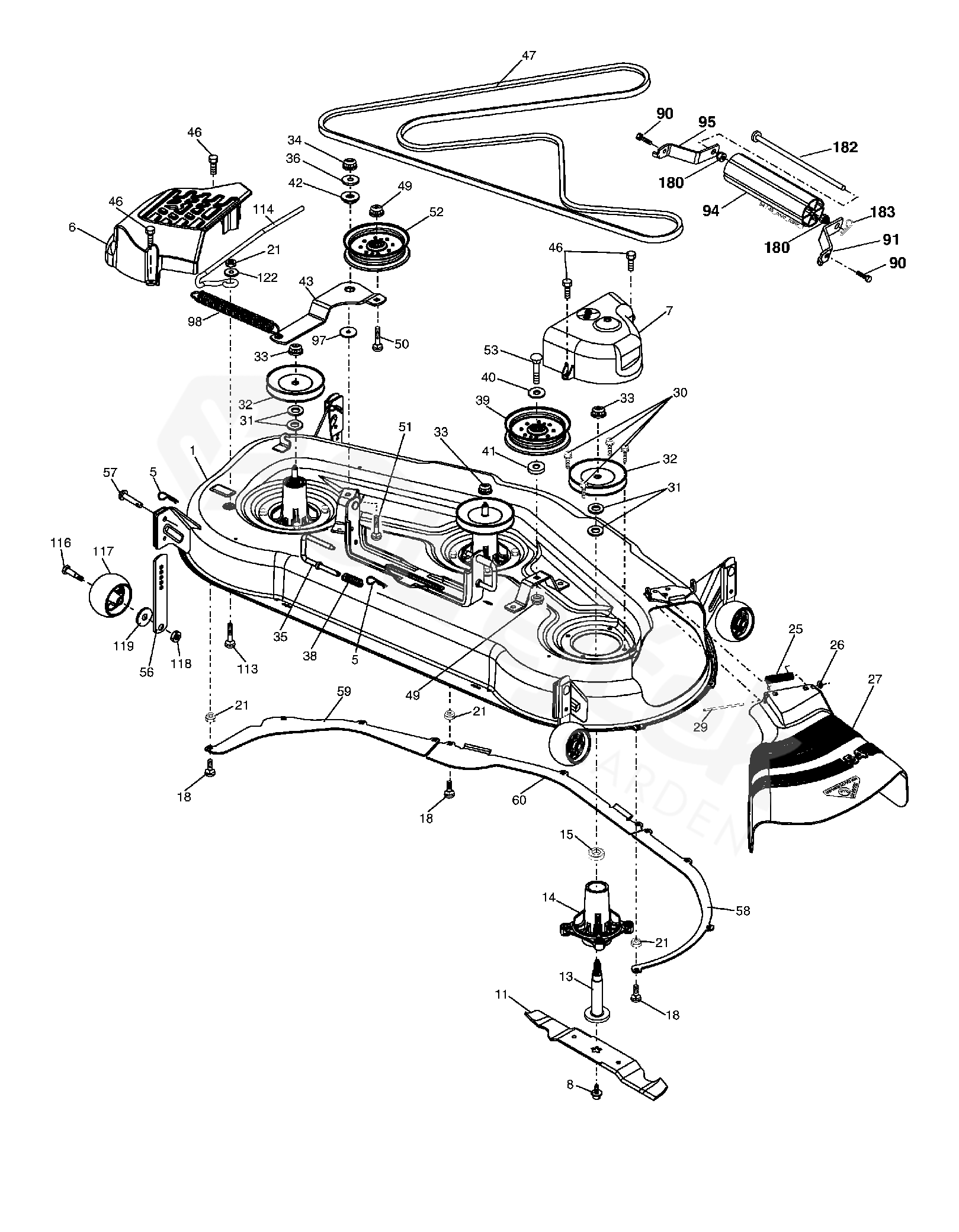

MOWER DECK / CUTTING DECK
GTH2654 GTH2654, 96025000101, 2005-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GTH2654, 96025000101, 2005-01
1 DECK.PNT.WLDMENT.54"
532196838 		532196838
5 RETAINING RING
532124670 		532124670
6 COVER
532187297 		532187297
7 COVER
532188187 		532188187
8 BOLT
532174365 		532174365
11 BLADE
532187254 		532187254
13 SHAFT ASM MANDREL
532187291 		532187291
14 BEARING HOUSING
532187281 		532187281
15 BEARING
532110485 		532110485
18 BOLT
872140505 		872140505
21 MATICE
873680500 		873680500
25 SPRING
532178102 		532178102
26 MATICE
532110452 		532110452
27 DEFLECTOR
532188938 		532188938
29 HRÍDEL
532131491 		532131491
30 SCREW
532173984 		532173984
31 PODLOŽKA
532187690 		532187690
32 PULLEY
532173436 		532173436
33 NUT
532178342 		532178342
34 MATICE
873680600 		873680600
35 PIN SUSPENSION REAR
532188635 		532188635
36 PODLOŽKA
819131316 		819131316
38 SPRING COMPRESSION PULL
532188657 		532188657
39 IDLER PULLEY
532187284 		532187284
40 PODLOŽKA
819131312 		819131312
41 WASHER
819132203 		819132203
42 SPACER
532122052 		532122052
43 LEVER
532196216 		532196216
46 SCREW
532137729 		532137729
47 V-BELT
532191273 		532191273
49 MATICE
873900600 		873900600
50 BOLT
872110616 		872110616
51 BOLT 872110610
52 IDLER PULLEY
532188460 		532188460
53 BOLT 874780636
56 BAR
532155986 		532155986
57 PIN RETAINING SCREW
532156941 		532156941
58 BAFFLE
532187342 		532187342
59 BAFFLE LEFT
532187344 		532187344
60 BAFFLE CENTER 54" MOWER
532187607 		532187607
90 BOLT
874760516 		874760516
91 BRACKET
532180535 		532180535
94 ROLLER
532176066 		532176066
95 BRACKET
532180534 		532180534
97 PODLOŽKA 819133210
98 SPRING CLUTCH DRIVE
532187282 		532187282
113 BOLT
872110508 		872110508
114 ROD TENSION RELIEF
532187556 		532187556
116 BOLT
532193406 		532193406
117 KOLO
532174873 		532174873
118 MATICE
873930600 		873930600
119 PODLOŽKA
819121414 		819121414
122 BUSHING
532187557 		532187557
180 BRACKET
873800500 		873800500
182 ROD ROLLER NOSE
532179127 		532179127
183 CLIP
532163552 		532163552
HOUSING
"532196099, (Std. deck order separately nose roller components key nos. 90, 91, 94, 95, 180, 182, 183)" 		532196099
